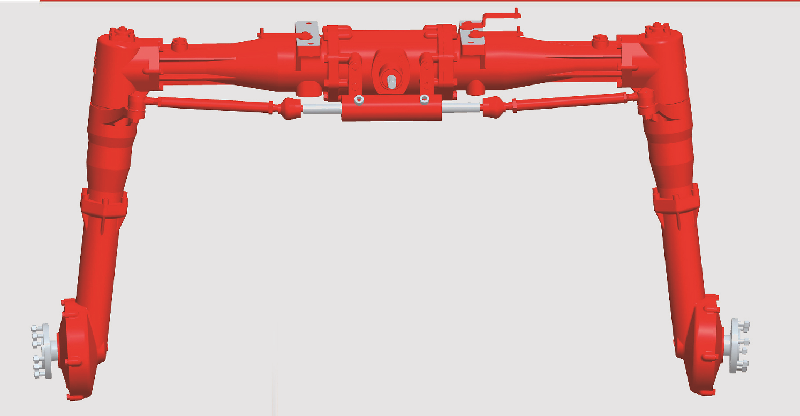

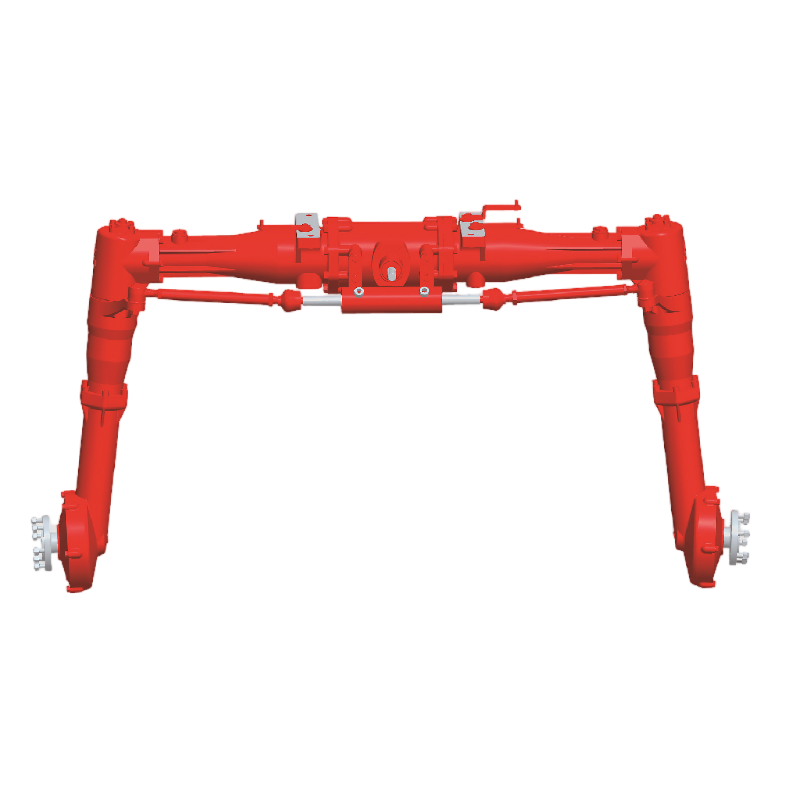

rear drive axle
1. Three-stage gearbox provides various gear ratios.
2. Main gearbox with Gleason bevel gears provides high efficiency and low noise.
3. The intermediate and final output adopt straight tooth bevel gears, rational and compact structure.
4. The side transmission shaft increases ground clearance, improving cross-country ability.
5. High-grade malleable cast iron bodies provide high load-bearing capacity and rigidity.
6. Internally installed wet brake ensures high torque and reliability.
7. Differential lock improves performance on muddy roads.
8. Suitable for self-propelled sprayers with power of 25 - 35 PS.
MAIN CHARACTERISTICS:
This product is specially designed for 25-35PS self-propelled sprayers and has many advantages. A three -stage gearbox provides various gear relations to satisfy various operational requirements. The main gearbox with conical gears of Gleason is highly efficient and low. The design of the direct conical transmission is compact and rational. The lateral transmission shaft increases the road clearance and increases cross -country ability. The case made of high -quality multi -iron cast iron has great bearing capacity and high rigidity. Built -in wet brake provides reliable braking. Differential blocking helps easily overcome dirty roads. This is a great and reliable choice for sprayers.

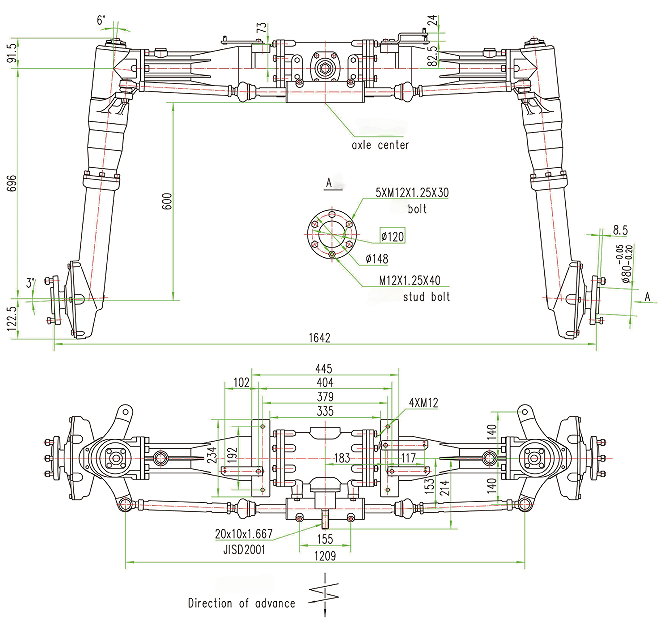

MAIN TECHNICAL PARAMETERS：
General transmission coefficient |
21.43 |
The angle of rotation |
25° |
The stroke of the steering cylinder |
67.5mm. |
Max. working pressure |
16Mpa. |
Oil request for the leading bridge (API standard) |
GL-5; 85W/90 transmission oil (above -12 ° C) |
PARAMAREMEN |
M=1.667 Z=10 X=0.8. |
