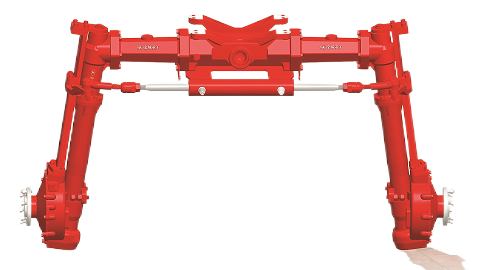

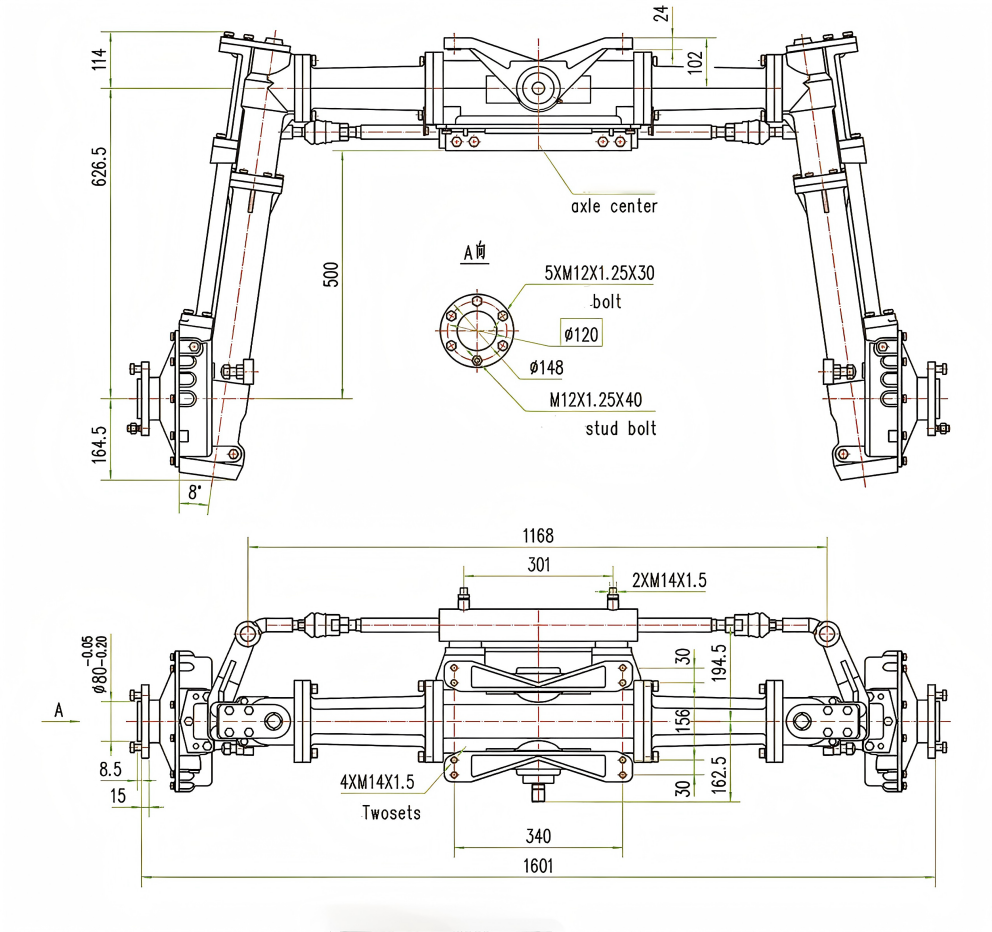

Front axle of the sprayer
1.The two-stage gear system provides a variety of speeds.
2.The main gearbox with Glyson conical gear has high efficiency and low noise.
3.Intermediate transmission and final output use a spur gear with rational and compact design.
4.The added structure of the side drive axle improves ground clearance, expanding off-road capability.
5.The entire supporting housing (bearing housing), made of high-quality pigelated cast iron, has great load-bearing capacity and rigidity.
6.The equipped front and rear dual suspension frame (double pivot design) lowers the vehicle's center of gravity, improving its safety and reliability.
7. Suitable for self-propelled sprayers with a power of 14—25 horsepower.
MAIN CHARACTERISTICS:
It uses a three-stage gear system that allows for flexible switching between different gear ratios and precise adaptation to various work scenarios.The main gearbox is equipped with Gleason conical gears, which are distinguished by high transmission efficiency, low noise level, energy saving, and comfort.The direct conical gear has a compact design that simplifies its maintenance and ensures stable power transmission.The design of the side driveshaft increases ground clearance, allowing easy navigation through difficult terrain.The body, made of high-quality cast iron, is sturdy, durable, and has high load-bearing capacity.Front and rear dual swivel frames lower the center of gravity, making driving and operation safer.It is suitable for models with a power range of 14.5 - 25 PS.
Main Technical Parameters:
Overall overall gear ratio |
18.472 |
Wheel rotation angle |
20° |
Steering cylinder movement |
65mm. |
Max.working pressure |
16Mpa. |
Requirements for oil for the drive axle (API classification) |
GL-5: transmission oil 85W/90 (use at temperatures above -12 ° C) GL-5: transmission oil 80W/90 (use at temperatures above -26°C) |
Input shaft spline parameter |
M=1.25 Z=18 X=0.8. |
