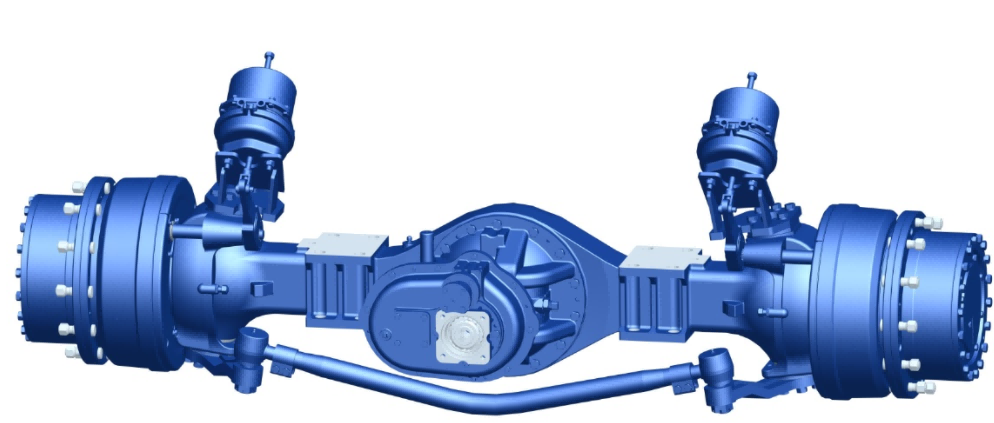

Steering axle of the mixing machine
1. Equipped with a two-stage gearbox, it offers multiple sizes of interfaces.
2. The main gearbox, which adopts Gleason bevel gears, features high transmission efficiency and silent operation.
3. The NGW-style planetary gearbox is compact, reliable, and runs smoothly.
4. Cast steel axle housing provides high bearing capacity and rigidity.
5. A two-pad brake is used, which combines the functions of service and parking brakes.
6. It is suitable for mixers weighing from 21 to 23 tons.
Introduction:
Suitable for 21 - 23 ton mixers, this unit is equipped with a two-speed gearbox with multiple interface sizes. Its main gearbox with Gleason bevel gears ensures high efficiency and quiet operation. The compact and reliable planetary gear of the NGW type works in tandem with a cast steel axle housing, which guarantees high load-bearing capacity and rigidity. The dual-pad brake combines operating and parking functions to provide comprehensive performance.

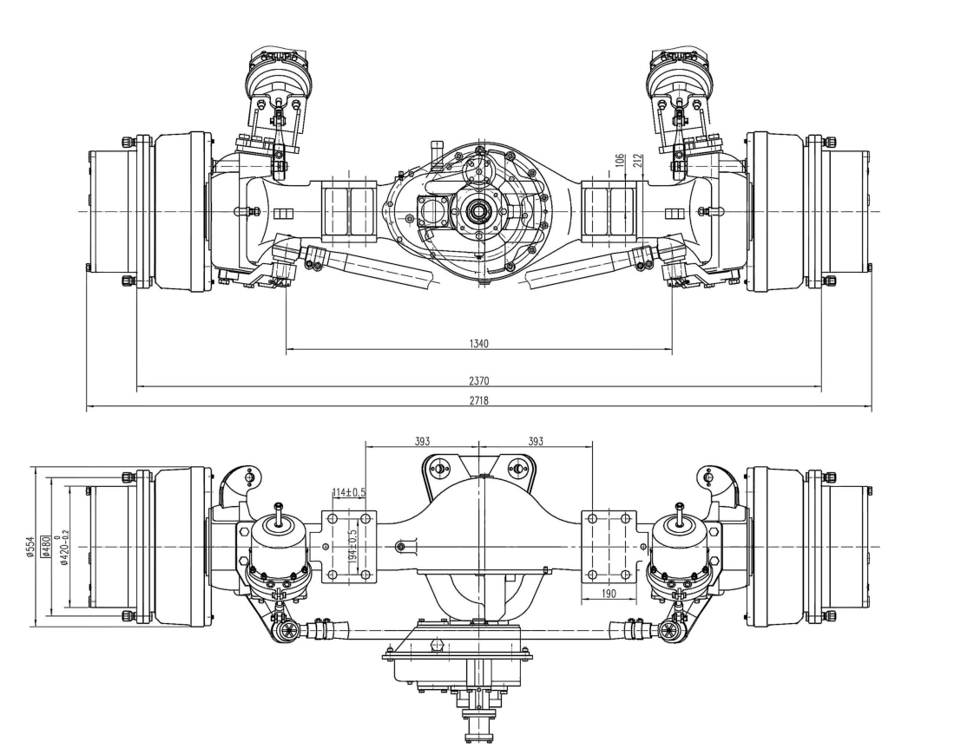

Main Technical Parameters:
Overall overall gear ratio |
25.9 |
|
Reduction Factor |
l1=1 |
I2=7.237 |
Load on one bridge |
13000Kg. |
|
Maximum input torque |
712.5N.m |
|
Rotation |
±25° |
|
Air pressure in the brake system |
0.6-0.8Mpa |
|
Operating Braking Torque |
23000N.m |
|
Moment of braking at a stop |
10000N.m |
|
Air pressure during shifting |
0.6-0.8Mpa |
|
Shift Trip |
17.5±1 |
|
