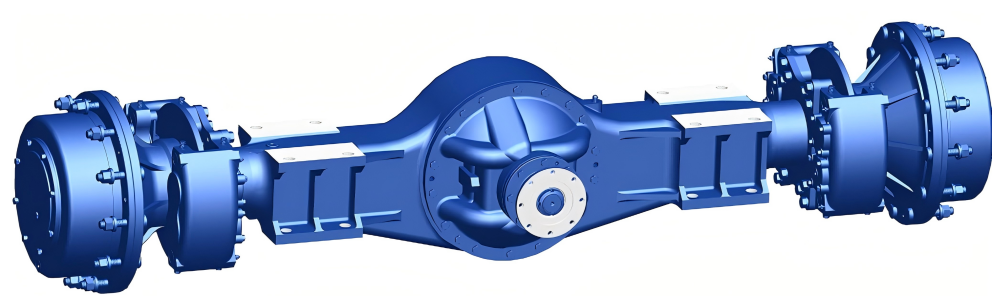

Tractor drive axle 430 hp

1. Product overview

Tractor drive axles are designed for heavy articulated tractors with 380-430 horsepower. Articulated tractors differ significantly from traditional tractors in design and operating principle: traditional tractors use a solid frame, usually with small front wheels and large rear wheels, and steering is carried out by deflecting the front wheels; while articulated tractors have two independent front and rear frames, each with the same specifications. Powerful drive axles and wheels located in the middle of the articulated joints and hydraulic cylinders create the relative angles of the front and rear frames, which provide steering flexibility. When the engine power exceeds 200 horsepower, the articulated design has more advantages in terms of traction, stability and maneuverability. To ensure the high power of the articulated tractor and its unique frame design, the front and rear axles must have a rigid drive axle, which is different from the traditional configuration tractor “steering axle and drive axle”.

Our 430hp tractor drive axle is developed on the basis of the advanced construction equipment platform, inheriting its key characteristics - high load-bearing capacity and high torque. It can easily withstand the continuous transmission of high torque on powerful tractors and heavy loads in various complex working conditions in harsh environments.

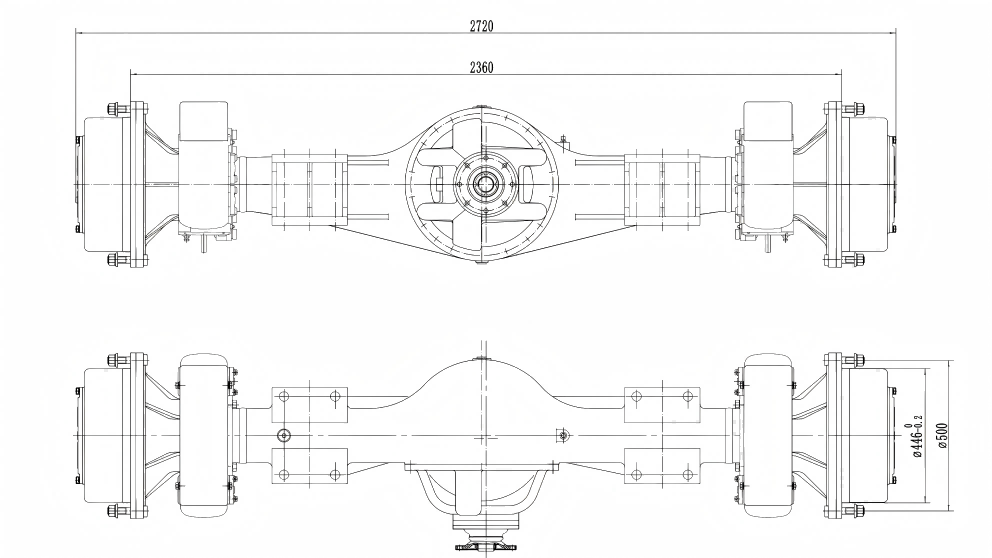

Main technical parameters:

2. Product Features

Well-thought-out platform, reliability and durability:

Tractor drive axle 430 hp. Designed based on a mature platform that has been proven by the market, has a fully proven and reliable design, and features superior product quality and stability. The transmission system adopts a classic two-stage braking system. When achieving high torque, it provides a variety of gear ratio options that can flexibly meet the different speed and traction needs of different manufacturers.

Improvement of design and modernization of the frame:

Considering the severe traction conditions unique to high-performance tractors, our technical team, using a large amount of field data collected and engineering experience, carried out special strengthening of key structural elements of the tractor drive axle. By locally thickening and optimizing the design of high-stress zones and impact-resistant connecting parts, the overall strength and fatigue life of the axle housing is significantly increased. Of particular importance is that in order for the gear system to withstand the severe challenges of constant high torque, we adopted high quality Oerlikon bevel gears and other high gear bevel gears into the main gearbox. Compared with ordinary Gleason gears, Olikang gears have higher bending strength, better meshing stability and longer service life. Although the initial cost is a little higher, their superior reliability provides users with a lower cost of use in the long run.

Professional coating, effective anti-corrosion coating：

We attach great importance to the appearance, quality and long-term weather resistance of our products. All body parts are carefully polished and the surface is treated with a special post-processing cleaning line to completely remove burrs and greatly improve the adhesion of the coating. The paint is sprayed on a special coating line under constant temperature and humidity. Specially selected, highly effective anti-corrosion coatings are used, and the formula is constantly optimized taking into account environmental influences to ensure a dense and beautiful paint film, as well as high anti-corrosion and chemical resistance. Eliminate moisture, dirt, fertilizer and other types of erosion and ensure long-term product life.

Safe braking, easy maintenance：

Tractor drive axle 430 hp. clamping disc brake with modern technology, which ensures large braking torque and stable and reliable braking. Specially to ensure the performance of tractors operating in harsh environments, we have installed protective covers for the brake system, which can effectively prevent foreign objects such as sediment and gravel from entering, and ensure long-term braking performance and operating safety. The brake assembly adopts products of famous domestic brands with stable productivity; The friction linings are made from high quality composite materials with excellent wear resistance and heat dissipation. Providing reliable protection, the entire brake system is designed to make inspection and component replacement easy, striking a balance between high performance and low maintenance costs.

3. Product application

As one of the first manufacturers in China to mass-produce heavy-duty drive axles, we have a deep understanding of tractor drive axle operating conditions and over a decade of experience serving the export market. We strive to provide customers with not only products but also thoughtful drive solutions that meet and optimize requirements.

At present, the 430hp tractor drive axle is stably supplied wholesale to Xuzhou Kaier Agricultural Equipment Co., Ltd., a leading domestic agricultural machinery manufacturer, and is widely used in the rear axles of its fixed high-power tractors, as well as the front and rear axles of articulated high-power tractors.

Xuzhou Kaier specializes in the research, development and production of high-quality agricultural machinery. Xuzhou Kaier series of 100-440 horsepower wheeled tractors innovatively combine the design concept of construction machinery, adopt one-piece frame and unit layout, and optimize the integration and use of finished parts in various fields, forming a product with strong structure, wide range of applications and excellent reliability, which has quickly gained recognition in the market. Kyle chose our drive axle precisely based on the comprehensive solution we provided and proven product stability. Our drive axles have been tested for a long time under harsh operating conditions in Xinjiang, Northeast China and other places where host is located, and their performance quality has no feedback, which fully confirms their excellent performance. At the 2025 China International Agricultural Machinery Exhibition, Xuzhou Kyle showed many prototypes of high-power tractors, each using our drive axles, which is a strong proof of the value and reliability of our products.

4. Intelligent production system

At present, the company has a complete modern production line, such as automatic drive axle welding line, intelligent planetary wheel frame processing line, intelligent main gear housing production line, intelligent differential housing production line, special axle arm/jumper housing production line, ultrasonic automatic cleaning line, drive axle assembly line and more. coating production line.

5. Comprehensive quality control system

5S management is strictly implemented on the production site, with clear regional division and clear identification. All equipment strictly adheres to regular maintenance and preventive maintenance plans, ensuring a stable production base.

Incoming Material Inspection: All outsourced raw materials and components must be inspected before being stored. Unqualified products are strictly isolated to prevent them from entering the production process.

Process quality control:

The flow of production materials strictly follows the “first in, first out” principle, and each technological process is carried out and inspected in accordance with standardized technological documents.

Modern testing equipment:

equipped with precision instruments such as metallographic microscopes, microhardness testers, ultrasonic flaw detectors, three-dimensional measuring instruments, etc., to control the microstructure of materials, heat treatment hardness, internal defects and dimensional accuracy in all directions.

Checking the functionality of the entire bridge:

Each drive axle assembly must simulate real-life operating conditions on a dedicated test bench, undergo a series of performance tests such as noise, temperature rise, sealing and transmission efficiency, and then leave the factory after passing the test.

6. Professional technical support

The company has a professional foreign trade and technical support team, which can effectively and professionally assist customers in product selection and mating. According to special operating conditions and individual needs, we can quickly arrange technical experts to conduct in-depth exchanges with customers (online or offline), accurately analyze operating conditions, load spectrum and performance requirements, and provide recommendations on drive axle configurations and even customized design solutions to ensure that the product perfectly suits your practical application conditions.
