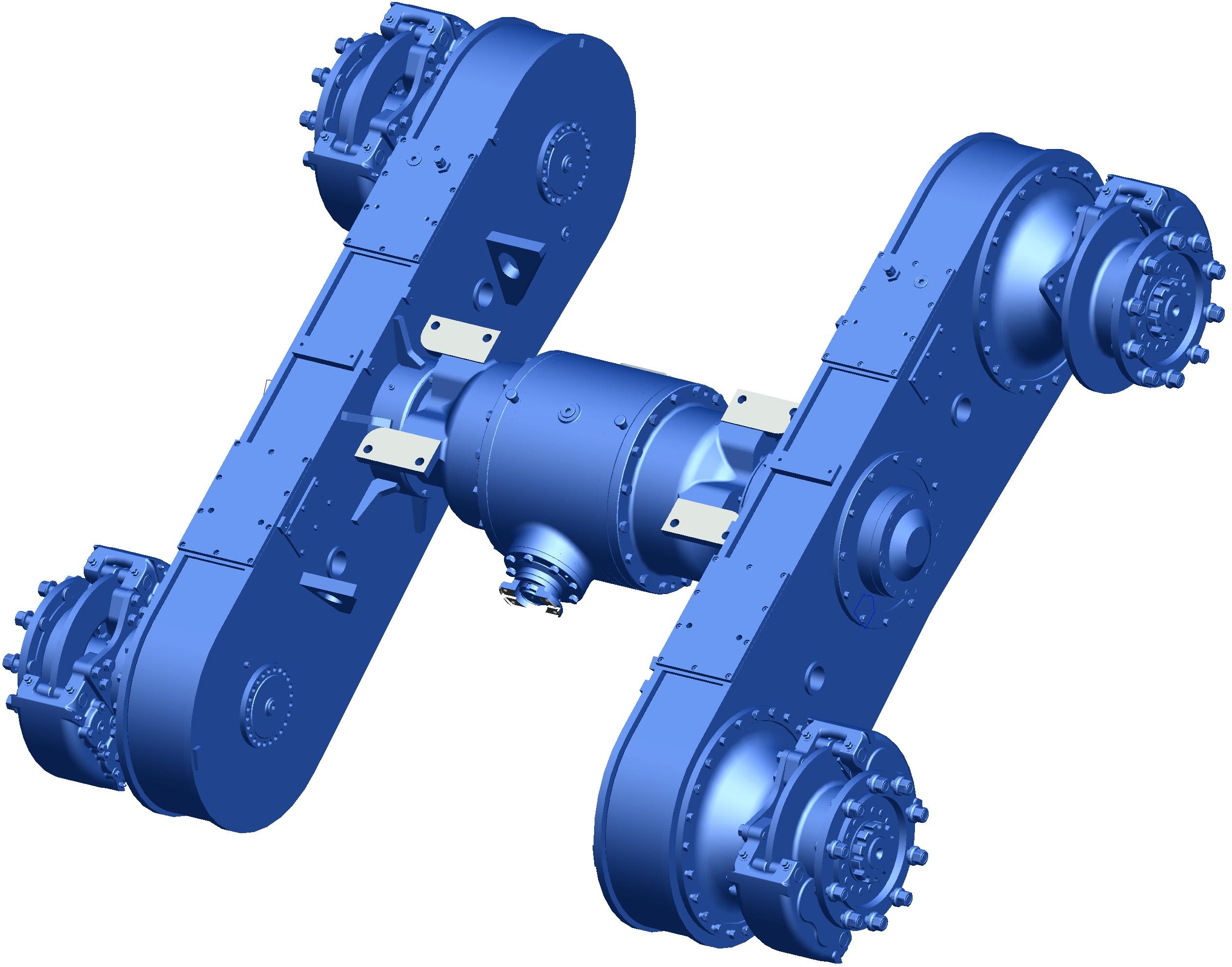

180 hp grader rear axle
1. The balanced box structure greatly improves the smoothness of the grader blade.
2. The product has a long service life and provides a stable and reliable output.
3. It has good cross-country ability on difficult road surfaces, excellent braking performance, high reliability and high maintenance convenience.
4. Suitable for 160-200 horsepower graders.
MAIN CHARACTERISTICS:
The rear axle of the 180 hp motor grader for 160-200 hp motor graders is equipped with a three-stage gear drive and a balanced box structure. The heavy-duty roller chain drive has been strengthened, as well as a differential with anti-skid No-spin system and a hydraulic calibration disc brake.
MAIN TECHNICAL PARAMETERS:
Overall overall gear ratio |
18.03 |
Maximum input torque |
6000N.m |
Maximum Input Speed |
3100r/min |
Load on one bridge |
12000Kg |
Brake system oil pressure |
11MPa. |
Braking torque of one caliper |
13050N.m |
Brake fluid volume of one caliper |
8.8ml |
Requirements for oil for the drive axle (API classification) |
GL-5: transmission oil 85W/90 (use at temperatures above -12 ° C) |
Brake fluid requirements |
Hydraulic oil L-HL46 |
