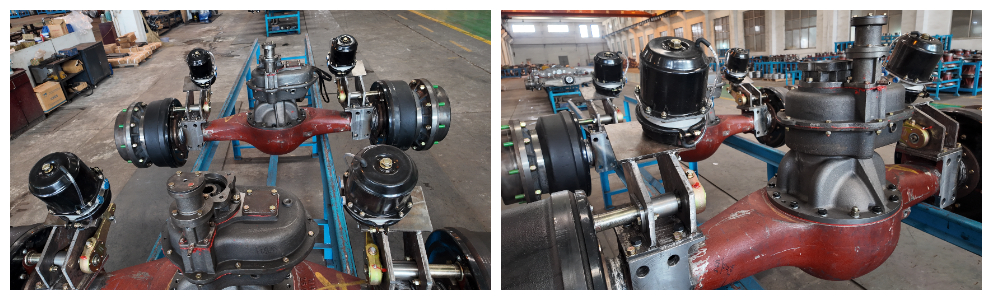

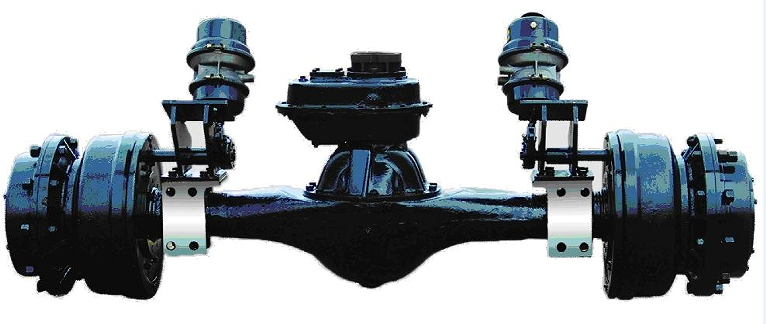

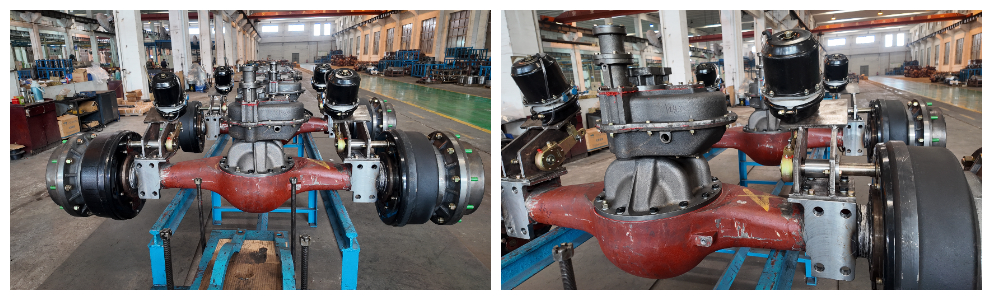

Mixer drive shaft
1. Three-stage deceleration, high deceleration ratio of 163.24
2. Gresen gearbox, highly efficient transmission with low energy consumption
3. The bridge body is made of cast steel, which has high load-bearing capacity and impact resistance
4. Multi-interface adaptation, easy to set up
5. Stability and durability, low maintenance costs
The mixer drive shaft is specifically designed for soil stabilization equipment on construction sites and provides reliable power transmission to construction equipment manufacturers and distributors.It is the main adaptation product for axle drive for road construction machinery.The machine is equipped with a three-stage deceleration system (the overall deceleration ratio reaches 163.24) and a Gleason arc bevel gear transmission, which ensures efficient operation, stable power and low noise levels on construction sites with harsh operating conditions.Thanks to the high-quality drive axle assembly, it is ideally suited to the needs of various projects in Russia.The soil stabilizer drive axle is suitable for all types of soil stabilizer models, helping customers improve construction efficiency while reducing equipment maintenance costs, and providing cost-effective transmission solutions for Russian construction equipment that meet the needs of local Russian machinery suppliers.

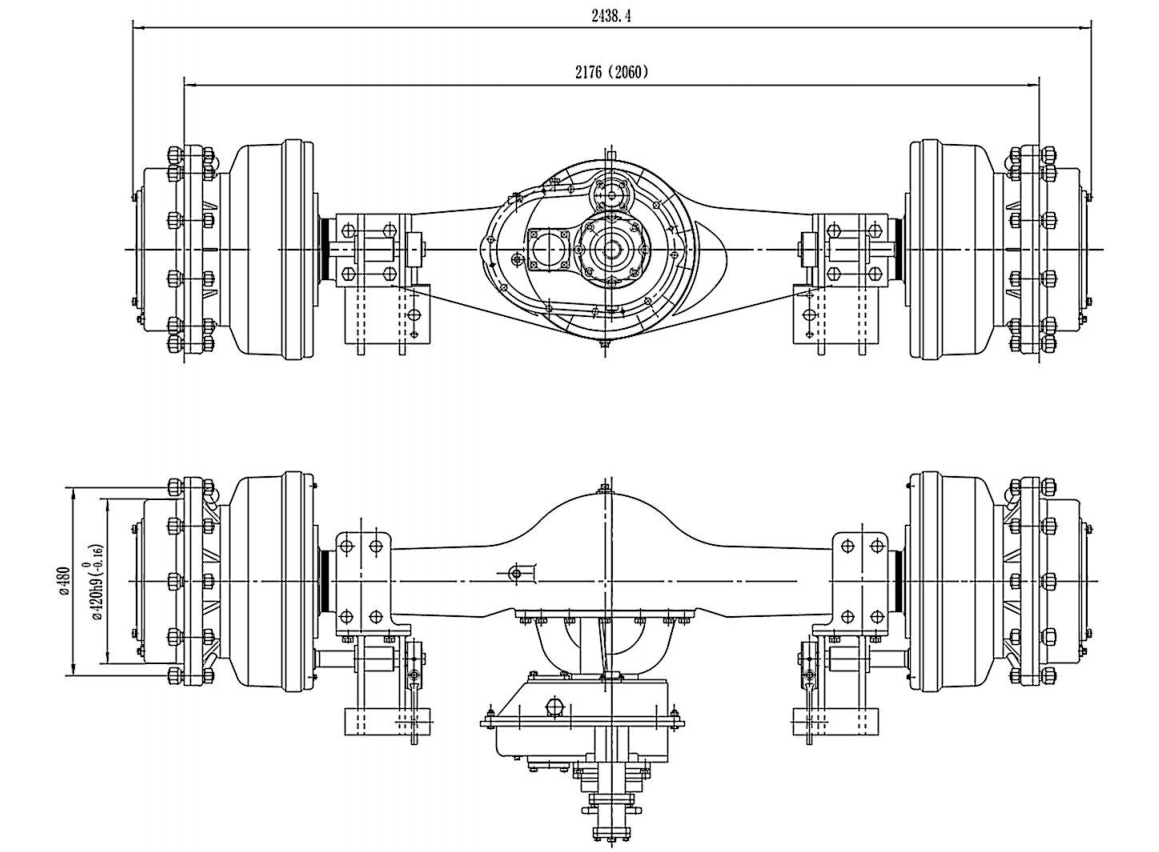

Main technical parameters:
Overall overall gear ratio |
23.26 |
|
Transmission gear ratio |
N1 |
1 |
N2 |
7.02 |
|
Maximum rated load |
20000kg |
|
Maximum input torque |
712.5 N.m |
|
Initial air pressure during parking braking |
0.8 MPa |
|
Air pressure when switching |
0.6-0.8 MPa |
|
Trip to the shift |
17.5±1 |
|
Main Features
Three-stage deceleration system, high deceleration rate
The mixer's drive shaft is equipped with a three-stage deceleration system with a total deceleration ratio of up to 163.24 and a two-speed speed reduction gearbox. This effectively converts the power of the soil stabilizer into powerful driving force, ensuring the engine's long-lasting operation. This equipment maintains stable operation under harsh and complex construction conditions, significantly improving construction efficiency. The main advantage of the drive axle of heavy-duty road construction equipment is that its design can adapt to the harsh operating conditions in Russia, meet the needs of various heavy-duty construction projects, and adapt to various scenarios, such as road construction and mining development in Russia.
High-performance Gleason arc bevel gear
The mixer's main braking mechanism uses Gleason arc bevel gear transmission technology. This precision gear technology ensures high transmission efficiency, smooth operation, low noise, and can reduce energy loss during transmission. Compared to traditional gear transmission, it extends the service life of the rear axle by 20%. This core technology makes our drive axle assembly more competitive in the Russian market, adapts to the long-term stable operation of various soil stabilizers, and meets the high reliability requirements of Russian engineering equipment.
Built-in normally closed brake with double lifting hoof inward
It is equipped with normally closed, dual-lift brakes that combine the drive and parking brakes. The brakes are responsive, reliable, and offer high braking force. They effectively ensure the safety of soil stabilizers during operation and parking and comply with international construction equipment safety standards. This safety configuration allows our mixer drive shaft to better comply with Russian engineering safety standards, enhances product adaptability to local conditions, and facilitates its successful entry into the Russian market.
Various sizes of motor input interface
The mixer drive shaft is designed with different sizes of motor input interfaces, which allows the flexible combination of different types of motors, ideally adapting to the diverse configurations of different customers and soil stabilizer models, as well as improving the compatibility and applicability of the product. This design allows the drive axle assembly ("Bridge Assembly") to be flexibly adapted to various models of soil stabilizers on the Russian market, meet the individual needs of different customers and adapt to a variety of auxiliary the needs of local Russian manufacturers of construction equipment.

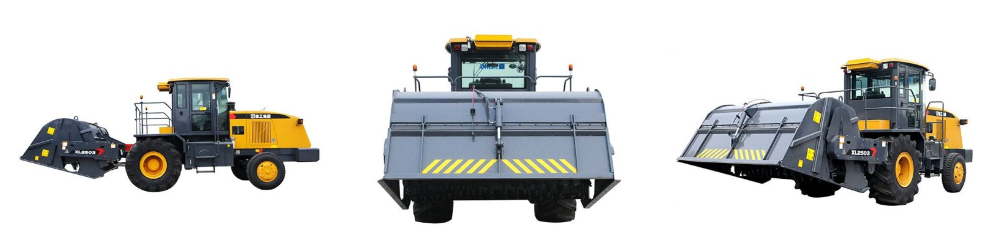

Application scenario
Soil stabilizer for road construction: suitable for all kinds of road construction, ensures stable and uniform transmission
Construction site stabilizer: High stability when starting and stopping to ensure construction progress
Municipal Construction Stabilizer: Adapts to limited conditions and improves the quality of municipal construction.
Mining Zone Stabilizer: Impact and dust resistant, suitable for complex mining environments
Large-scale infrastructure stabilizers: meet high standards and ensure infrastructure development
Application example
Case 1 - Xuzhou Road Construction Group Soil Stabilization Support Project
Project overview:
Xuzhou Road Construction Group Co., Ltd. (a key subsidiary of XCMG, China's leading construction machinery manufacturer) requires a high-performance mixer drive shaft to support its new generation of road construction soil stabilizers, which aim to improve equipment stability and construction efficiency.
Project results:
Following installation and commissioning, the soil stabilizer drive axle successfully passed rigorous performance tests by XCMG Group. The soil stabilizer equipped with this product features stable operation, low noise, and high efficiency. Maintenance frequency has been reduced by 30%, and structural efficiency has been increased by 25%. This fully confirms the high quality and reliability of the drive axle assembly, which can meet the needs of Russia, as required by the high market standards.
Conclusion on the project:
This project fully demonstrates that the Shandong Lutong mixer drive shaft can fully meet the high standards of leading construction equipment manufacturers. As a high-quality drive axle for road construction equipment, it provides reliable transmission solutions for road construction and other applications and can be used as a high-quality drive axle for road construction equipment. It perfectly adapts to the diverse engineering needs of the Russian market and helps the Russian machinery industry improve construction efficiency.
Frequently Asked Questions
Question:What is a Mixer Drive Shaft?
Answer:The mixer drive shaft is a key transmission component for soil stabilization equipment. It belongs to an important category of drive axles in road construction equipment, primarily used to provide stable and efficient power transmission for soil stabilization in various construction scenarios.
Question:Can the drive axle for the soil stabilizer be customized according to customer needs?
Answer:Yes. The drive axle for the soil stabilizer can be customized according to customer needs, including the motor input interface size, axle housing specifications, brake configuration, and so on. We can offer customized drive axle assembly solutions ("Axle Assembly") to meet the diverse needs of different customers and soil stabilizers. These models are adapted to the various individual engineering needs of the Russian market and meet the auxiliary needs of local Russian manufacturers.
