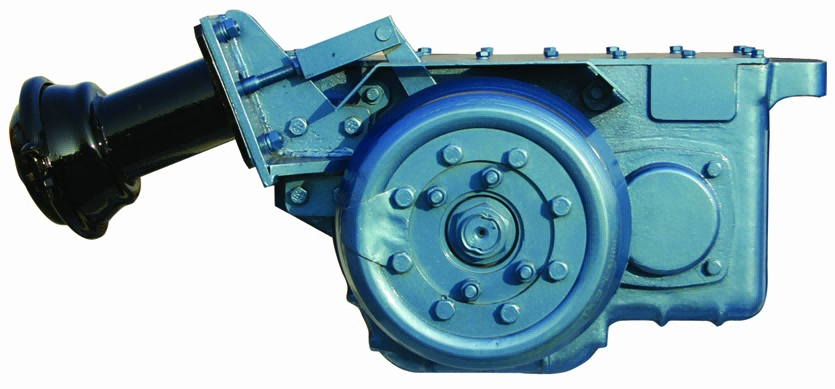

Wheel excavator gearbox
1.Reduction drive with two gears.Various sizes of motor input interfaces to accommodate different configurations.
2.Pneumatic switching, convenient to manipulate.
3.Parking brake of the drum type, safe and reliable.
4.Suitable for 8 - 12-ton wheeled excavators
Introduction:
The gearbox for wheeled excavators is designed for wheeled excavators with a load capacity of 8-12 tons and consists of a two-stage gearbox with a speed reduction system.It supports several standard motor input interface sizes and uses a pneumatic gear shift mechanism, providing simple and convenient control.
Main Technical Parameters:
Gear ratio |
High gear ratio |
1.164 |
0.918 |
Low gear ratio |
3.25 |
||
Maximum input torque |
780 N.m |
||
Air pressure during braking |
0.8 MPa |
||
Air pressure during shifting |
0.6-0.8MPa. |
||
Requirements for oil for the drive axle (API classification) |
GL-5: transmission oil 85W/90 (use at temperatures above -12 ° C) GL-5: transmission oil 80W/90 (use at temperatures above -26°C) |
||
Weight |
155Kg. |
||
