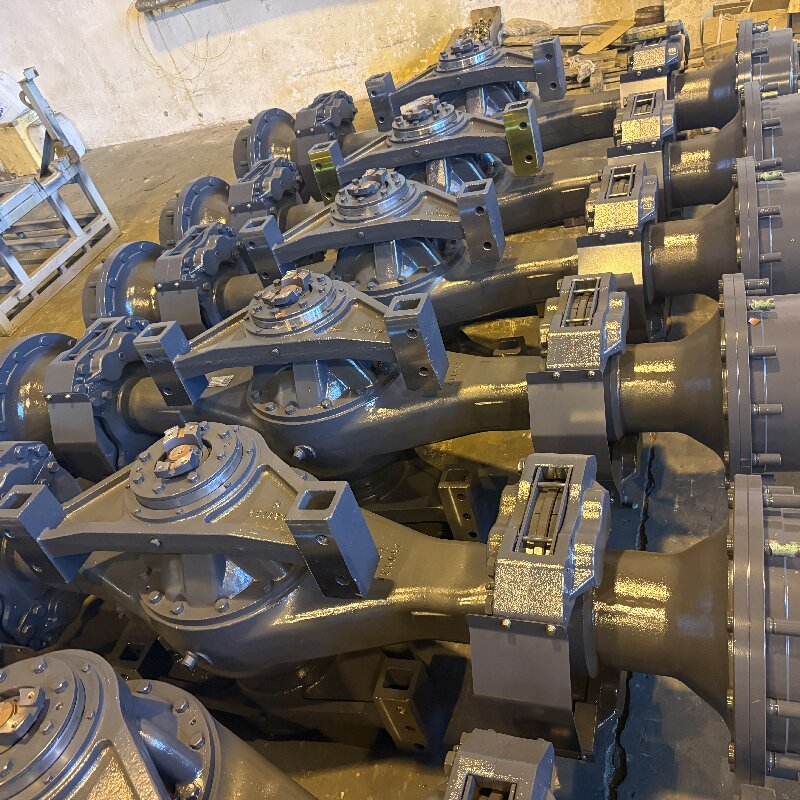

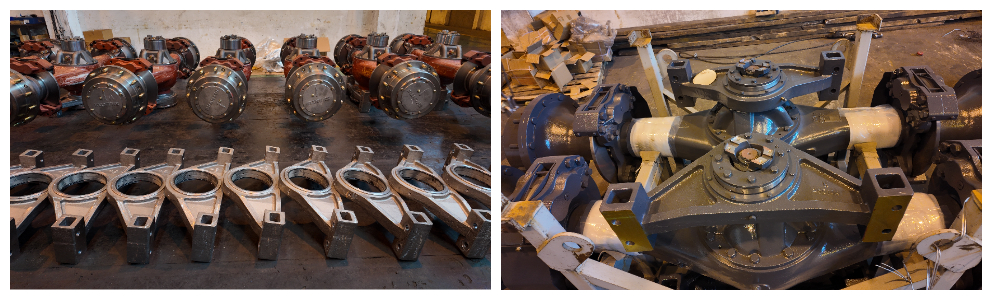

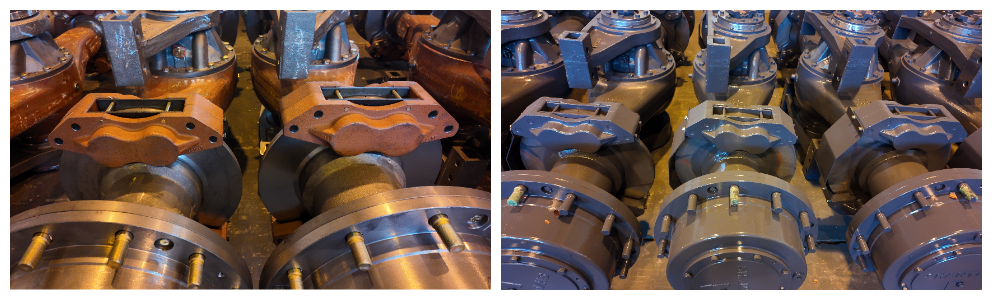

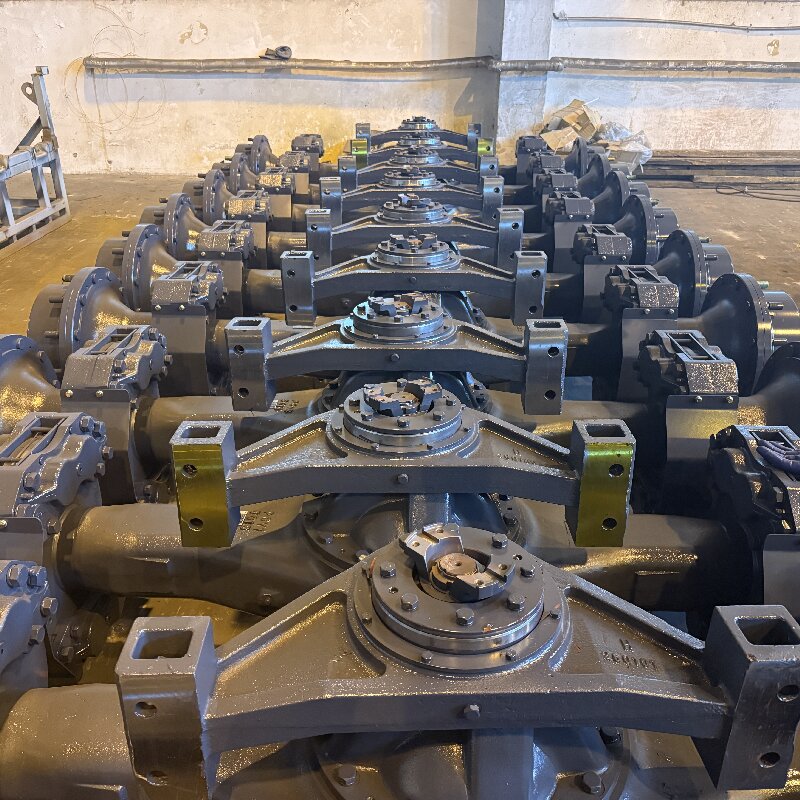

5-ton loader swing axle

With 32 years of intensive development in the field of construction machinery drive axles, Shandong Lutong has focused on the research, development and design of drive axles, large-scale production and supply to the global market. Relying on deep industry knowledge, strict quality management system and efficient international supply capabilities, the company has successfully entered the global market. a cooperation center for global forklift manufacturers and construction equipment distributors. Our 5 ton forklift swing axle can be widely used with all kinds of medium and large forklifts, and can be flexibly used in various operating scenarios, such as construction, mining, agricultural water conservation, port loading and unloading, etc., to effectively solve various operational tasks under difficult working conditions.

The main competitiveness of the enterprise

With 32 years of experience in the production of construction machinery parts, Shandong Lutong has established a complete industrial system integrating R&D, production, testing and sales in the field of 5-ton loader swing axles. At present, the company's annual production capacity can reach 50,000 sets of various drive axles and support elements, 20,000 sets of small gearboxes and torque converters, sufficient production capacity and stable manufacturing facilities that can efficiently meet the regular purchasing and emergency replenishment needs of customers around the world.

The company has always adhered to the concept of joint development in the fields of quality, safety, health and environment, and has implemented an intelligent ERP management system to realize the standardized operation of the entire process from ordering, production process control to shipment tracking, which has greatly improved enterprise management efficiency. At the same time, the company has successfully passed the ISO9001 quality management system certification, which provides a strong institutional guarantee for product quality control. In addition, we are equipped with high-quality testing equipment such as three-axis testing equipment. Hexagon detector and MDS metallographic microscope, which allows for comprehensive and high-precision control of product processing accuracy and material characteristics to prevent various hidden quality threats emanating from the source.

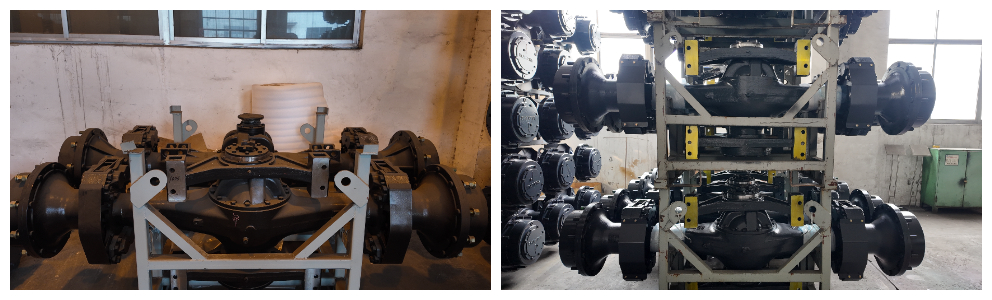

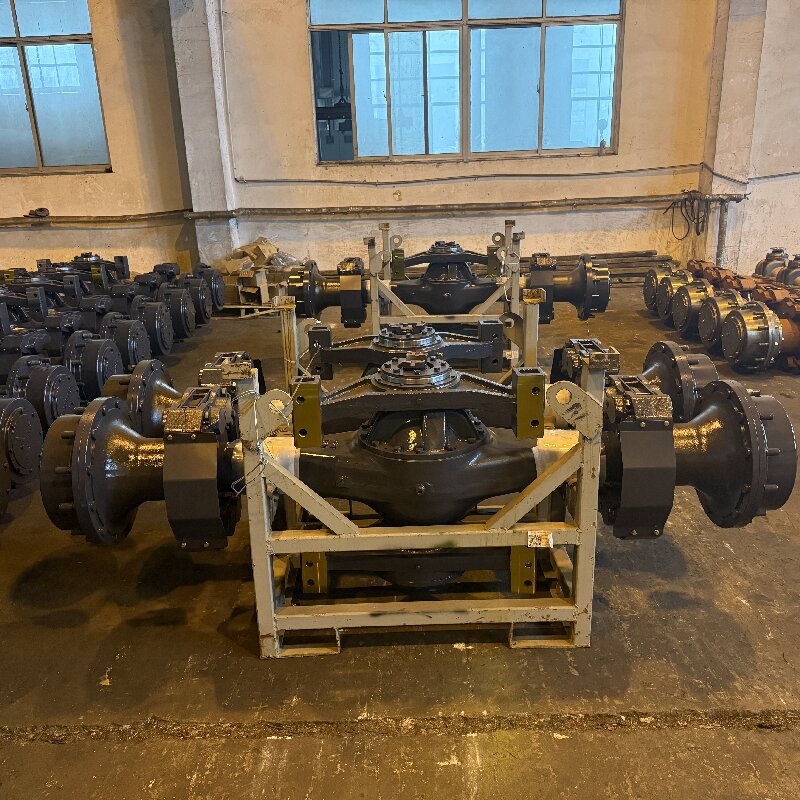

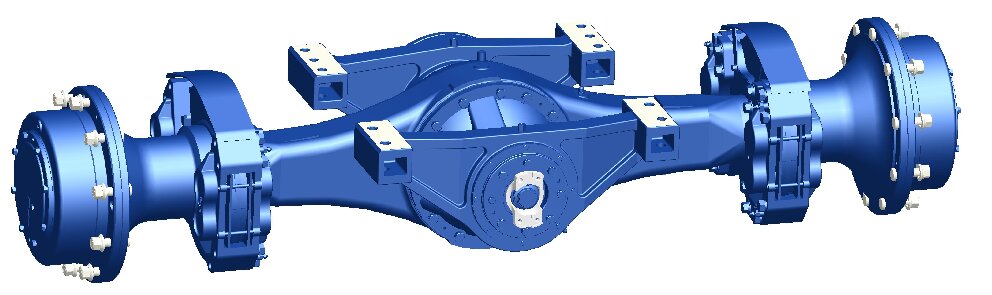

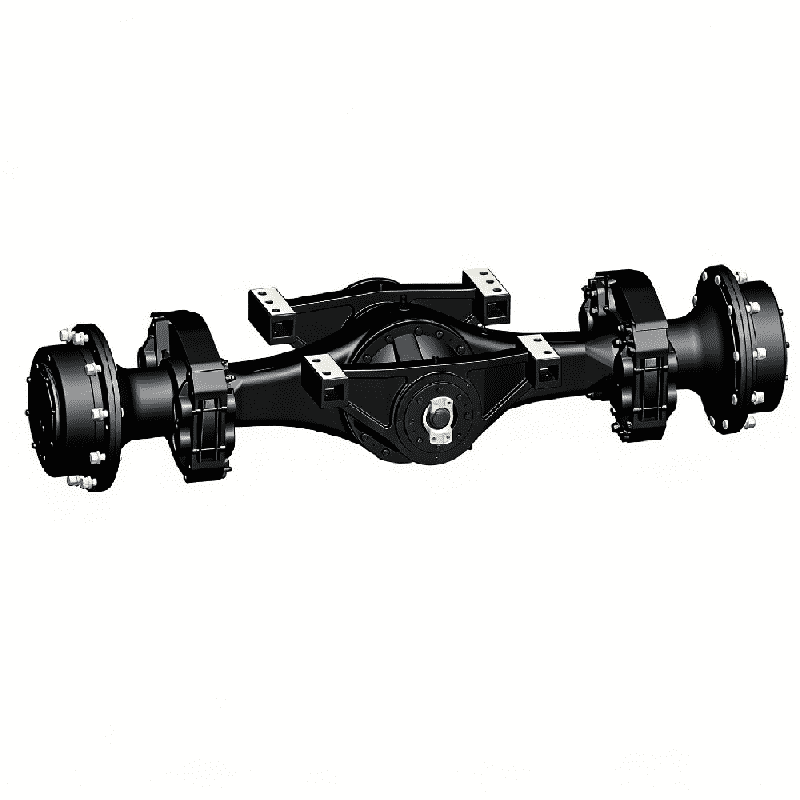

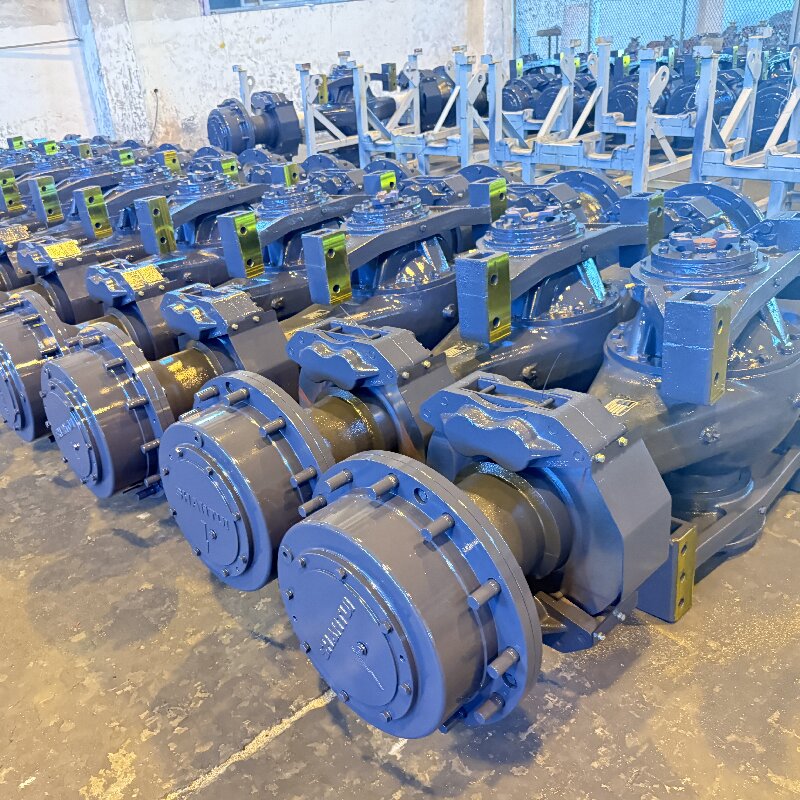

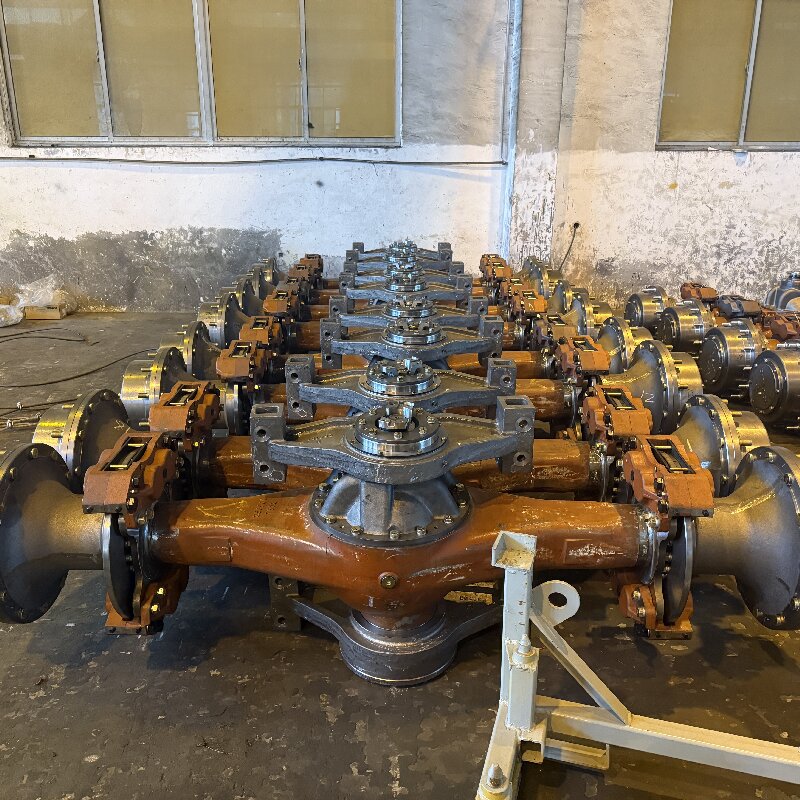

Advantages of the main product - 5-ton forklift slewing bridge

The 5-ton forklift steering axle, developed and produced by our company, is designed for the rear axle of the forklift and is specially adapted for the 5-ton forklift.

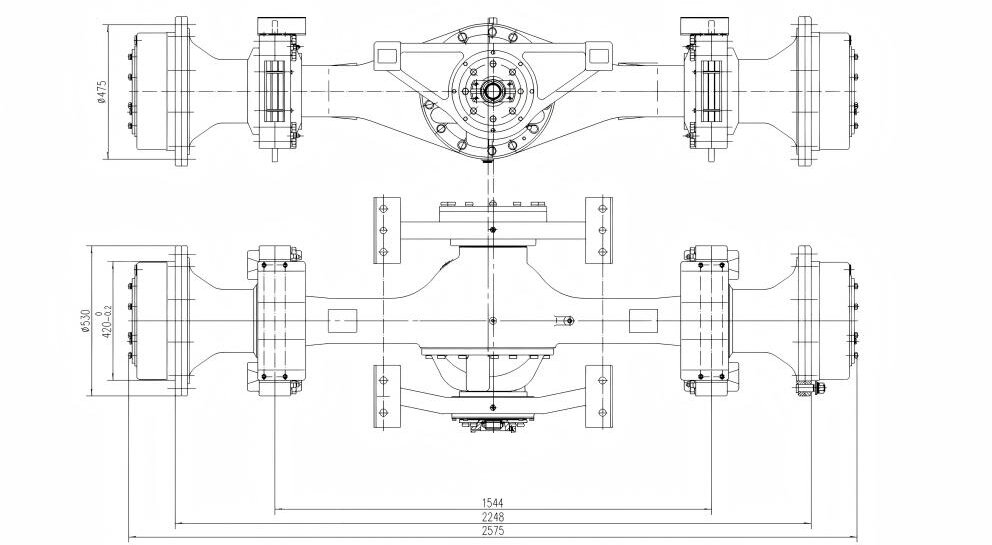

Main technical parameters:

The drive axle of the 5-ton loader is designed with precision technology to meet the heavy-duty requirements of the 5-ton loader, taking into account the key requirements of overseas customers for transmission efficiency, operating safety and adaptability, and targeted optimization of the main structure. superior performance and high adaptability. It can calmly handle all kinds of heavy and complex operating conditions of the 5 ton forklift. The main advantages are as follows：

The transmission design is optimized to meet the needs of a variety of heavy loads:

The two-stage deceleration transmission design is adopted, the transmission logic is clear, and the power transmission is smooth. According to the actual operation scenario of 5-ton forklift, the normal differential or the non-rotating non-slip differential system can be flexibly selected. Among them, the No-Spin anti-slip differential can effectively improve the traction of the 5-ton forklift on difficult roads and avoid the power loss caused by the slipping of the rear axle wheels. Conventional differentials take into account cost-effectiveness and practicality, and meet the individual needs of different customers regarding the drive axle of a 5-ton loader in all directions.

The main deceleration is efficient and quiet, and has outstanding performance characteristics:

The main deceleration system uses Gleason bevel gear technology. Compared with traditional transmission design, transmission efficiency is greatly improved and power loss is minimized, which helps the 5-ton loader improve operating efficiency and reduce energy consumption. At the same time, the gearing is precise and the operating noise is extremely low, which effectively improves the working environment of operators and reduces noise pollution during equipment operation. It is suitable for long-term operation of 5-ton forklifts in harsh conditions.

The wheel-side braking system is compact and rational, and the space utilization rate is high:

The wheel side planetary braking system is equipped with NGW type transmission, the overall structure is scientifically proven, and the size is compact. This provides effective braking and increased torque in the limited installation space of the 5-ton forklift, which not only provides high load capacity and transmission efficiency, can be adapted to the needs of 5-ton heavy-duty vehicles, but also effectively saves installation space on the rear axle, adapts to the overall design of the 5-ton forklift, and improves the overall coordination of the vehicle.

The pendulum is characterized by strength and durability, as well as increased safety indicators:

Cast steel material is generally used to make the pendulum as a whole. The material has high strength and high impact resistance, which can effectively lower the center of gravity of the 5-ton loader, greatly improving the stability and balance of the pendulum. 5 ton forklift during operation and avoid safety hazards such as rollover and vehicle instability under heavy loads and difficult operating conditions. Ensure the safety of operators and equipment in all directions and extend the life of the rear axle of the 5-ton forklift and the entire machine.

Reliable and fast braking for safety in difficult conditions:

Equipped with a clamping disc brake system, it provides sufficient braking torque, fast braking response and stable performance. Even in harsh and long-term operating conditions, the 5 ton forklifts are precise and can achieve reliable braking, effectively shortening the braking distance, avoiding the safety risks associated with rear axle brake failure, and providing a strong safety guarantee for all types of heavy and complex 5 ton forklift operations, as well as reducing the number of accidents.

Precise adaptation to 5-ton forklifts, high compatibility:

The product is specially designed for 5 ton forklifts. The design dimensions and installation interface perfectly match 5-ton loaders. It can be assembled and used directly without additional modifications, which greatly reduces customer's assembly costs and labor time. At the same time, the parameters can be precisely adjusted according to the driving axle requirements of various models of 5-ton forklifts, to ensure adaptability and stability of operation, and fully meet the needs of 5-ton forklifts in severe operating conditions.

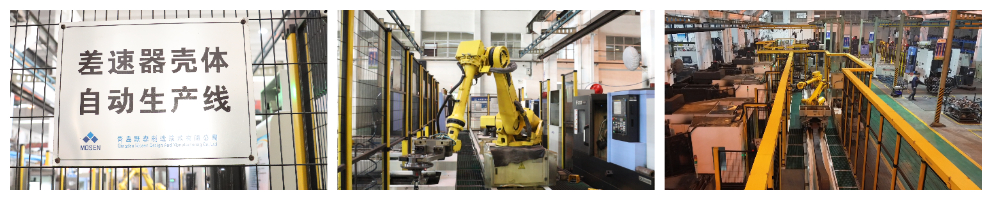

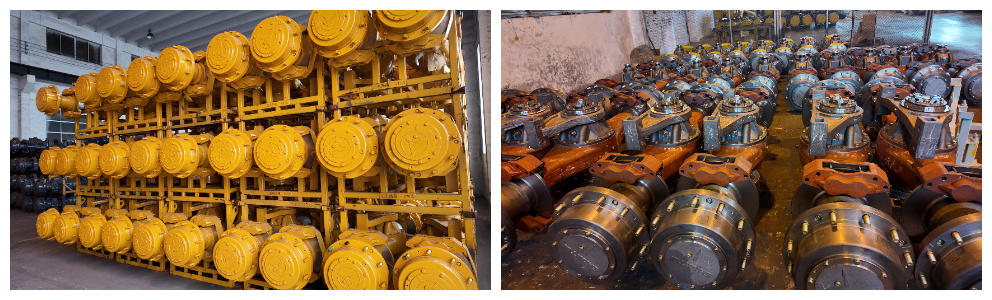

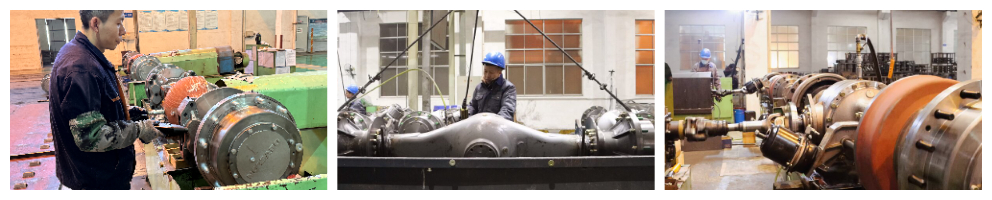

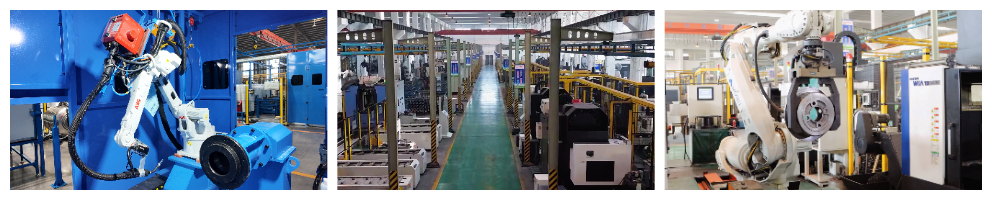

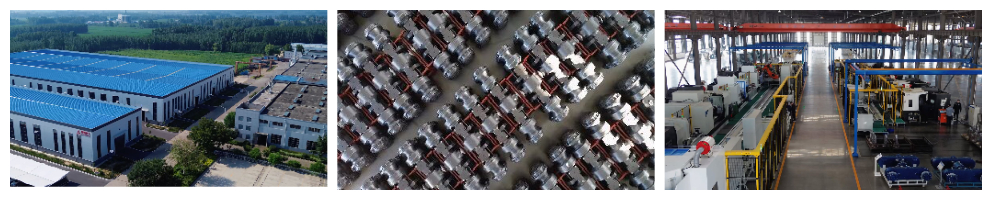

Showcasing the power of smart and automated manufacturing

In the production process, Shandong Lutong uses intelligent technology and automation as its core business, and continuously improves production efficiency and product consistency. At present, the core production processes have fully implemented CNC intelligent operations. Relying on high-quality automated production system, we can effectively guarantee the quality stability, specification compliance and production efficiency of 5 ton swing axle loaders, and provide customers around the world with efficient and high-quality product supply guarantee.

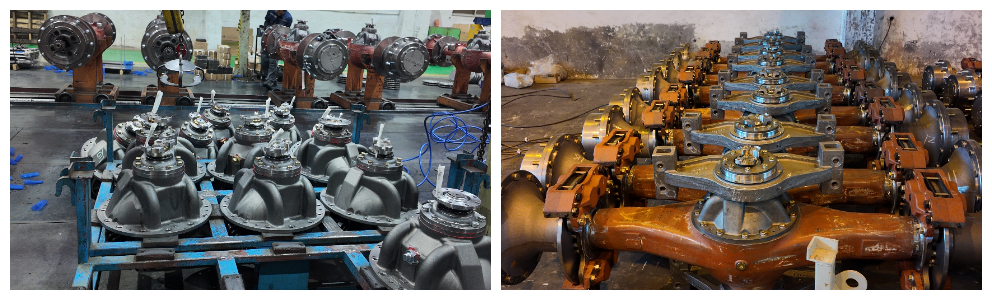

Considering the specific requirements of producing 5-ton forklift swing axle under heavy-duty conditions, we specially designed a special automated production line to automate the entire process, minimize errors caused by manual intervention, and greatly improve product manufacturing precision and mass production efficiency. We can effectively meet the needs of customers around the world for bulk purchasing of 5 ton forklift drive axle and urgent order delivery requirements, and provide stable and fast supply support.

This not only effectively guarantees the processing accuracy and consistent product quality of the 5-ton forklift swing bridge production link, but also further improves the overall production capacity, helping us provide more competitive product delivery services to customers worldwide, and effectively reduce purchasing costs and lead time for customers.

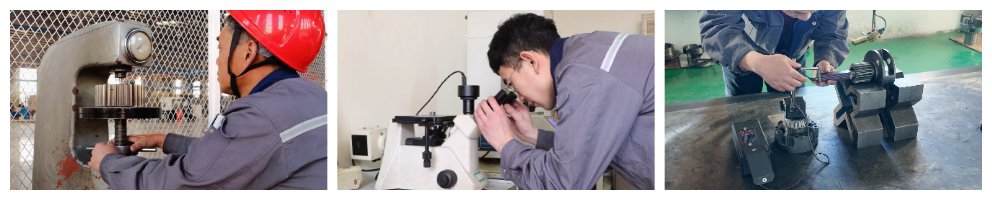

Strict quality control, establishing a strong quality defense line

To meet the stringent quality requirements for heavy-duty work on the rear axle of 5-ton forklifts, Shandong Lutong has abandoned the traditional quality control model and established a whole-chain quality management system, including “source control, strict process control, finished product inspection and authoritative certification.” Understanding that every link from the receipt of raw materials to the delivery of finished products can be tracked and controlled, we resolutely prevent low-quality products from entering the market, fully comply with international industry standards and the high quality requirements of customers around the world, and completely dispel all customer concerns about product quality.

Strict selection of raw materials at the source:

Raw materials are the basis of product quality, and we have established a strict raw material access and testing mechanism. All the main raw materials, such as cast steel and gear steel, used in the production of 5-ton forklift swing axles are selected from industry-renowned suppliers, and full material certificate is required; After entering the factory, it will be equipped with high-quality equipment such as three-axis hexagon. detector, metallographic microscope MDS, microhardness tester, ultrasonic flaw detector, etc., focused on testing material hardness, metallographic organization and other basic indicators of raw materials, as well as conducting all inspections such as composition analysis and flaw detection. Only raw materials that fully comply with heavy-duty standards can be placed on the market. control the production process, avoiding safety risks caused by materials not meeting the underlying cause.

Process control:

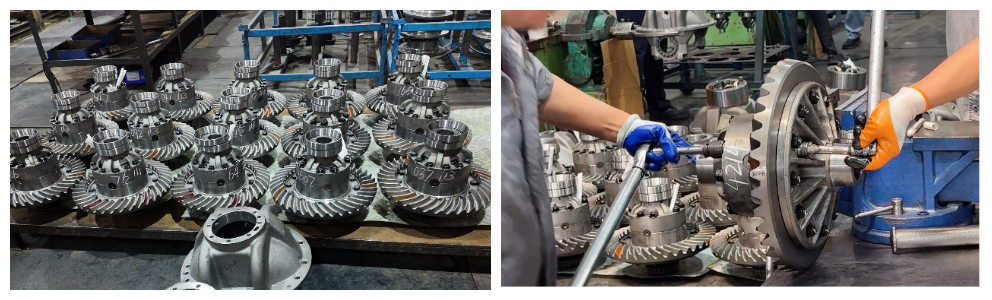

Improved controls are implemented throughout the entire production process. According to the driving axle characteristics of the 5-ton heavy-duty loader, in key processes such as machining and assembly of main components, several online inspection units are installed to monitor parameters such as processing accuracy and installation clearance. Correct time deviations in real time and minimize errors caused by manual intervention; At the same time, the selection of semi-finished products is carried out in stages, paying special attention to key indicators such as the meshing accuracy of transmission components and the strength of the pendulum structure, to ensure that each process meets quality standards and guarantees product uniformity.

Checking finished products:

All finished 5-ton loader swing axle products must undergo comprehensive and rigorous testing to ensure full performance before leaving the factory, including key steps such as sealing test, noise test, bench load test, turning and braking performance test, and comprehensive testing of seal reliability, transmission stability, turning flexibility, noise reduction and braking effect of the product ensure that it can still work stably under harsh and complex conditions. labor, and can also be directly assembled and put into operation without additional testing and debugging by customers.

Authoritative Certification:

For the new product - 5-ton loader swing axle - we have developed an exclusive authoritative inspection process. After the completion of the research and development of the new product, it will be uniformly sent to China Automobile Research and other authoritative testing institutions in the country to conduct bench tests simulating the actual operating conditions of 5-ton loader under heavy-duty conditions, and comprehensively verify the main characteristics of the product, such as load capacity, transmission efficiency and service life. Only after repeated careful testing and confirmation that it is fully adapted to the needs of heavy-duty operation will it be officially put into mass production and released to the market. Use authoritative data to demonstrate our commitment to quality and protect customer collaboration rights and experiences. all over the world.

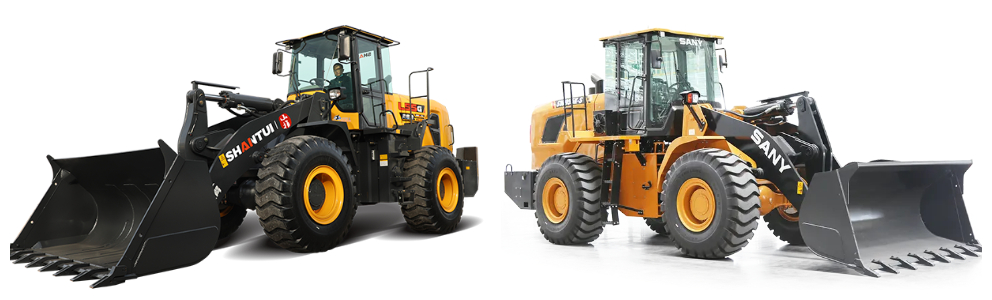

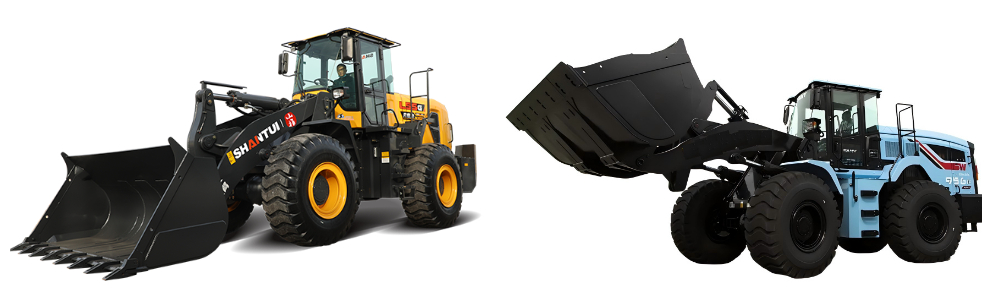

The quality of support from major OEMs is widely recognized

With stable product quality, high efficiency in adapting to harsh conditions and perfect service, our 5 ton swing axle loader has been successfully recognized and put into mass production by several leading domestic construction equipment manufacturers, and has become the main supplier to famous manufacturers such as Sany, Shantui, Lovol, Degong, Taizhong and Borreton. These products are widely used in 5 ton forklift models from various manufacturers. After real combat testing under long-term operation in harsh conditions, it received high praise from various manufacturers.

Close cooperation with major OEMs not only recognizes the high quality of our products and production capabilities, but also helps us to continuously optimize product design and improve service levels. Taking into account the individual technical requirements of the drive axles of 5-ton forklifts from various manufacturers, we provide customized support solutions and simultaneously complete product research and development, adaptation and commissioning, as well as serial deliveries to help OEMs improve the performance and competitiveness of the entire machine in the market. Among them, products with rotary bridge supporting Lovol are even more suitable for use in heavy models. After more than a thousand hours of testing under industrial conditions, the stability and wear resistance are outstanding, further confirming the durability of our products; Cooperation with Shantui is based on strict standards regarding the main accessories of the forklift, allowing us to continuously improve product performance and build mutually beneficial cooperation.

Long-term trust and widespread adoption by many leading equipment manufacturers is the most compelling proof of the quality of our products. This also confirms Shandong Lutong's authority in the field of 5-ton forklift slewing axles and ensures that customers worldwide will choose us.

Benefits of cooperation We sincerely invite customers around the world to work together to achieve a win-win situation

32 years of professional experience in construction equipment drive axles, guaranteed full service. By choosing a 5-ton loader slewing axle from Shandong Lutong, you receive:Stable and reliable product quality, flexible and adaptable customized solutions, efficient and fast delivery services, professional and attentive technical support and impeccable after-sales service are our sales guarantee.We've always focused on customer needs and expanded our drive axle production. Thanks to the high quality of our products, production capacity, and service, we've earned the long-term trust and close cooperation of many partners worldwide.

No matter you are a forklift manufacturer, a construction equipment distributor or a large engineering and construction enterprise, whether you want to adapt to the 5-ton model accessories from leading manufacturers such as Sany and Shantui, or you need a special 5-ton forklift rear axle, Shandong Lutong can provide you with highly competitive products and a full range of international and domestic cooperation services. We sincerely invite you to join forces and together expand the global construction equipment market!
