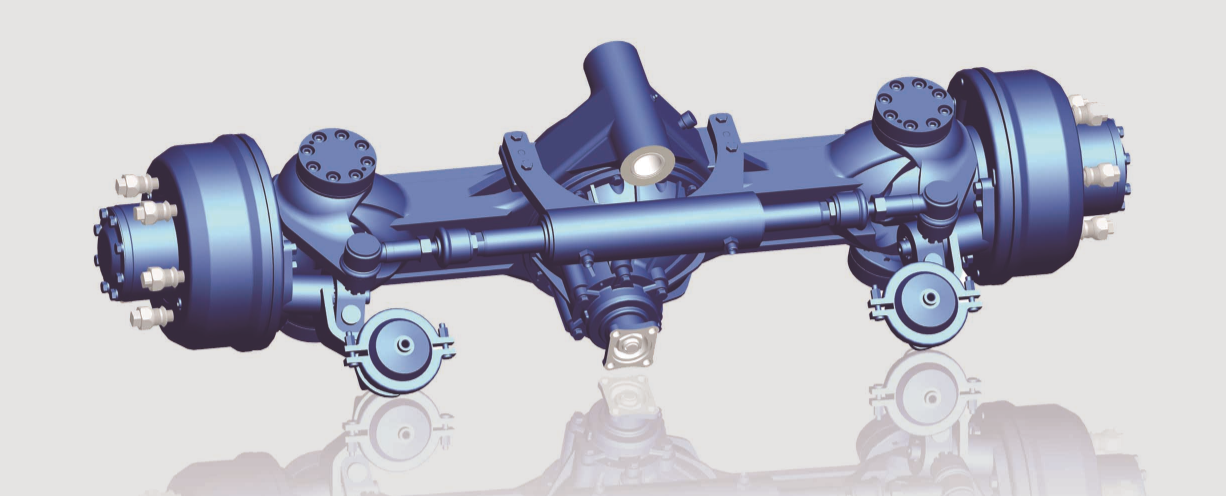

Front axle of a 6.5 ton wheeled excavator
1.Isuzu interchangeable parts are used in the assembly of the editor-in-chief, mature and reliable, and easy to purchase.
2. The entire axle body is cast from steel, has high and good rigidity.
3. Constant speed power take-off shaft, uniform angular velocity, high transmission efficiency.
4.Pneumatic side brake CAM wheel type "hoof", safe and reliable.
5.Suitable for 6~7ton wheel excavator.
MAIN CHARACTERISTICS:
The axis of the 6.5-ton wheel excavator is designed for compatibility with 6-7-ton wheeled excavators and has an axis housing made of whole cast steel. The main gearbox includes standardized components to facilitate maintenance and replacement operations. As a brake system, expanding column brakes with pneumatic drive are used, providing reliable and safe operation in accordance with industrial safety requirements.
Main Technical Parameters:
Total gear ratio |
6.167 |
Maximum output torque |
7000N.m |
Rated load |
4500Kg |
Braking distance |
CAM type is pneumatic |
Brake system pressure |
0.8MA |
Parking brake |
0.8MA |
0il request for a leading axis (API standard) |
GL -5: 85W/90 transmission oil (above -12 ℃) GL -5: 80W/90 transmission oil 0i1 (above -26 ℃) |
Suitable hub |
6.5-16 |
Suitable tire |
7.5-16 |
The lubrication of the wheel |
2 lithium lubricant |
