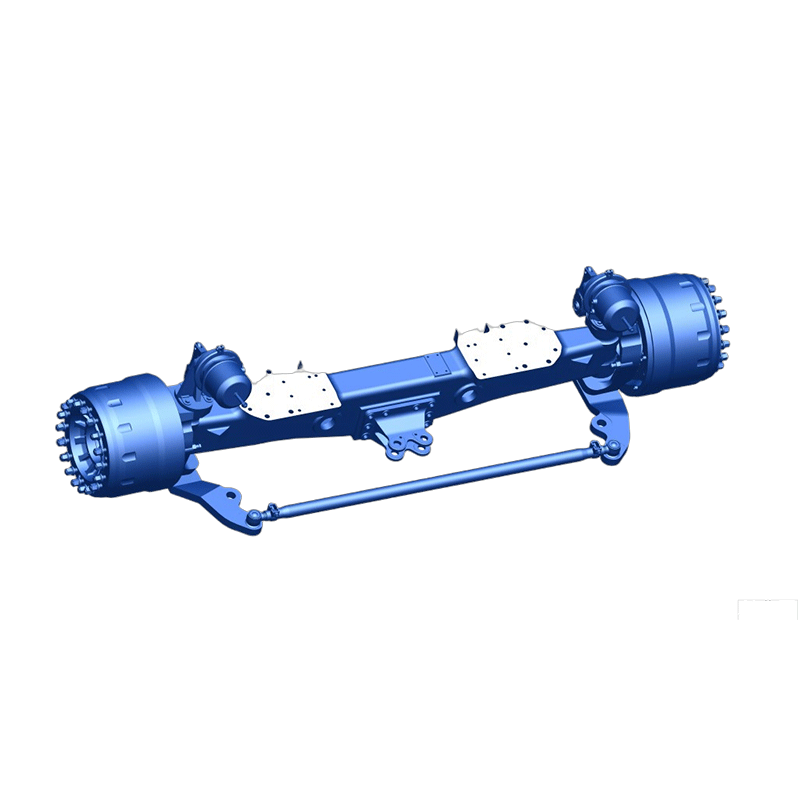

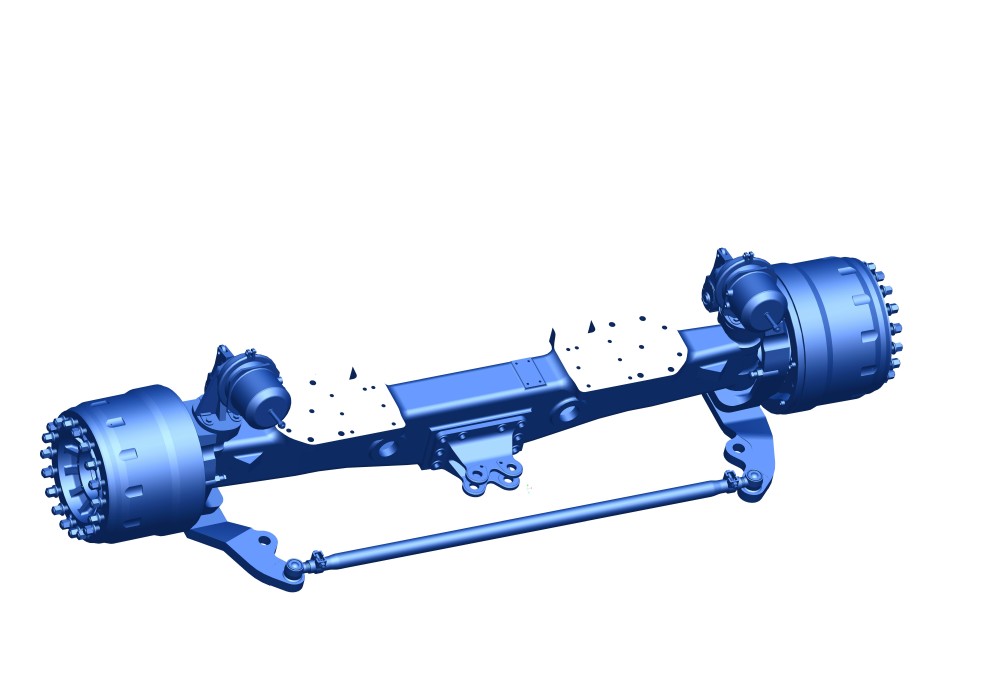

Front steering axle for off-road dump trucks
1.Highly reliable cast bridge body with smooth curves, high load capacity, and long service life.
2.Lightweight design, industry leadership.
3.Large braking torque, fast and reliable braking.
4. Suitable for 105-ton wide-track dump trucks and similar equipment.
MAIN CHARACTERISTICS:
This product is specifically designed for wide-track off-road dump trucks.The increased angle of rotation of the front axle significantly reduces the turning radius, enhancing maneuverability.The high-torque drum braking system ensures reliable stopping in extreme operating conditions.The product has been tested in harsh mountain conditions, confirming stable performance under extreme loads and exposure to aggressive external factors.

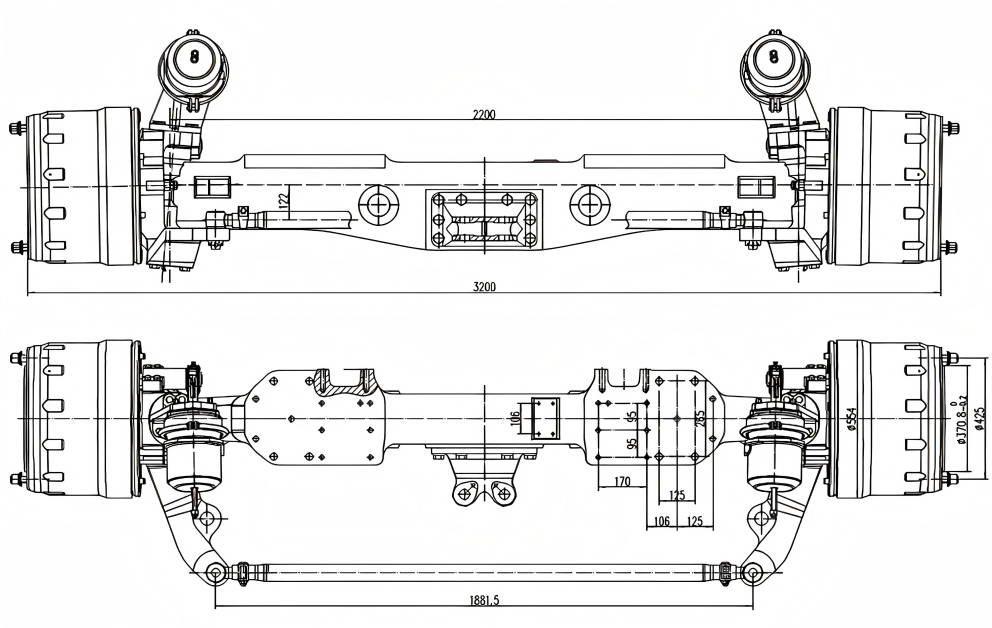

MAIN TECHNICAL PARAMETERS
Rated load of the bridge |
25000Kg. |
Maximum rotation angle |
37° |
External angle of inclination of the front wheel |
1° |
The angle of the crosswise inclination of the stud. |
5° |
Alignment of front wheels |
4-6mm. |
Brake specification |
Φ500 x 250 |
Specification of Brake Chambers |
36/30 |
Brake system pressure |
0.8 MPa |
Full braking torque of the axle |
90000 N.m |
