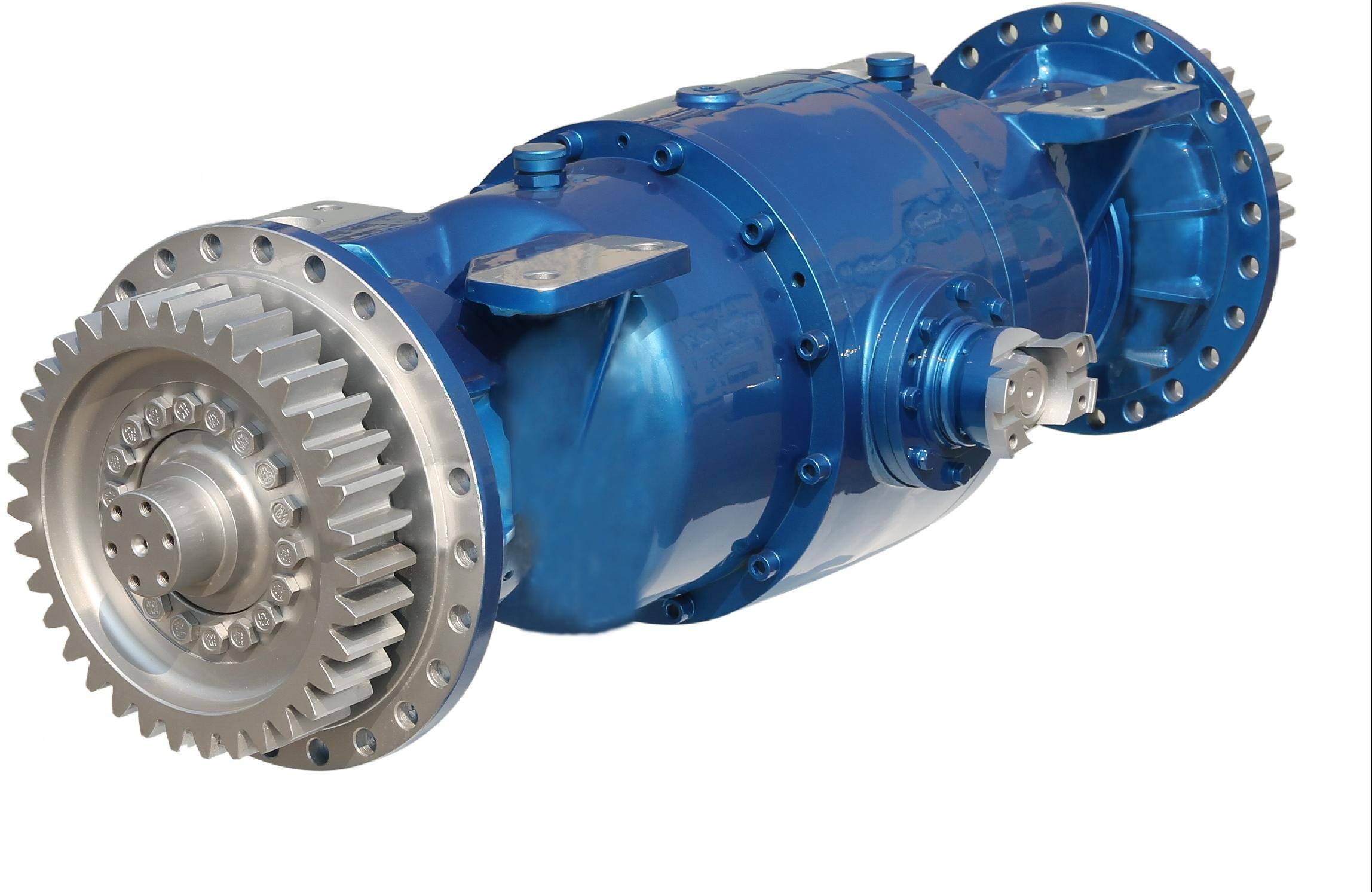

Grader Central Assembly
1. Two-stage gearbox with output through a gear wheel.
2.Optional No-spin differential for complex road conditions.
3. Supplied to assembly plants in Russia, reliable and stable quality.
4. Compatibility with graders of 160-200 horsepower.
Introduction:
The central unit of the PY180 grader is equipped with a two-stage transmission system, in which large gear wheels are responsible for power transmission, making power transmission efficient and stable.Equipped with anti-slip LSD, it can effectively guarantee stability when passing through complex road surfaces without fear of unevenness.High quality and reliability of LSD are confirmed by the fact that they are already being exported to Russian mechanical factories.Suitable for graders with an engine capacity of 160 to 200 horsepower, LSD provides reliable support for the graders' operation, helping to efficiently perform tasks during both road construction and site leveling.
Main Technical Parameters:
Overall overall gear ratio |
12.978 |
Maximum input torque |
6000N.m |
Maximum Input Speed |
3100rpm |
Rated load of the bridge |
12000Kg |
Drive Axle Oil Requirements (API Classification) |
GL-5: Transmission oil 85W/90 (use at temperatures above -12°C) GL-5: transmission oil 80W/90 (use at temperatures above -26 ° C) |
