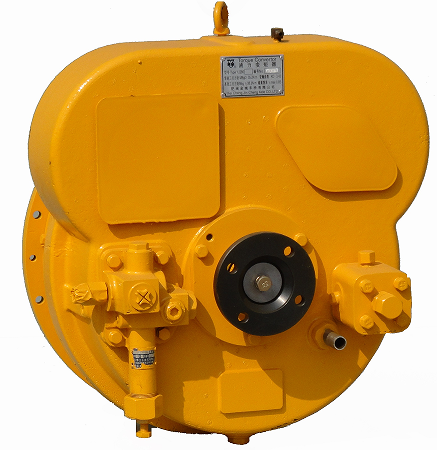

serial hydraulic torque converter
1.Various torque parameters, use of high-quality wheels, reliability and stability in operation.
2.Various interface sizes meet the requirements of different engines.
3.Combination with a torque converter in a split type.The shaft transmits power.
4.Using high-quality sealing parts and strict leak testing.Reliability for integrated performance.
5. Suitable for 1.5-2 cubic loaders.
Introduction:
The torque converter uses high-quality sealing components, it has several torque conversion parameters and various interface sizes, which ensures compatibility with different product specifications.It is specifically designed for compatibility with loaders of 1.5-2 m³ capacity and meets strict engineering requirements for transmission systems.
Main Technical Parameters:
Hydraulic torque converter model |
Diameter of the circulation circle |
Nominal torque |
Rotation/ns¹ |
Power/KW. |
Torque ratio |
Day 1 |
D2. |
$D3 |
n-d1 |
n-d2. |
L. |
A |
YJ280F |
Ø280. |
35.2 /N.m. |
2400 |
50-62 KW |
3.43 |
Ø428.6. |
Ø409.6h7. |
Ø360. |
12–Ø11 |
12–Ø11 |
40 |
15° |
Ø340. |
3-Ø13. |
|||||||||||
YJ280F-1. |
29.8 /N.m. |
2000 |
40-50 KW |
3.7 |
Ø440. |
Ø416h7. |
Ø290. |
9-Ø13. |
12–Ø11 |
30 |
40° |
|
Operating temperature |
80~110℃ |
Request for oil |
No.6.#No.8#hydraulic drive oil and No.22#turbine oil |
weight |
110Kg. |
|||||||
