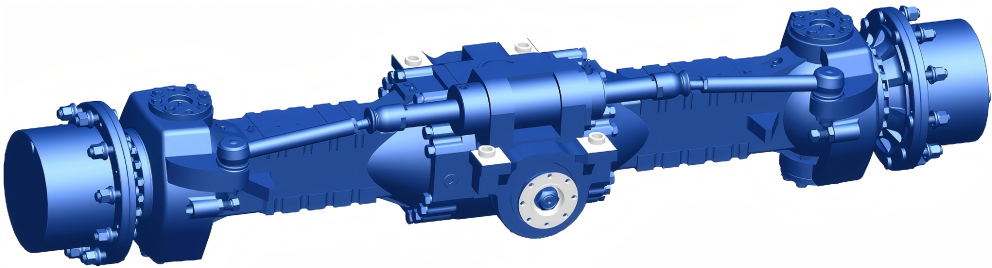

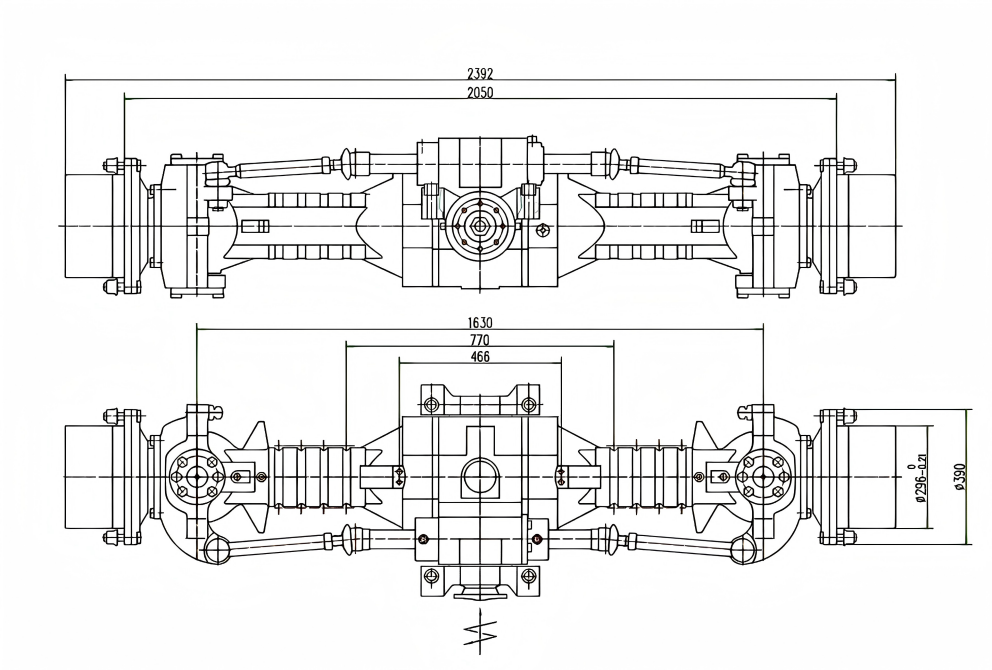

Wheeled Wet Spray Machine Drive Shaft
1.Gleason spiral bevel gears are used for the main transmission, providing excellent transmission efficiency and minimizing noise during operation.
2.A planetary reduction unit of the "NGW" type is installed in the wheel part.This design differs in compactness and rational organization.
3.Disc brakes with calipers are used in the braking mechanism.They have significant braking torque, ensuring smooth and reliable stopping.
4.The hydraulic steering assist ensures easy and agile maneuvering.
5.The axle housing made of solid cast steel demonstrates excellent load-bearing capacity and durable rigidity.
6. This equipment is well-suited for 16-20 ton wheeled wet spraying machines.
MAIN CHARACTERISTICS:
This equipment is designed for 16-20 ton wheeled wet spraying machines and offers superior performance.The main transmission uses Gleason spiral bevel gears for high-efficiency and low-noise transmission, a disc brake system with a caliper provides large and stable torque for reliable stopping, and a hydraulic power steering for maneuverable control.The fully cast steel axle body provides excellent load-bearing capacity and rigidity, making it a reliable choice for working in challenging conditions.
Main Technical Parameters:
Overall transmission coefficient |
14.77/16.91/22 |
Maximum torque output |
50000 N.m |
Dynamic load on each axis |
13000Kg. |
Braking torque of one caliper |
21000 N.m |
Brake Oil Pressure |
4Mpa. |
Braking movement |
45-128ml. |
Angle of rotation (inner wheel/outer wheel) |
37°/ 30° |
Pressure in the steering cylinder |
14Mpa. |
Requirements for oil for the drive axle (API classification) |
GL-5: 85W/90 gear oil (use at temperatures above -12°C) GL-5: 80W/90 gear oil (use at temperatures above -26 ° C) |
Brake fluid |
Hydraulic oil L-HL46 |
