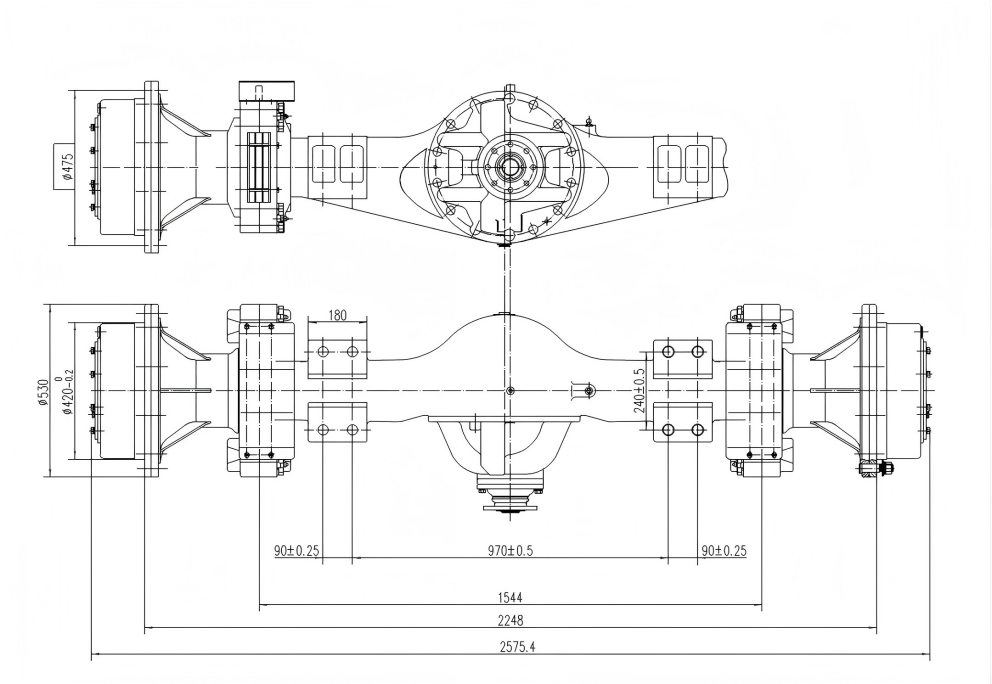

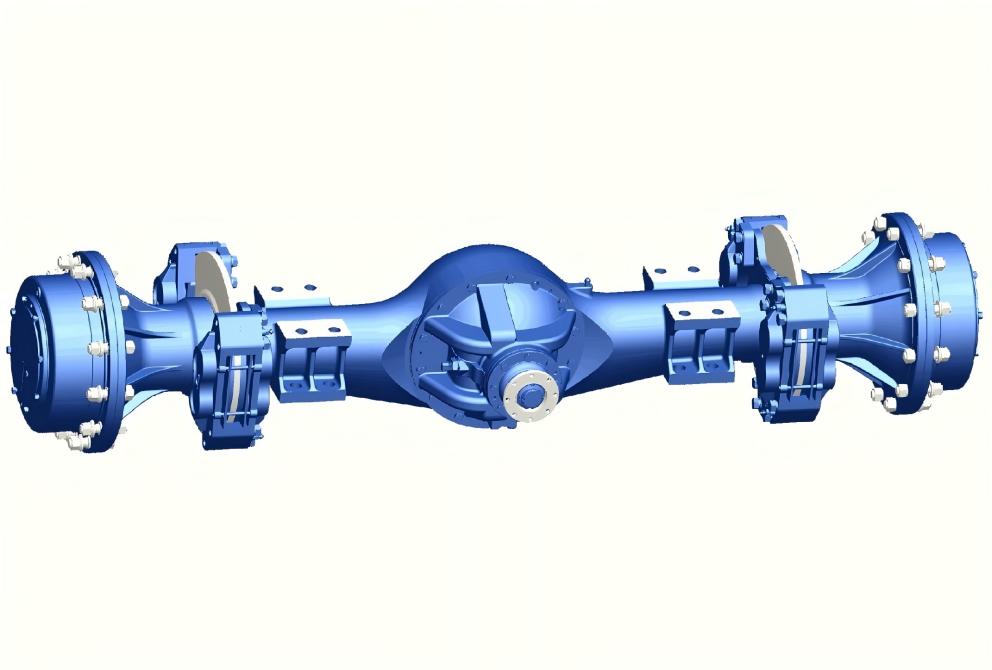

Drive axle bridge of a forklift with wide discs
1. Two-stage gear transmission provides a variety of gear ratios.
2.The main gearbox with Gleason conical gear provides high efficiency and low noise level.
3.The planetary gearbox type NGW has a rational and compact design.
4.The steel cast bridge body has high load-bearing capacity and rigidity.Available in various connector sizes.
5. The installation of a disc brake caliper guarantees high braking torque and reliability.
MAIN CHARACTERISTICS:
The product has a two-stage reduction drive system.At the first stage of reduction, a drive system with a conical helical gear transmission according to Glisson is used, and for reduction at the wheel end, a planetary gear mechanism of the NGW type is applied.The main body is made of cast steel using precise casting techniques.
MAIN TECHNICAL PARAMETERS:
Overall overall gear ratio |
22.85 |
Maximum input torque |
5100N.m |
Load on one bridge |
27000Kg |
Brake system oil pressure |
11MPa. |
Braking torque of one caliper |
13050N.m |
