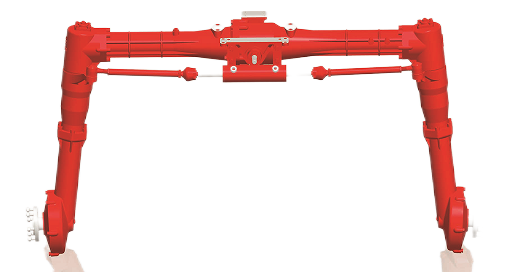

Sprayer drive axle 25 hp
1.Various gear ratios are ensured by a three-stage gearbox.
2.The main gearbox uses Gleason conical gear, which ensures high transmission efficiency and low noise level.
3.For intermediate transmission and final output, a bevel gear with straight teeth is used, which is rational and compact.
4.The ground clearance has been improved by adding a side structure to the transmission shaft, which increases off-road capability.
5.High-quality ductile cast iron is used for all housings, which ensures high load-bearing capacity and high rigidity.
6. Thanks to the front and rear dual swivel frames, the center of gravity of the vehicle is lowered, which increases safety and reliability.
MAIN CHARACTERISTICS:
Our self-propelled rod sprayer has excellent characteristics.Regarding the transmission mechanism, the innovative three-stage gearbox configuration provides several gear ratios, ensuring smooth and efficient power transmission.The main gearbox, equipped with Gleason conical gears, operates with high efficiency while maintaining a minimal noise level.Straight bevel gears used in intermediate and final transmissions not only ensure stable operation but also contribute to compact and rational design.From a design perspective, adding a side transmission shaft effectively increases ground clearance, significantly enhancing the off-road capabilities of the sprayer.Made from high-quality cast iron, the bearing housing provides exceptional strength and durability.The design of the front and rear double swivel frame reduces the center of gravity of the machine, thereby increasing overall safety and reliability during operation.Thanks to the installed differential lock, the sprayer can easily overcome muddy areas.This sprayer is perfectly suitable for models 14.5 - 25PS, making it an ideal choice for agricultural spraying tasks.

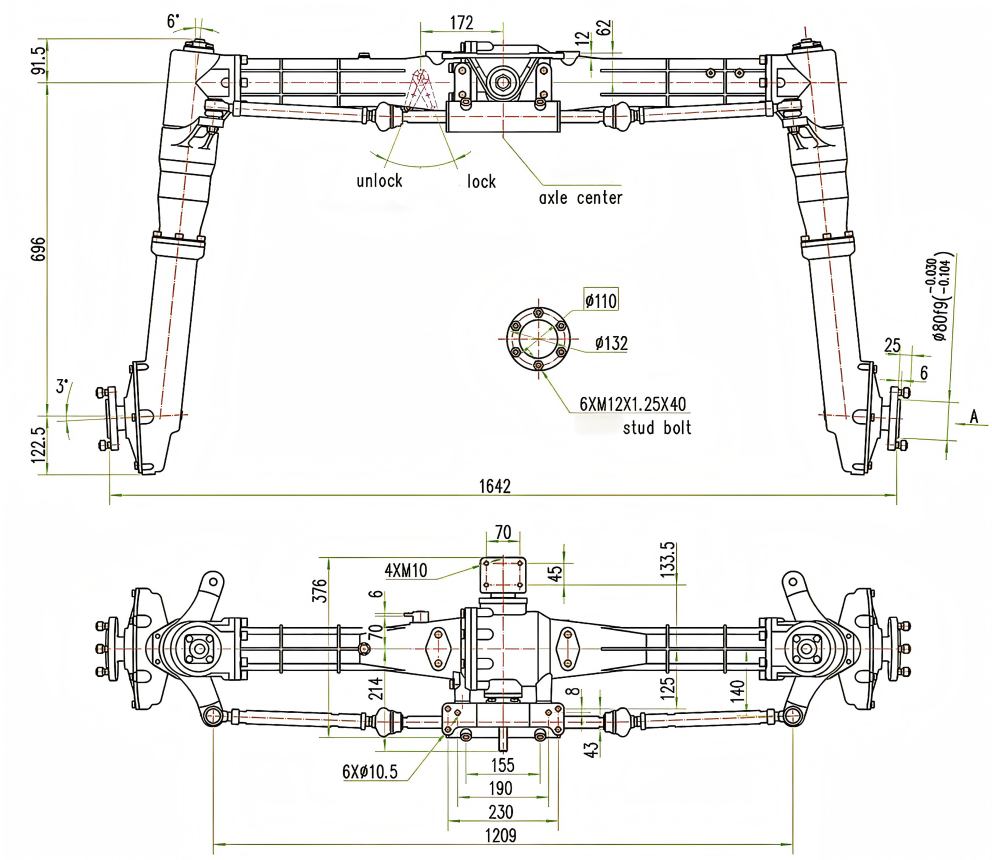

Main Technical Parameters:
Overall overall gear ratio |
21.43 |
Wheel rotation angle |
25° |
Steering cylinder movement |
67.5mm. |
Max.working pressure |
16Mpa. |
Requirements for oil for the drive axle (API classification) |
GL-5: transmission oil 85W/90 (use at temperatures above -12 ° C)
|
Input shaft spline parameter |
EXT 127x1.27Mx20P. |
