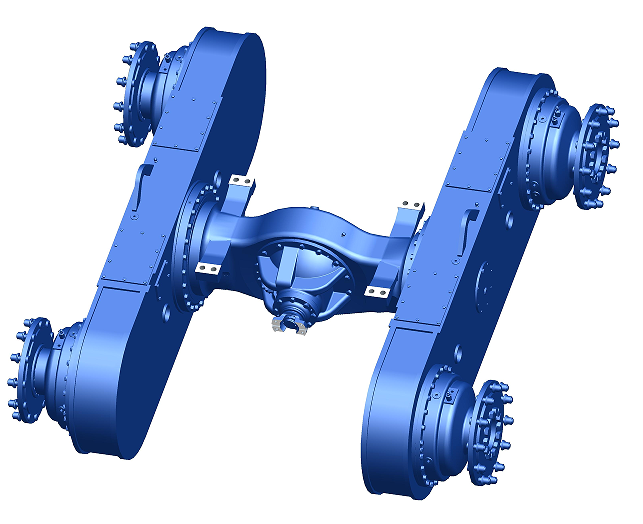

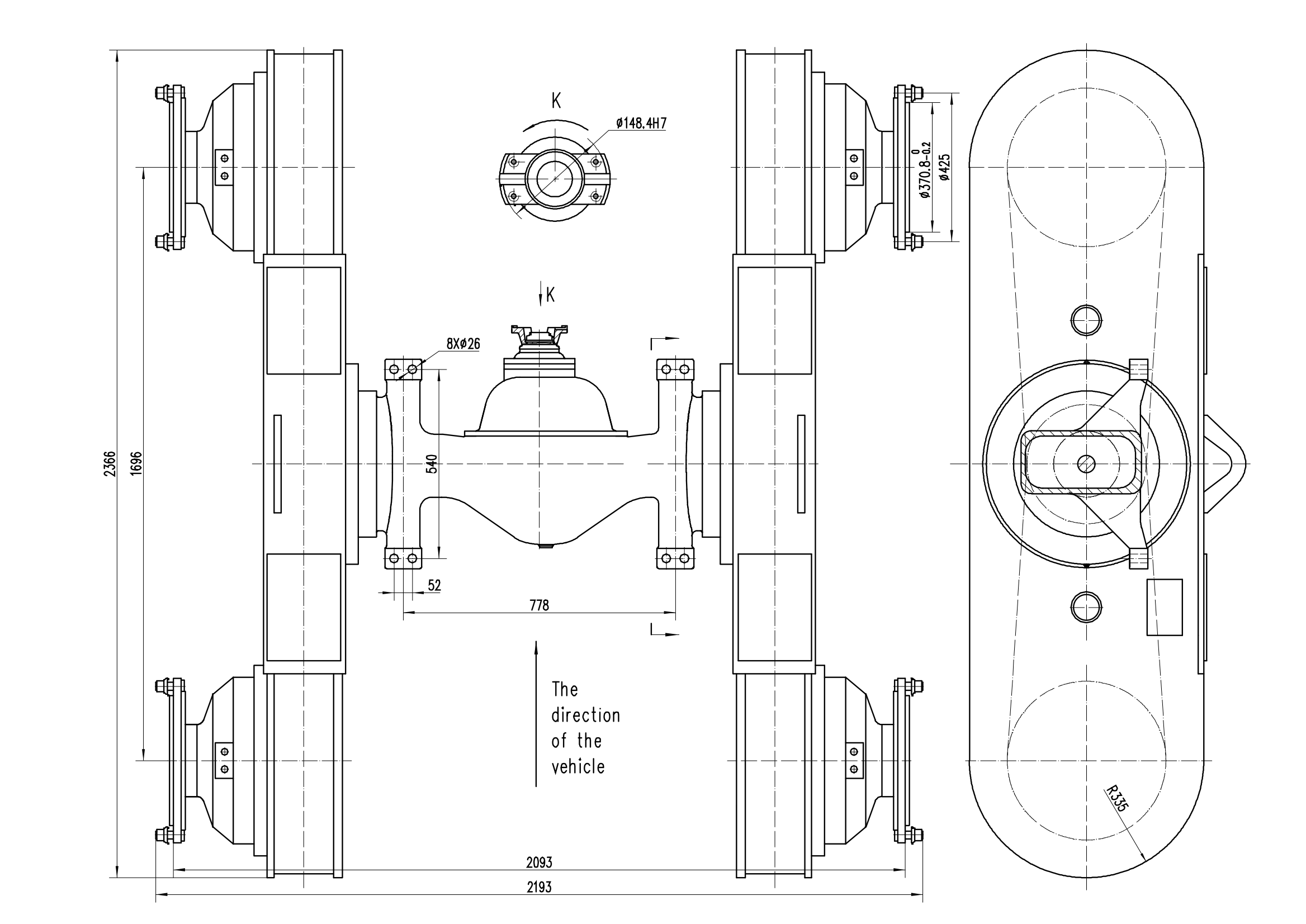

Rear axle of the grader with swivel mechanism
1. Integrated axle housing with high load capacity and simple design.
2. Universal main gearbox, independent wheel hubs, ease of procurement and assembly.
3. Five-axis planetary gearbox structure with uniform load distribution on gears and long service life.
4. Swinging design with rotating bearing, ensuring durable sealing and high load capacity.
5. Closed Multi-disc Wet Brakes with Stable, Fast, and Reliable Braking Characteristics.
6. Designed for graders with an engine power of 260-270 horsepower.
Introduction:
Rear Grader Axle With Swing Mechanism PY260ZH The corresponding components have many advantages. The one-piece axle housing withstands the load and is easy to design. Universal main transmission with independent wheels, easy to purchase and assemble. Five-axis planetary reduction structure for load balancing and durability. Slewing bearing design, durable and stable sealing, excellent load bearing. Closed wet multi-disc brakes for reliable and fast braking. Designed for 260 – 270 HP graders, from construction to brakes, every aspect is meticulously crafted, with advanced technology and reliable performance to provide reliable protection for the job.
Main Technical Parameters:
Overall overall gear ratio |
18.498 |
Maximum input torque |
5400 N.m |
Maximum Input Speed |
4200rpm |
Rated load of the bridge |
17000Kg. |
Brake system oil pressure |
8-10 MPa |
Braking torque of one caliper |
20000-25000 N.m |
Drive Axle Oil Requirements (API Classification) |
GL-5: 85W/90 gear oil (use above -12°C) GL-5: 80W/90 gear oil (use at temperatures above -26°C) |
Requirements for brake fluid for calipers |
Hydraulic Oil L-HL46 In cold areas: L-HV46 anti-wear low-freezing hydraulic oil |
