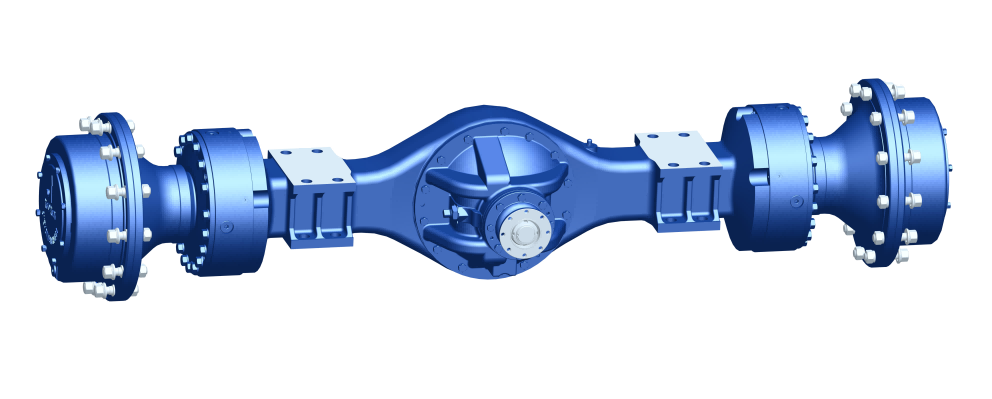

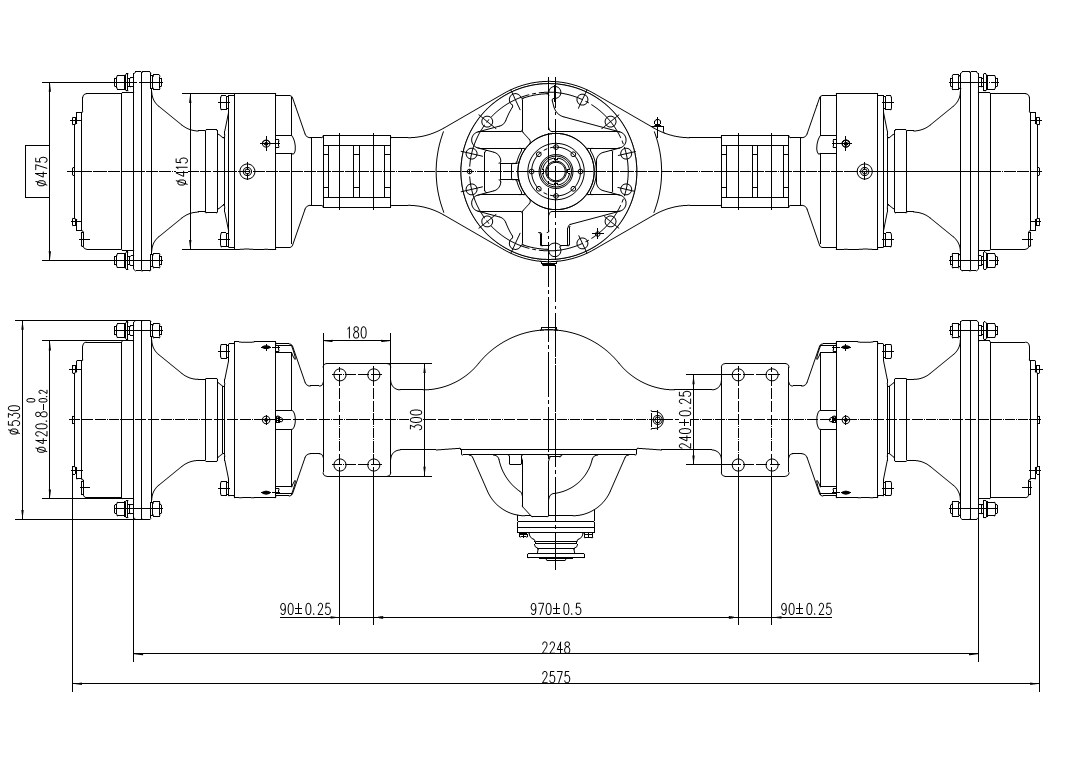

Loader Drive Axle Model
1. Two-stage gear transmission with choice of different gear ratios.
2. The main transmission adopts hypoid Gleason bevel gears, ensuring high efficiency and low noise.
3. The wheel reducer is made according to the planetary NGW scheme, compact and rational.
4. The braking system is closed-type with multi-disc wet brake, hydraulic actuation, spring release, stable and reliable performance.
5.A no-spin differential can be installed to improve cross-country ability.
6.Designed for ZL50 series forklifts.
Introduction:
Equipped with a two-stage gear structure, it can generate a wide range of gear ratios to accurately match different working conditions. The main gearbox uses Gleason bevel gears, which, due to their superior design, provide the perfect balance between high-efficiency transmission and low noise, resulting in smooth and silent power transmission. The NGW type planetary gear is characterized by a compact layout and reasonable use of space. The braking system is a closed wet-type multi-disc system based on the principle of hydraulic pressure and spring expansion, which makes the braking process stable and reliable, and ensures the safety of operation at all times. The optional differential with forced lock significantly improves cross-country ability in adverse road conditions. It is specially designed for the ZL50 series and helps to improve performance.
Main Technical Parameters:
Overall overall gear ratio |
22.853 |
Maximum input torque |
5100N.m |
Load on one bridge |
27000Kg |
Brake oil pressure |
10MPa |
Working volume of the single-sided brake |
40-70ml |
Braking moment of one side |
26000N.m |
Drive Axle Oil Requirements (API Classification) |
GL-5: 85W/90 gear oil (use above -12°C) GL-5: 80W/90 gear oil (use above -26°C) |
Brake fluid requirements |
Hydraulic oil L-HL46 |
