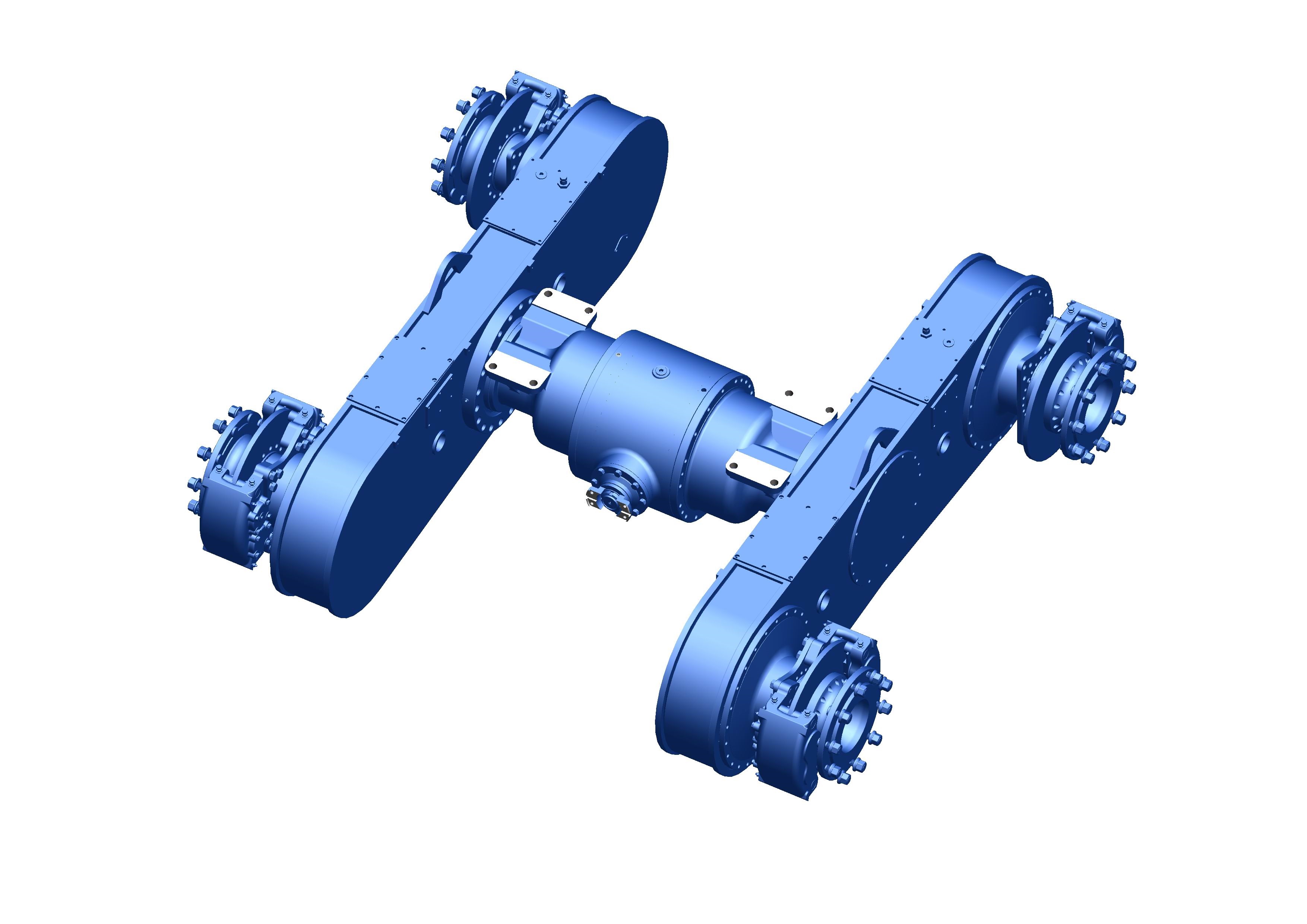

Rear axle of a 220 hp motor grader
1. The smoothness of the grader blade is greatly improved by the gracias of the balanced box structure.
2. The product exhibits outstanding durability, ensuring a stable and reliable output throughout its lifetime.
3. Equipped with a differential with anti-skid No-spin system, it has excellent cross-country ability on difficult terrain. The braking system allows rapid deceleration. The product also has high reliability and ease of maintenance.
4. Suitable for graders with 200-220 hp
MAIN CHARACTERISTICS:

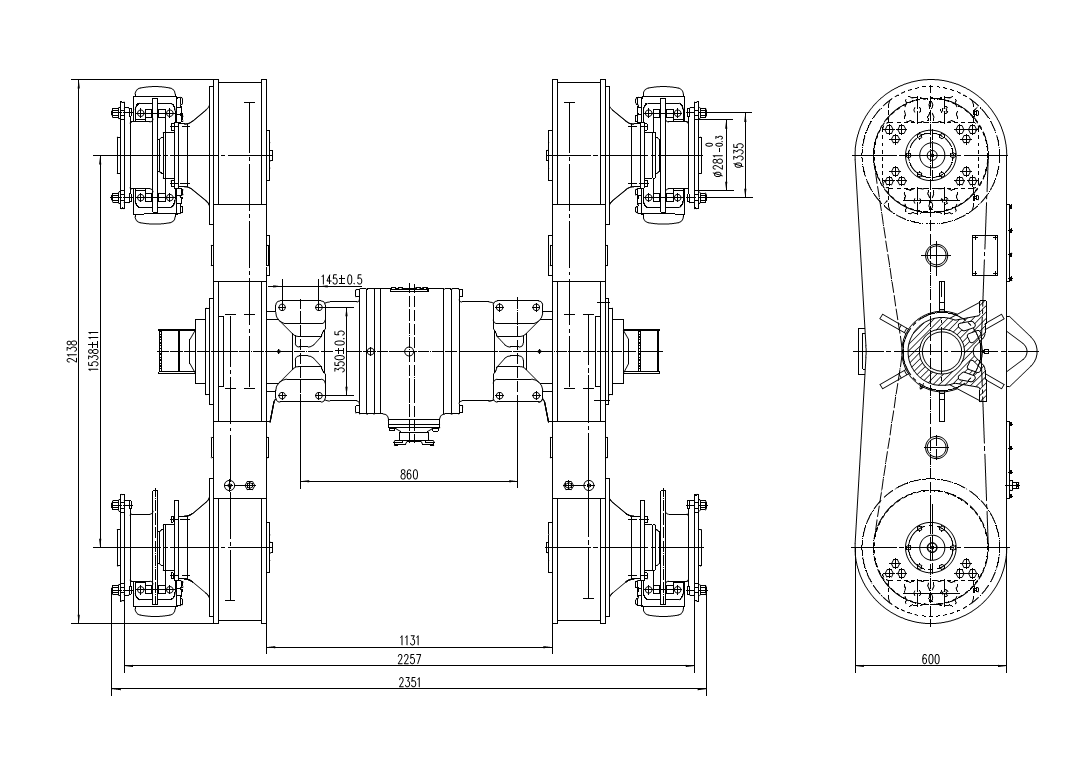

The rear axle of the grader is 220 hp for graders 200-220 hp. In terms of transmission design, it is equipped with a three-stage gearbox device and has a balanced box structure. The heavy-duty roller chain drive was particularly reinforced. The differential system uses a differential with an anti-skid No-spin system, and the braking system is equipped with hydraulic calibration disc brakes.
MAIN TECHNICAL PARAMETERS:
Overall overall gear ratio |
17.834 |
Maximum input torque |
4500N.m |
Maximum Input Speed |
3100r/min |
Load on one bridge |
12500Kg |
Brake system oil pressure |
11MPa. |
Braking torque of one caliper |
13050N.m |
Brake fluid volume of one caliper |
8.8ml |
Requirements for oil for the drive axle (API classification) |
GL-5: transmission oil 85W/90 (use at temperatures above -12 ° C) |
Brake fluid requirements |
Hydraulic oil L-HL46 |
