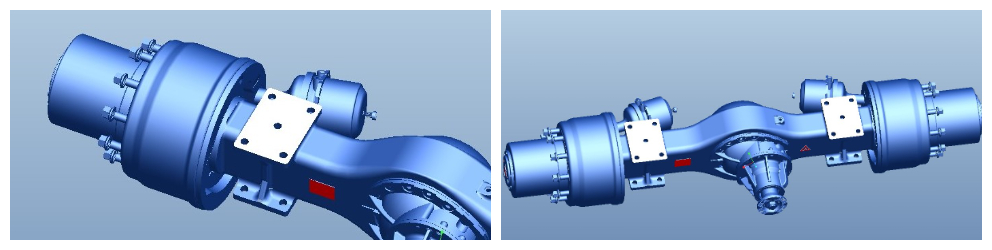

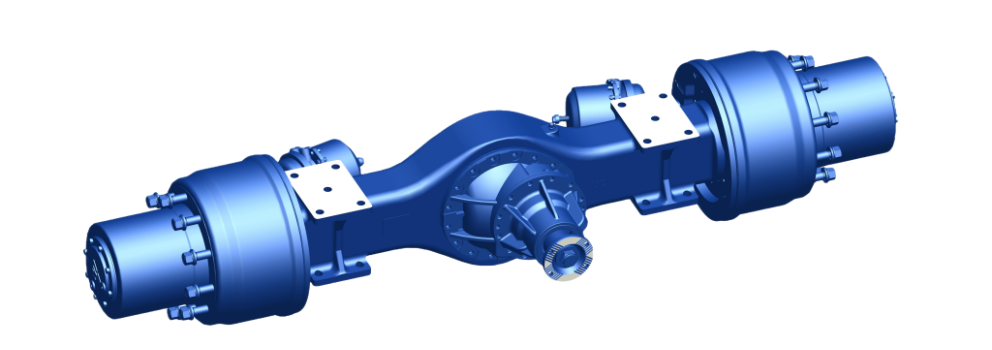

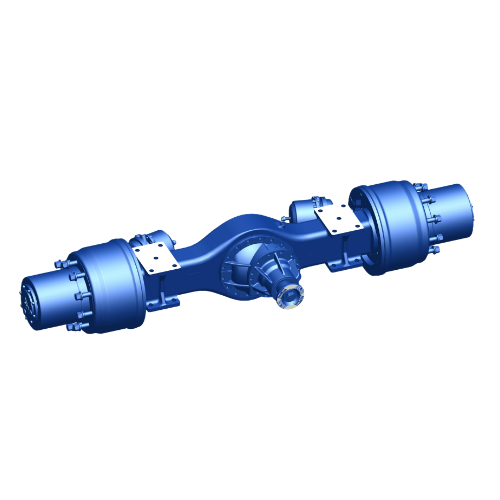

Crane drive axle LTQ30

The LTQ30 crane drive axle is a special front drive axle for 30-ton high-mobility self-propelled cranes and a powerful transmission assembly specially developed to adapt to harsh construction conditions in the field. In view of long-term full-load operation in mines and at infrastructure construction sites, rough driving on unpaved roads, frequent starting and stopping of lifting mechanisms, high temperatures and dust, muddy water, and other complex working conditions, this axle has been reinforced and upgraded based on the three core elements of transmission, bearings, and braking, and is designed to eliminate the common defects of traditional crane axles, such as rapid wear, insufficient strength margin, weak braking, and excessive noise during operation.

After tens of thousands of hours of simulated strength tests on the test bench, the entire axle was sent to overseas construction sites in South and Central Asia for long-term measurements during installation on vehicles. Thanks to stable transmission characteristics, sufficient load capacity, and reliable braking performance, it has become a standard support axle in the automotive industry. The original 30-ton off-road crane ACE produced in India is intended for long-term batch cargo loading and use. Relying on the thoughtful design of this axle, we can provide customized adjustment of the dimensions and parameters of the entire process for different brands of crane chassis and adapt to the various assembly needs of different types of 30-ton high-mobility cranes.

Main technical parameters

Product application areas

1. Standard configuration:

30-ton off-road mobile cranes and off-road pneumatic tire cranes are equipment originally compatible with the LTQ30 axle.

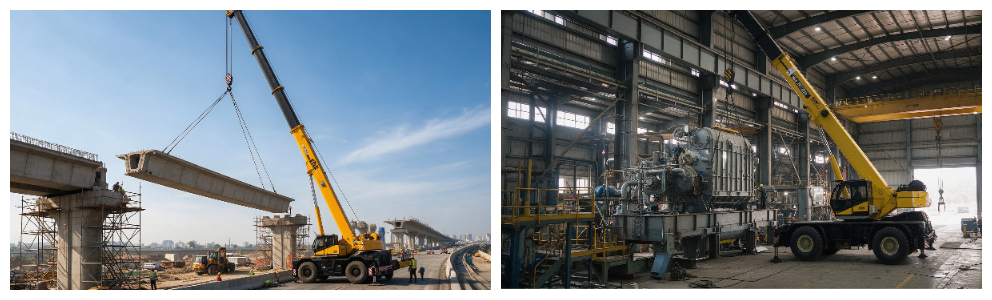

2. Standard operating conditions:

open-pit mining, large construction sites, outdoor agricultural and irrigation work, emergency road repair work, lifting and moving heavy loads at industrial and urban facilities.

3. Adaptation to various climatic conditions:

The axle design, sealing elements, and anti-corrosion treatment ensure compatibility with the harsh climatic conditions of South Asia with its hot climate and dust storms, Central Asia with its severe frosts and permafrost, as well as Southeast Asia with frequent rains and swampy areas. This guarantees resistance to corrosion and leaks during long-term operation.

4. Confirmation through market testing:

All 30-ton ACE series off-road cranes manufactured by ACE are equipped with the LTQ30 axle. There is a significant number of such cranes on the market, as well as complete data on long-term operation at construction sites. The stability of the product has been confirmed through extensive market testing.

LTQ30: design of the crane’s main axle and detailed information on its technical advantages

The LTQ30 crane drive axle (with front drive axle reducer) is divided as a whole into four main functional modules: the main reducer unit, the NGW planetary reducer unit, the wedge brake unit, and the integral cast steel load-bearing housing of the axle reducer. All structural parameters and machining processes have undergone durability testing on test benches, as well as long-term verification on actual construction sites abroad. Each structural component has been optimized to meet the requirements for crane operation under high loads.

Main reducer: high-performance bevel gear transmission from the company “Orikon”

The main reducer is a key element for transmitting power to the LTQ30 crane shaft. It is equipped with a high-performance bevel gear transmission from the company “Orikon” and has a dual advantage compared with traditional spiral bevel gear transmission:

1. Higher structural strength and increased wear resistance:

The contact area of the gear teeth is larger, and at the same full load, the specific load on the teeth is reduced. This effectively prevents pitting erosion of the teeth and breakage during heavy cargo transportation and prolonged off-road travel, significantly extending the service life of the entire transmission system and reducing the cost of subsequent crane repairs.

2. Low noise level and high transmission efficiency:

The smoothness of gear meshing is excellent, which ensures a significant reduction in noise level during continuous operation of the crane under full load. Power losses during transmission are maintained at an extremely low level, which reduces inefficient consumption of engine energy, indirectly lowers the crane's overall fuel consumption, and improves the economic efficiency of equipment operation.

Wheel rim assembly: NGW-type planetary gearbox design

The left and right wheel hubs of the LTQ30 crane drive axle adopt the classic NGW planetary gear reduction scheme — this is a key structural design of the axle for large-scale cranes, achieving a combination of weight reduction and high load capacity:

1. The high degree of structural integration saves space for chassis assembly:

the compact volume of the planetary gear reduction mechanism reduces the space it occupies in the transverse and longitudinal directions, providing sufficient margin for arranging the chassis oil channels, frame pipelines, and auxiliary components — this is perfectly suited for the compact chassis design of an off-road crane.

2. Uniform load distribution provides outstanding impact and overload resistance:

When the crane moves with a full load, the machine's own weight and the lifting load are evenly distributed among several groups of planetary gears, which eliminates stress concentration in a single gear. As a result, when traveling on gravel, uneven, or bumpy roads, the machine's ability to withstand impacts and overloads is significantly increased.

3. The modular design ensures ease of maintenance:

The wheel rim assembly has a modular design that allows damaged parts to be disassembled and replaced separately — there is no need to disassemble the entire LTQ30 crane axle as a whole. This significantly shortens the time required for maintenance on the construction site and reduces the cost of replacing components, which meets the conditions for simplified repair on overseas construction sites.

Brake unit: a wedge-type brake design that provides an ultra-high braking torque.

The LTQ30 crane trolley is equipped with an integrated wedge brake module, which allows a high braking torque to be achieved within the limited space of a bridge crane. This solves the problem of insufficient braking force and excessive braking distance when a 30-ton crane operates under overload conditions:

1. The braking response is instantaneous, without delay:

thanks to the short stroke of the wedge brake’s mechanical transmission, sufficient braking force is immediately provided when the braking system is activated. This ensures there is no delay when stopping the crane on a slope, as well as during frequent cycles of lifting and lowering the load.

2. Continuous braking under overload without reducing effectiveness:

even when the crane operates under full load during lowering or during prolonged continuous operation with cycles of lifting and lowering the load, a single press on the brake ensures a smooth reduction in speed. During continuous braking, there is no weakening of the braking force or thermal reduction in efficiency, which ensures comprehensive safety when the crane operates in field conditions.

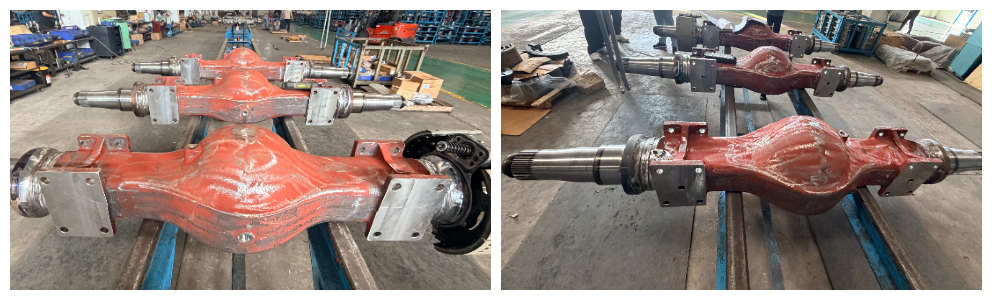

Load-bearing structure: a one-piece cast steel bridge shell, possessing high rigidity and resistance to deformation.

The shell of the LTQ30 crane axle is manufactured using one-piece cast steel technology, which makes it possible to eliminate the shortcomings inherent in traditional separate welded bridge shells — cracks in the welds and insufficient overall rigidity:

1. Ultra-high overall structural rigidity:

The one-piece cast steel eliminates the presence of weak welded seams, so the shell does not deform or bend even under full load and strong impact forces on the road surface. This guarantees the absence of half-axle displacement and gear tooth displacement during prolonged continuous operation under high load.

2. Surface treatment for protection against corrosion and impacts:

the entire shell undergoes treatment for corrosion protection and passivation, which allows it to withstand exposure to construction dirt, gravel impacts, and corrosion from rainwater. This makes it suitable for operation in South Asian conditions with frequent rains and high dust concentration.

3. Sufficient strength margin:

the shell design provides a significant strength margin, which makes it possible to cope with non-standard situations — temporary overloads at a construction site and emergency loads. This increases the equipment's resistance to malfunctions.

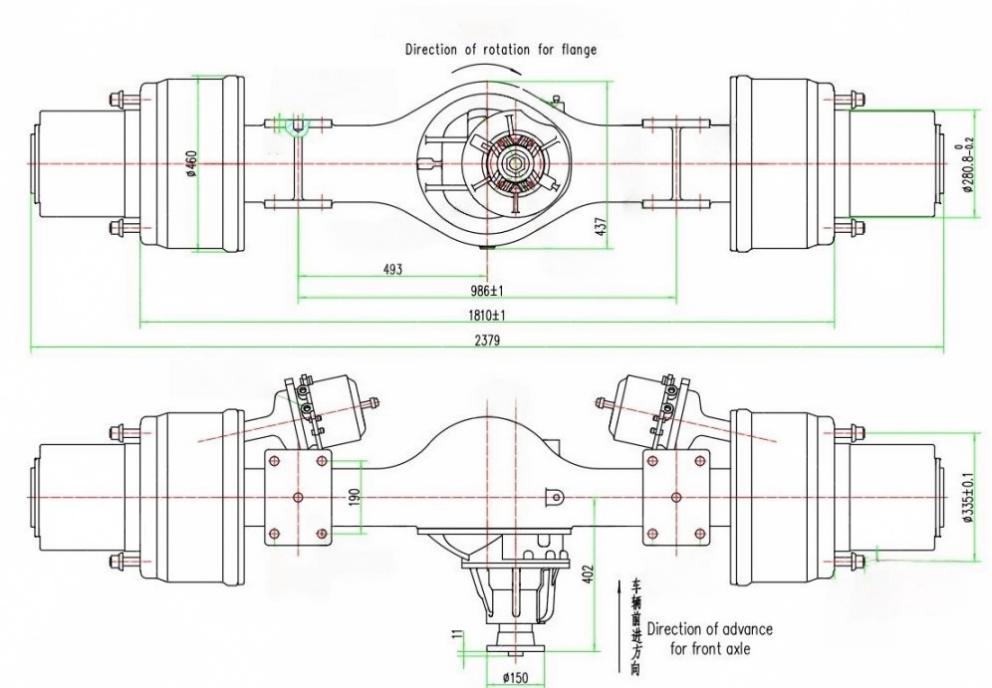

LTQ30 — standard technical specifications and customized axle services for the LTQ30 chassis.

Standard compatibility parameters.

The LTQ30 crane drive axle is a standardized mass-produced front drive axle. The factory provides uniform assembly parameters — dimensions, gear ratio, and rated load — which allows it to be used directly in the chassis of popular 30-ton rough-terrain cranes on the market. All major models of 30-ton rough-terrain cranes from the Indian company ACE are built on the basis of this standard version. After purchase, the manufacturer does not need to make secondary changes to the design — assembly of finished machines can begin immediately.

Comprehensive custom development and modification services for LTQ30 axles for construction machinery manufacturers worldwide

Based on the proven design of the LTQ30 axle, we provide manufacturers of various types of off-road cranes with custom design and modification services at all stages—from model development to mass production—flexibly adapting to the design characteristics of products from different brands:

1. Custom adjustment of chassis mounting dimensions and transmission gear ratios:

taking into account the power parameters of the customer’s engine and gearbox, we purposefully adjust the final drive ratio of the reducer and the gear ratio of the reducers on the LTQ30 axle hubs, optimizing traction capability when starting from a standstill and road travel speed, while ensuring high torque under low-speed lifting load and efficiency during long-distance travel.

2. Custom adaptation and adjustment of the brake system:

In accordance with the hydraulic or pneumatic braking system used on the customer’s chassis, we adjust the braking torque of the LTQ30 wedge brake, the specifications of the brake pumps, as well as the interfaces and layout of the brake pipelines, ensuring compatibility with the braking systems of different brands.

3. Prototype manufacturing of new LTQ30 models:

Within projects for developing new crane models, we provide small-batch prototype manufacturing of LTQ30 axles, as well as joint bench testing. At the same time, we provide complete load data and durability test reports, which shortens the development cycle for new models and reduces the high costs of independently developing bogies.

4. Flexible serial production planning and stable supply:

Whether it is small sample orders for the LTQ30 or large mass-production orders — over a thousand units per month — the intelligent flexible production line enables flexible production planning. Combined with well-established cross-border logistics solutions, this ensures uninterrupted delivery of products to the main manufacturer’s production lines. Customers engaged in long-term strategic partnerships can take advantage of exclusive measures — safe inventory reservation and priority production planning and delivery.

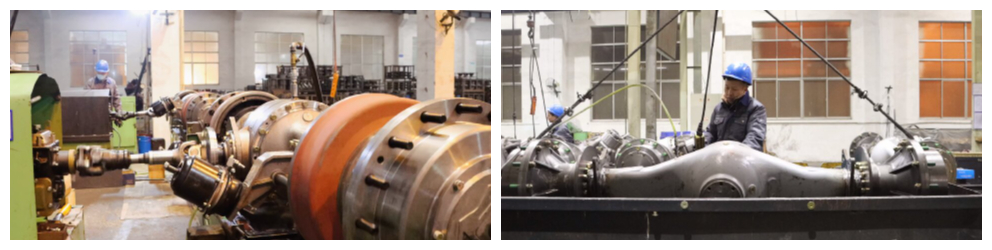

The LTQ30 is a quality control system covering all stages of crane axle production.

Before shipment, every finished LTQ30 crane axle undergoes six strict quality control stages. All quality control standards comply with the requirements of major international OEM manufacturers and suppliers, ensuring consistent characteristics and stable operation of every axle leaving the factory:

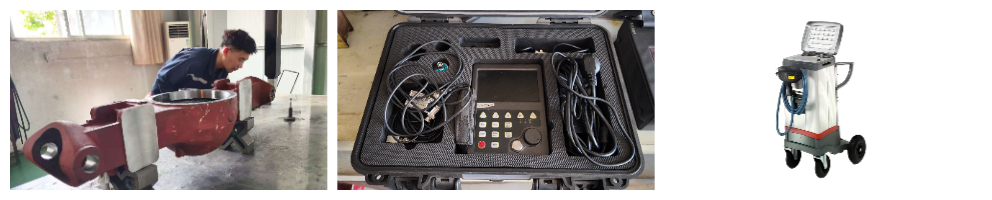

1. Loss-free inspection of raw materials upon arrival at the factory:

all incoming materials — steel blanks for the housings of LTQ30 crane drive axles, alloy steel for heavy gears, bearings, sealing elements — undergo full inspection. To identify internal cracks and material non-compliance with standards, spectral material analysis and ultrasonic non-destructive testing are used. This makes it possible to eliminate potential axle faults at the initial stage.

2. Precise machining of parts and inspection of all dimensions:

after the completion of gear grinding for LTQ30 crane drive axles, drilling of holes in axle housings, and machining of mounting flanges, the accuracy of all dimensions is checked using a coordinate measuring machine. This guarantees uniformity of tolerances during the machining and assembly of all parts.

3. Inspection of the tightness and smooth operation of the assembly:

After the main reducer of the LTQ30 crane drive axle, the wheel assembly, and the brake assembly are assembled separately, the smoothness of rotation and the sealing tightness are checked one by one to prevent semi-finished products from leaking due to oil leakage and abnormal noise defects during the assembly process.;

4. Reliable simulation of all operating conditions of the LTQ30 platform with full load on the entire axle:

Each finished LTQ30 crane axle is equipped with a special heavy-duty test bench that continuously simulates all operating conditions during lifting, off-road driving, and frequent braking, and monitors temperature rise, operating noise level, braking torque, and sealing effectiveness throughout the entire process, as well as keeps a complete record of the test results of each axle.;

5. High-pressure watertight seal leakage test for the entire machine:

The finished LTQ30 axle has passed a high-pressure watertightness simulation test to check the axle housing, end cover, and brake line joint for oil and water seepage, and is suitable for operation in rainy and humid environments at overseas construction sites.;

6. Final factory inspection and documentation with a unique traceability number:

All inspected LTQ30 crane axles are assigned independent and unique product traceability numbers, confirming the factory certificate of conformity and a complete set of inspection reports; all production and test data for the entire batch are permanently kept on file in accordance with the traceability audit requirements for the full life cycle of equipment manufacturers’ products.

Consultation on cooperation with finished machinery manufacturers

If your company is engaged in the development and manufacturing of 30-ton off-road cranes and is also looking for an axle supplier for cranes that has passed extensive verification with major overseas manufacturers, supports custom development, and has a well-established and reliable quality control system, we can provide you with a complete set of original axle solutions for LTQ30 cranes, support for custom development, and wholesale supply proposals.
