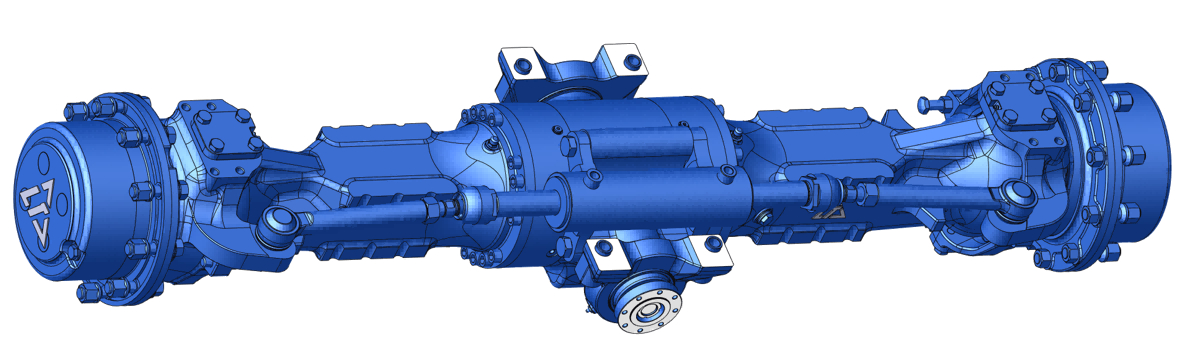

Leading axis of excavators-backhoe loaders
1. Two-stage deceleration, various speed ratio options to meet the needs of different models.
2. Closed multi-disc brake with wet coating, high braking torque, stability and reliability.
3. The overall design of the rotating frame reduces the center of gravity of the vehicle, simplifies frame installation, and improves safety performance.
4. Limited slip differential, forced differential lock, high off-road capability in complex operating conditions.
5.Modular design, flexible adjustment of installation distance, quick and efficient coordination.
MAIN CHARACTERISTICS:
This device, designed on a modular principle, provides flexible adjustment of installation distance for quick coordination, suitable for various models.The device is equipped with two-stage deceleration with different speed coefficients.The closed multi-disc wet type brake provides a large, stable, and reliable braking torque.The overall design of the rotating frame reduces the center of gravity of the vehicle, simplifies frame installation, and enhances safety.In addition, thanks to the differential with limited slip and forced differential lock, it provides high off-road capability in complex operating conditions.
Main Technical Parameters:
Type |
LTW32R. |
LTW43R. |

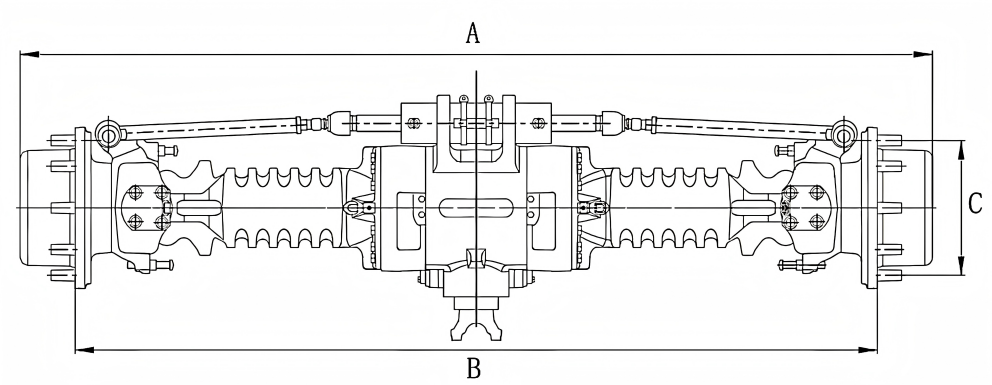

Total length of bridge A (mm) |
2150/2350 |
2150/2350 |
Mounting distance of rim B (mm) |
1900/2145 |
1900/2145 |
Mounting dimensions of rim C (mm) |
10-M22x1.5 on ø 335. |
10-M22x1.5 on ø 335. |
Total gear ratio |
19.04 |
19.038 |
Gear ratio of the wheel |
6.923 |
6.923 |
Maximum rotation angle |
45° |
45° |
Brake system |
Brake system |
Brake system |
Differential |
Self-locking differential and differential lock |
Self-locking differential and differential lock |
Maximum output torque (Nm) |
32000 |
43000 |
Dynamic load |
7500 |
10000 |
Static load |
18750 |
25000 |
