Why are the front and rear drive axles of a forklift connected differently to the frame?

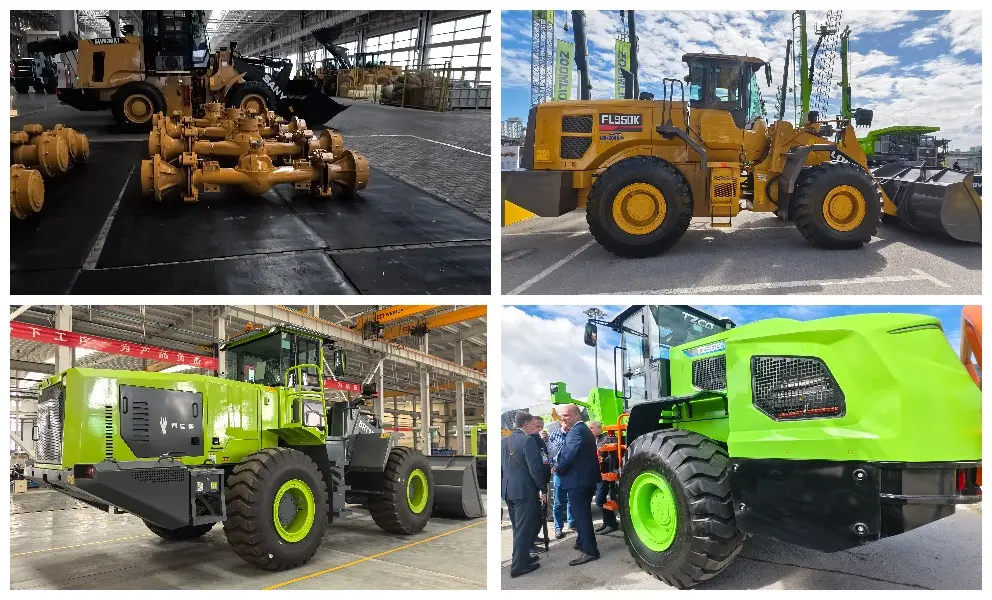

Loaders, as key machinery in the road construction industry, are widely used in mining sites, ports, construction sites, and road works. Most wheel loaders are equipped with two drive axles, with the front and rear axles together generating the machine's traction force. Experienced operators and maintenance specialists notice a specific feature: the loader's front drive axle is rigidly fixed to the frame, while the rear drive axle is movably connected to the frame via a oscillating frame. This structural difference is not accidental but is thoughtfully designed by engineers considering the loader's operating conditions, driving stability, and overall equipment durability.

Rigid mounting: why is the front drive axle immovable?

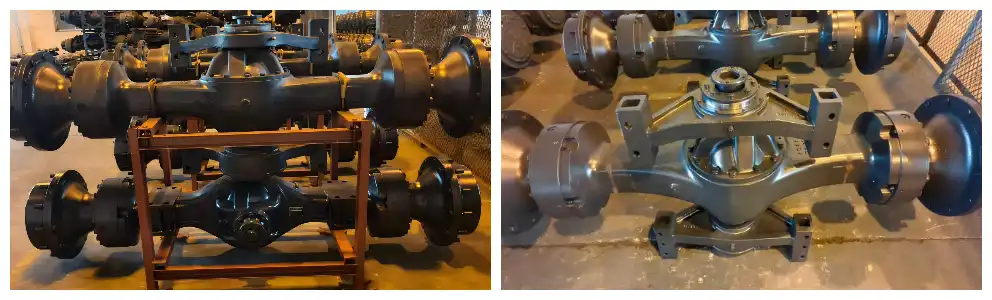

The front drive axle is rigidly fixed to the loader's front frame using bolts and other fasteners. The fixed structure is primarily designed for the loader's main function—loading and unloading operations involving soil excavation.

The loader bucket is mounted at the front. When digging materials, the front axle bears enormous impact loads and variable stresses. If the front axle had a movable connection, the reactive force when the bucket penetrates the ground would change the axle's position, disrupting the bucket's digging angle and reducing loading efficiency. It would also cause the machine to sway, decreasing work precision and safety levels. Rigid mounting ensures a stable base position for the front axle, allowing the bucket to maintain an optimal working position during digging, and power is effectively transmitted to the surface.

In addition, most modern wheel loaders have an articulated frame, with steering achieved via a pivot between the front and rear frame sections. The fixation of the front axle on the front frame ensures precise synchronization with the steering mechanism, guaranteeing clear control and quick response to steering wheel turns. If the front axle has freedom of oscillation, the transmission of torque during steering becomes uncontrollable, posing serious safety risks in operation.

Movable connection via an oscillating frame: why is the rear drive axle capable of oscillation?

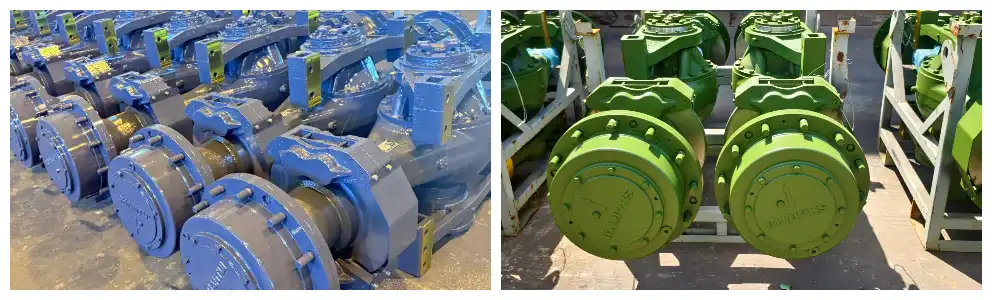

Unlike the rigidly fixed front axle, the rear drive axle is articulated to the rear frame via a swing frame. The main purpose of this design is to ensure constant contact of all four wheels with the ground on any terrain. The working platforms of loaders are often uneven. If the rear axle were rigidly fixed, when driving over rough terrain, the diagonal wheels would lift off the ground due to frame twisting. Wheel lift leads to loss of traction, sharply reducing the machine's pulling force, and in severe cases, the equipment comes to a complete stop. Even more dangerous: when supported on three wheels, the machine's stability critically decreases, posing a risk of tipping over when working on slopes and inclined surfaces.

Due to the connection of the rear axle to the frame via a swinging frame, the axle can perform vertical rotations around the hinge by a certain angle. When one of the rear wheels rides over a bump, the entire axle swings: this wheel rises, the opposite one lowers, and all four wheels remain in constant contact with the ground. All wheels achieve full traction mass, and the tractive force reaches its maximum value. Additionally, the swinging mechanism functions as a suspension, absorbing shocks and vibrations from the surface, reducing severe jolts to the frame and operator cabin, improving operational comfort, and increasing the service life of all machine components.

Interchangeability and standardization: a well-thought-out layout of articulated loaders.

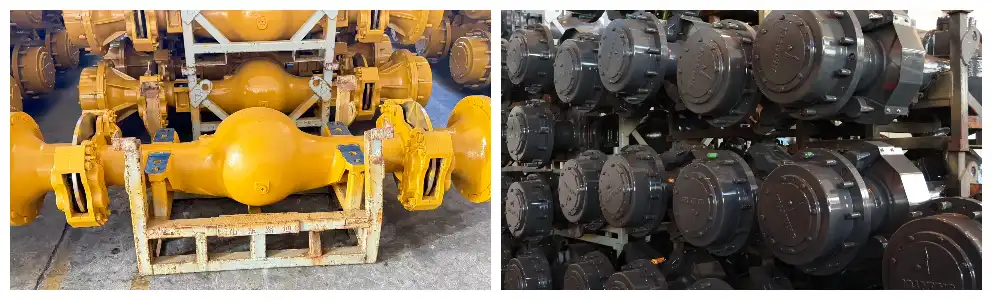

To improve the interchangeability of components and reduce production and maintenance costs, the front and rear axles of articulated loaders have nearly identical designs: the same axle housings, wheel planetary reducers, and braking systems. This greatly simplifies spare parts storage. The difference in the connection methods of the front and rear drive axles to the frame is achieved through different support brackets and a swing frame. The concept of 'same axle housing, different connection' is a vivid example of modular design in road construction machinery.
