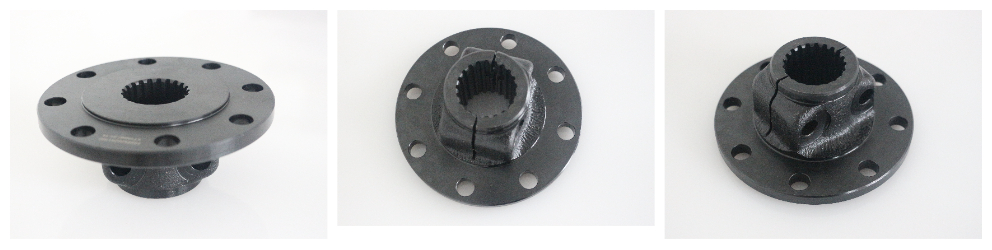

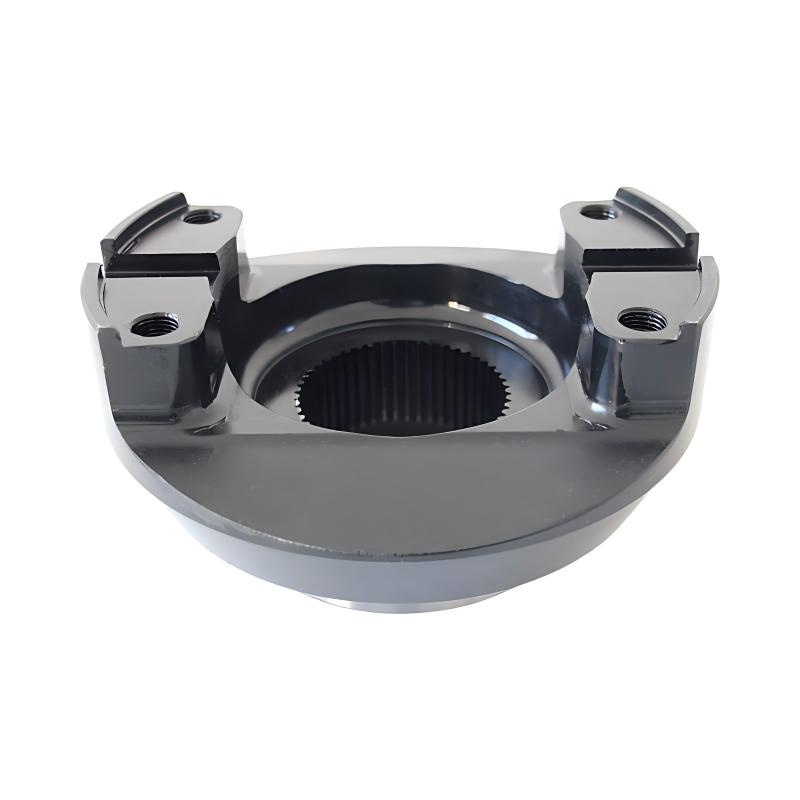

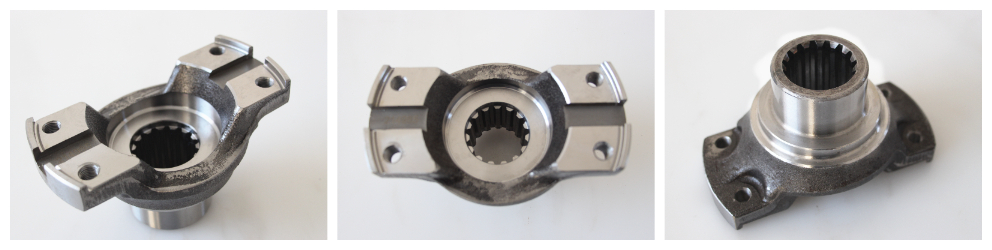

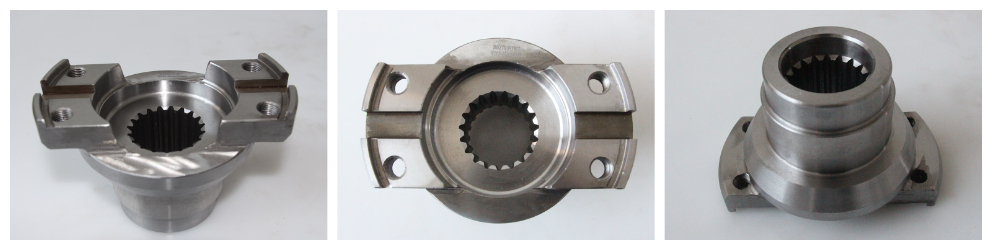

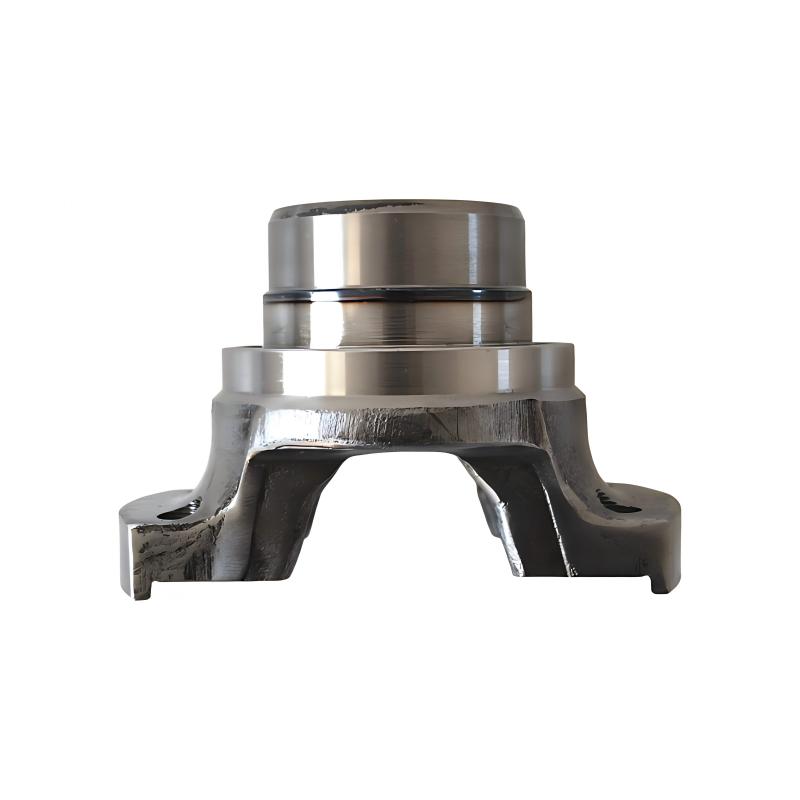

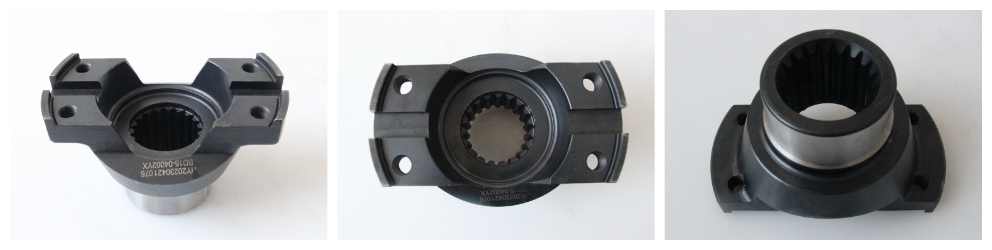

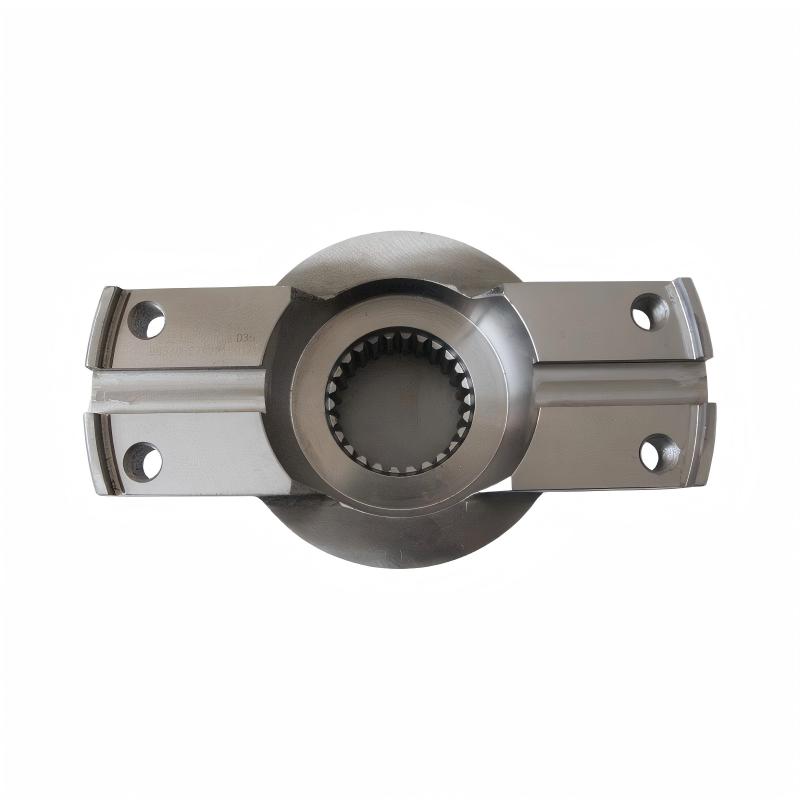

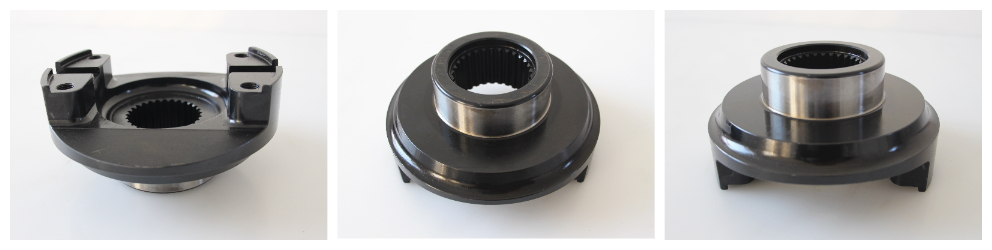

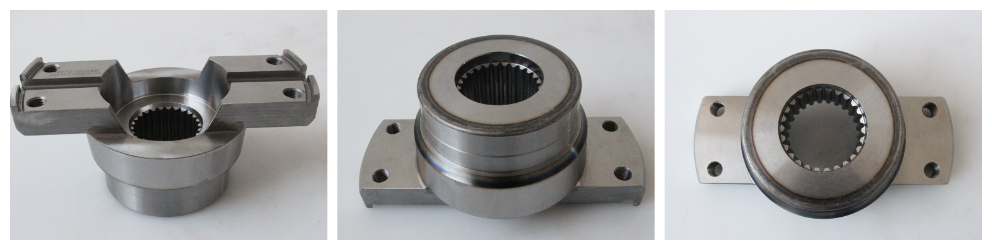

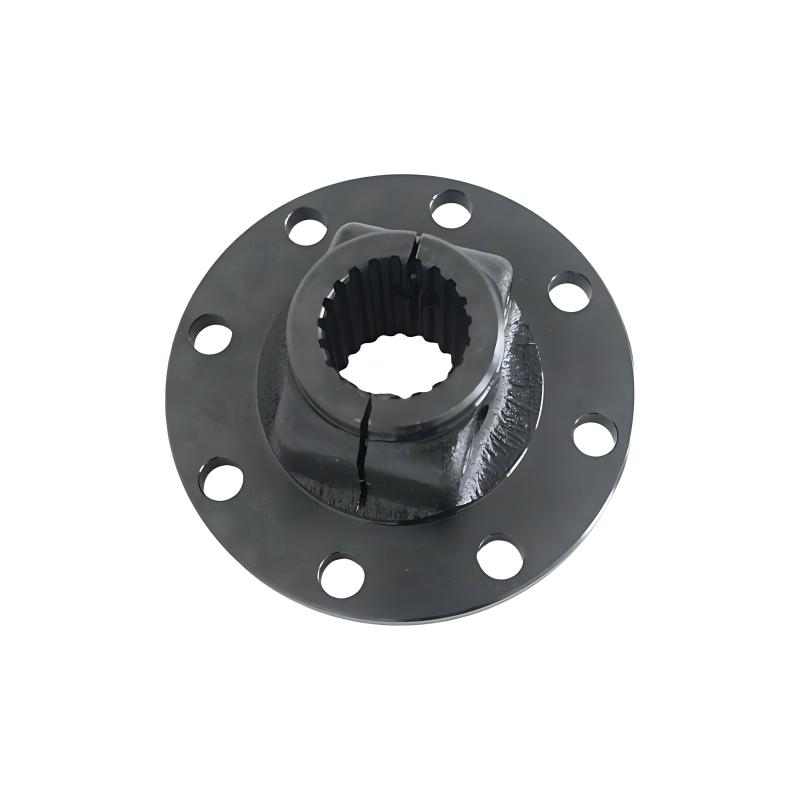

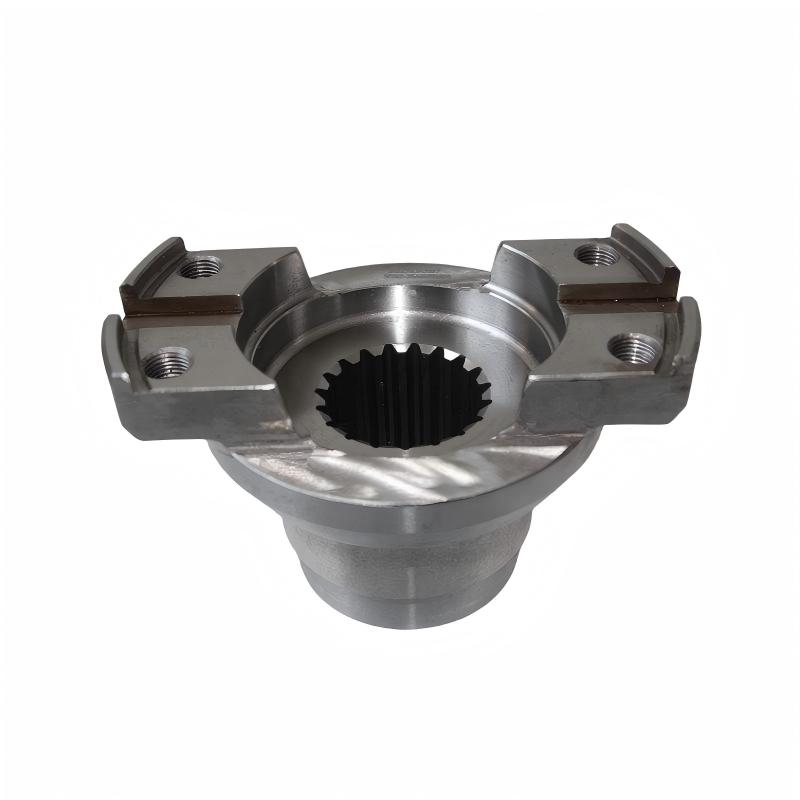

Shaped flanges with internal splines and end keyways

Product overview

Formed flanges with internal splines and face keyways are a key transmission system connection element, specifically designed for high-torque and heavy-duty applications. They are widely used to connect input or output terminals on heavy-duty axles, gearboxes, mining trucks, and large agricultural equipment. The product utilizes a unique combination of a C-shaped internal spline and face keyway, providing dual torsional resistance in a confined space, effectively preventing slippage or loosening that can occur under high loads using traditional single-connection methods. Depending on customer operating conditions and strength requirements, the company offers the flexibility to choose from two manufacturing methods—solid forging or precision milling—to meet a variety of application needs, from standard fittings to extremely high loads.

Product Features

Unique combination of C-shaped slot + end keyway, torsion resistance and reliable：

The profile flanges with internal splines and end keyways feature a dual positioning design consisting of a C-shaped internal spline and an end keyway. The C-shaped spline is responsible for transmitting the primary torque, while the end keyway serves as a secondary structure, preventing torsion and preventing rotation. These two elements work together to significantly improve connection reliability. This design is particularly suitable for heavy-duty applications with frequent starts and stops and forward and reverse gear shifting. It effectively eliminates transmission slippage or loose connections caused by impact loads, ensuring the exceptional performance of airfoil flanges for heavy-duty applications such as mining trucks and heavy-duty loaders.

All of this is forged and molded with excellent load-bearing capacity：

For high-load applications, a combined forging and forming process is preferred for specially shaped flanges used in construction equipment. The metalworking process is continuous, eliminating casting defects, and maintaining high material density. After hardening, the forgings significantly increase tensile strength and yield strength, enabling them to withstand extreme operating conditions, such as strong impacts and sudden overloads. Key components, such as the flange neck and spline tooth base, have been locally reinforced to further extend service life.

High-precision machining, guaranteed interchangeability：

The shaped flanges with internal splines and end keyways are made on a high-precision CNC machining center, and the width, depth and symmetry of the keyway are strictly controlled within tolerances to ensure precise engagement with the output of the supporting drive shaft or gearbox. The C-type internal spline is precision drawn or gear cut, with clear tooth-shaped contours and uniform indexing. Smooth alignment can be achieved without modification after assembly, greatly improving assembly efficiency for OEMs and ease of maintenance and replacement.

A variety of process technologies are available to suit different strength levels:

In addition to general forging and forming, shaped flanges with internal splines and end keyways can also be milled from high-quality alloy steel to meet customer needs. In applications with medium loads or limited space, milling can provide more flexible dimensional adjustment and design optimization while ensuring sufficient strength. The coexistence of these two manufacturing processes allows products to precisely meet the technical support needs of various manufacturers.

Various types of surface treatment, additional anti-corrosion properties:

For various operating conditions, heavy-duty, specially shaped flanges offer a variety of surface treatment options, such as blackening, galvanizing, and phosphating. Blackening is suitable for use in general indoor or dry environments and is cost-effective; the galvanized layer provides good corrosion resistance and is suitable for humid outdoor conditions; and phosphating is used as a base coat, which can further enhance adhesion and overall corrosion resistance. Customers can choose the most appropriate surface protection plan based on the equipment's operating conditions.

Core technologies and quality control

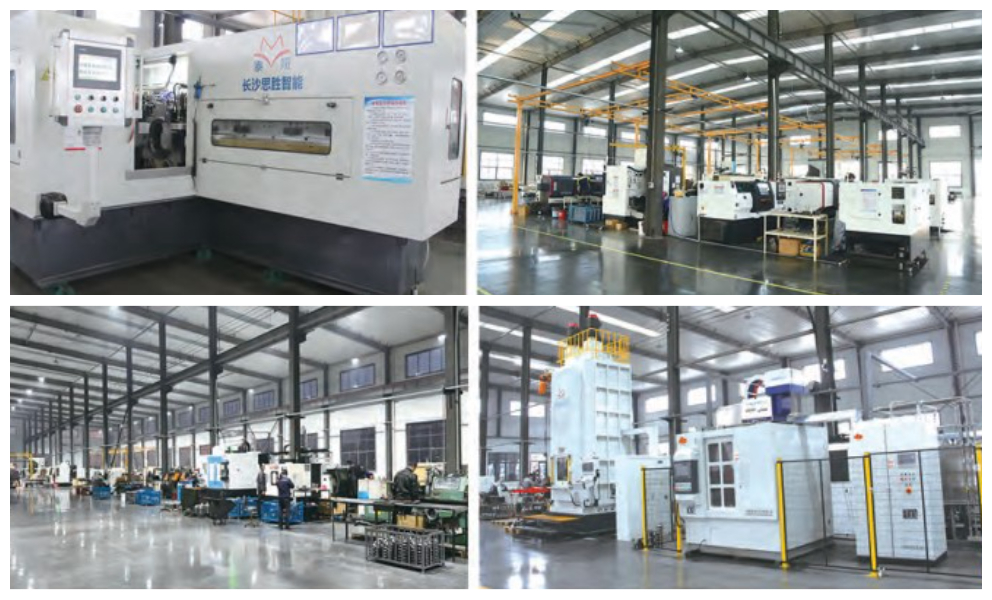

The main processing processes of the shaped flanges with internal splines and end keyways are produced by specialized equipment. The internal C-shaped spline is formed by single drawing on a high-precision pull-up machine to ensure the accuracy of the tooth shape and surface quality; the end keyway is filled by a high-precision machining center, and the keyway has good symmetry. Each element of the special-shaped flanges for construction machinery is inspected by magnetic particle inspection to examine the microcracks on and near the surface before leaving the factory. At the same time, a 100% full-size inspection is carried out, including key indicators such as the distance between the splines, the width and symmetry of the keyway, the end part of the flange. lateral runout, etc., to ensure that each product meets the requirements of the drawings.

Application scenarios and selection recommendations

Shaped flanges with internal splines and end keyways are widely used to connect the input terminals of the transmission system of various construction equipment, mining machinery, and heavy agricultural machinery. On equipment with frequent starts and stops under severe conditions, such as underground scrapers and heavy-duty loaders, the combined design of the C-shaped spline and end keyway effectively copes with the impact torque generated by positive and negative rotation; on quarry dump trucks, the combined forging and forming process ensures the wear resistance of the flange under long-term operation under high loads; In agricultural machinery such as large tractors or combine harvesters, various surface treatment patterns can be adapted to wet and dusty field conditions. When selecting a model, the customer needs to provide information such as torque level, spline parameters, mounting interface size, and auxiliary equipment operating conditions. We can recommend the most suitable process route and surface treatment plan accordingly.

Professional technical services

The company has a professional foreign trade and technical support team that can provide customers with guidance on the selection and technical matching of profile flanges. For non-standard specifications or special material requirements, we can coordinate the efforts of technical experts to carry out customized development in line with the needs of equipment manufacturers to support new models or upgrade old equipment. Quality documents such as material reports, heat treatment schedules, and inspection reports can be provided along with the shipping carton in accordance with customer requirements to facilitate customer quality acceptance. Whether it is a mass purchase of heavy-duty special-shaped flanges or an urgent need for a special-shaped flange for construction machinery as a spare part, we can provide quick response and professional service.
