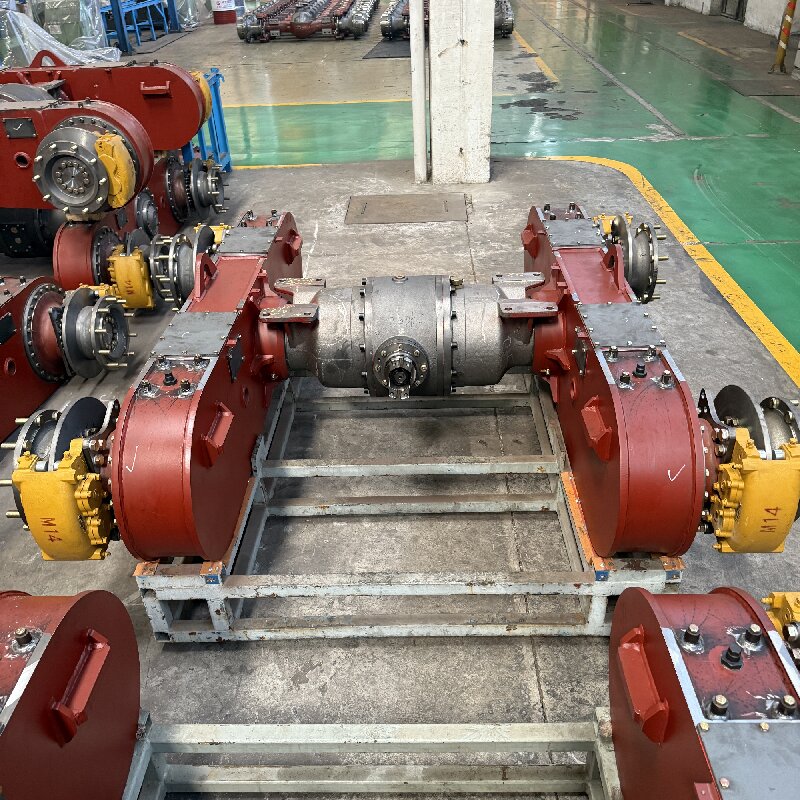

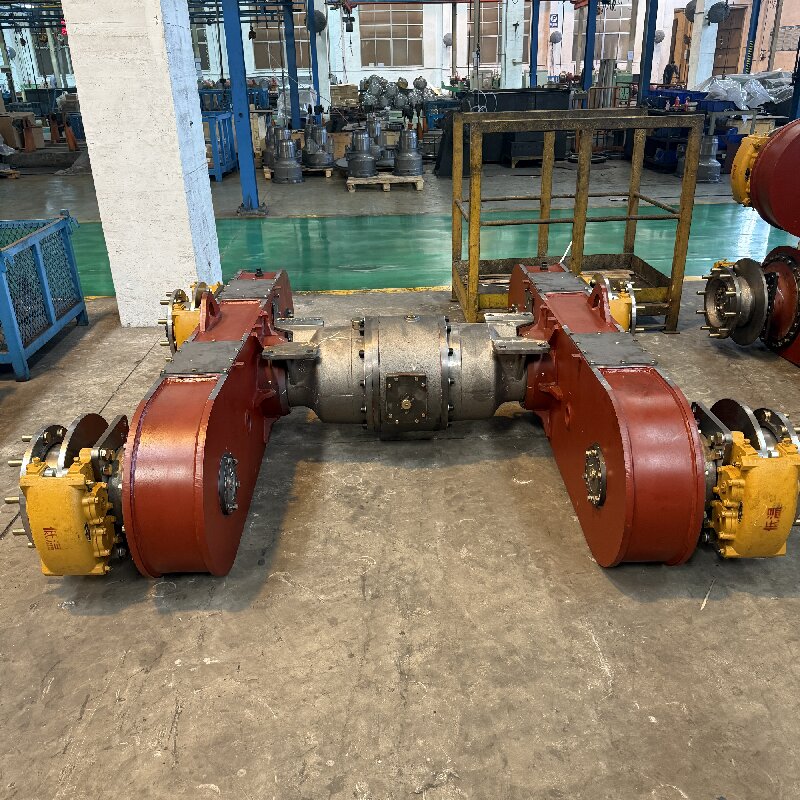

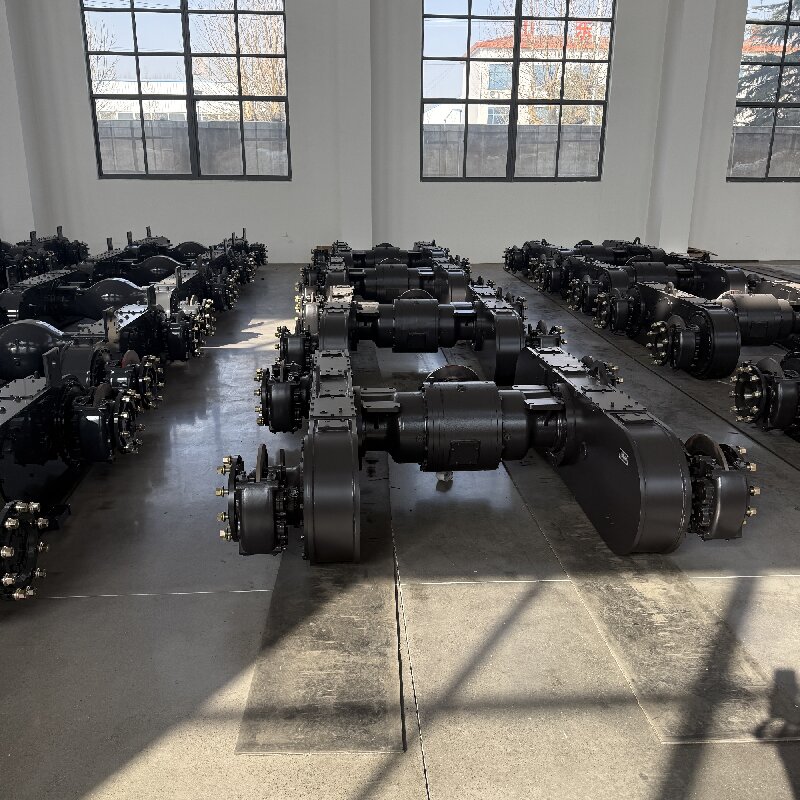

Drive axle of the PY180 grader

As a professional manufacturer with 32 years of construction equipment manufacturing experience, Shandong Lutong is committed to providing high quality grader drive axles and comprehensive cooperation solutions to customers around the world. Our products are widely exported to Russia, Belarus, Iran and other regions. With reliable quality, efficient operation and excellent after-sales service, we have won the trust and appreciation of overseas distributors, construction companies and original equipment manufacturers (OEMs).

Our PY180 grader drive axle is specially designed for all types of motor graders, and can be perfectly adapted to various challenging construction environments, such as municipal road construction, highway maintenance, mine leveling, agricultural land dewatering, etc. It is a key support equipment that helps customers around the world improve grader operation efficiency, reduce operating costs and improve project quality.

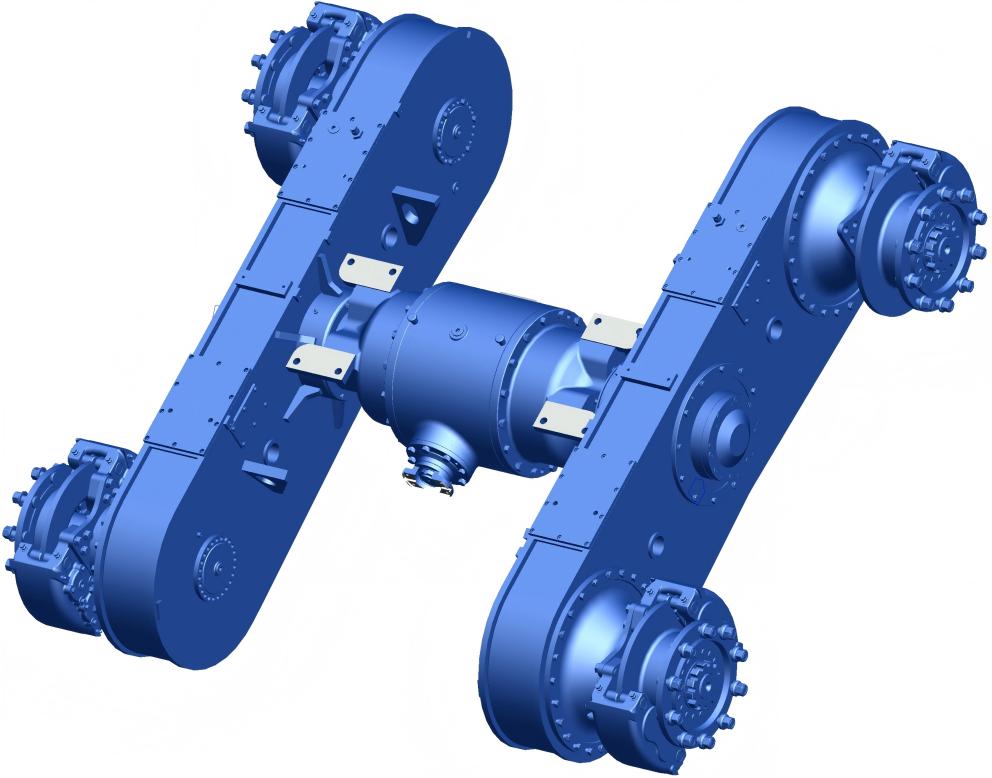

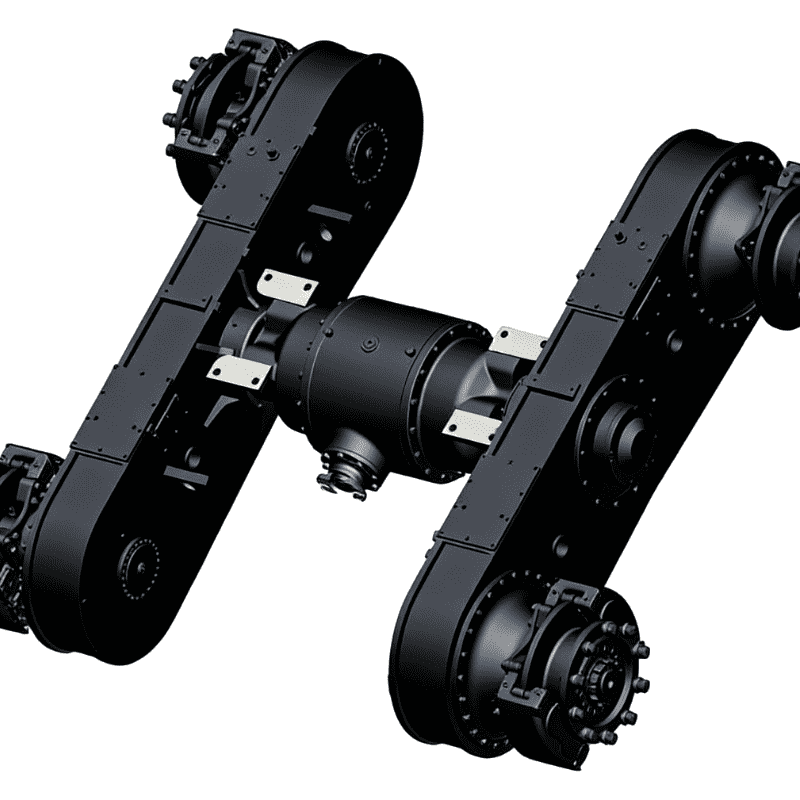

Schema 3D-models:

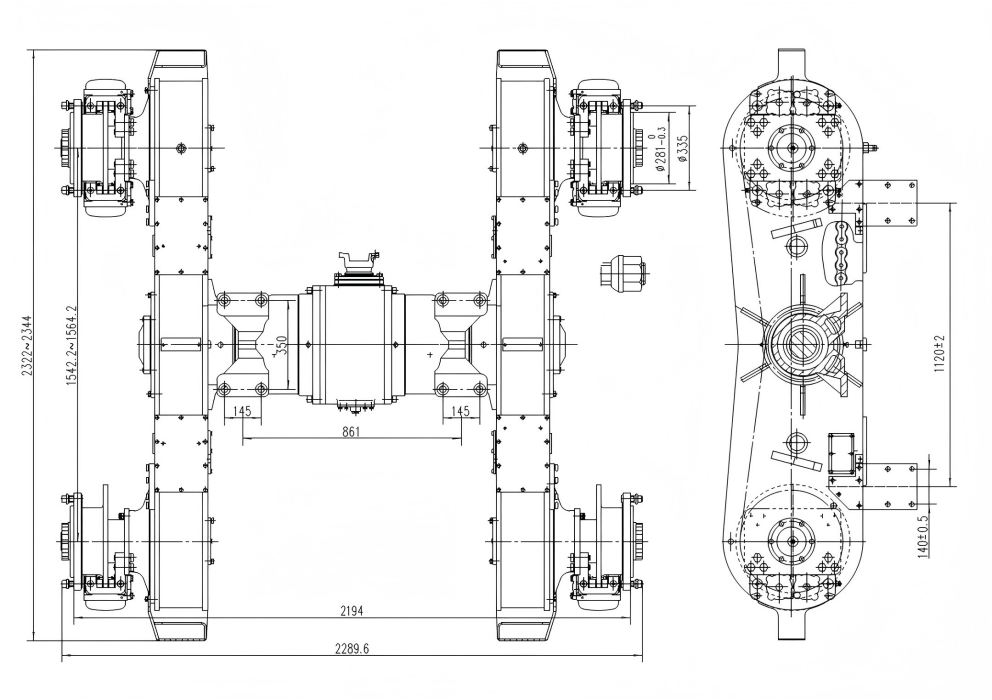

Connection size diagram：

Product technical parameters table：

Why choose Shandong Lutong PY180 grader drive axle?

In terms of international cooperation, we always adhere to the principle of “quality first, customer first, efficient supply and win-win development”, focusing on meeting the basic requirements of customers around the world in terms of drive axle adaptability, quality stability, supply efficiency and after-sales support.

• 1. Reliable quality meeting international standards

We strictly adhere to the ISO9001 quality management system, and all grader drive axles undergo rigorous quality testing before leaving the factory. The drive axle body is made of high-strength cast steel, which has exceptional impact resistance and deformation resistance, and can withstand long-term intensive use in harsh environments. Main components such as transmission gears and bearings are made by world famous brands to ensure stable power transmission and long service life.

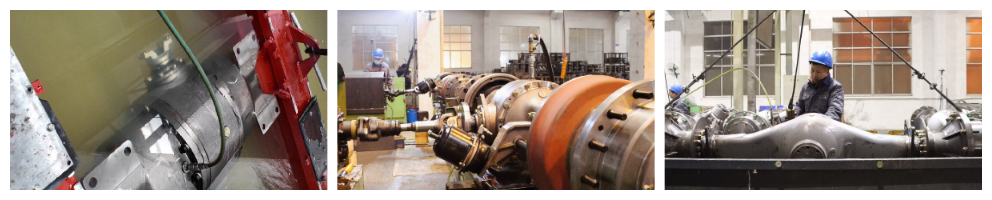

Equipped with high-precision testing equipment, each drive axle undergoes full performance testing, including key indicators such as power transmission efficiency, load capacity, sealing and braking reliability, to ensure that the products meet international industry standards and can be directly assembled and used upon arrival.

• 2. Efficient operation and outstanding operating costs

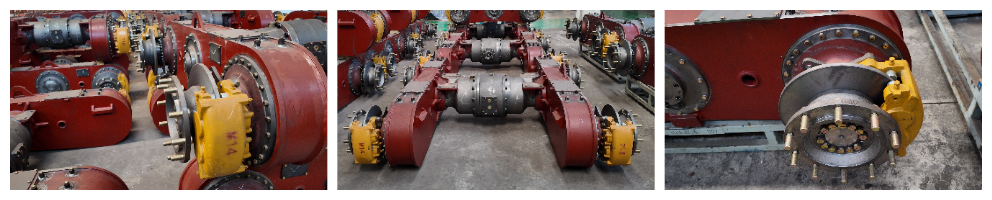

Adopting professional three-speed deceleration transmission, clear transmission logic and coordinated power transmission can effectively reduce power loss, ensure stable and reliable operation of the drive axle, adapt to the needs of 160~200 horsepower graders, standard equipment with hydraulic clamping disc brake system and non-rotating system - limited slip differential, using advanced heavy-duty roller chain drive design, the chain material has high strength, wear resistance and excellent tensile strength, and can withstand the force of long-term heavy-duty operation on 160~200 horsepower graders.Whether it is light-load leveling or heavy-duty work, the power distribution can be achieved evenly, power fluctuations can be avoided affecting the design accuracy, and the grader's operating stability can be greatly improved.

The innovative use of balanced box structure can effectively optimize the force distribution on the grader machine, accurately control the swing amplitude of the fuselage, greatly improve the flatness and consistency of the grader scraper during operation, reduce errors in road surface leveling, help customers improve the quality of engineering construction, reduce the cost of finalization at a later stage, and adapt to various construction scenarios with high flatness requirements.

• 3. Flexible customization to suit different needs

We take full account of the differences in operating conditions and customer support needs in different regions of the world and provide customized services.Depending on the customer's motor grader model, power parameters, local climatic conditions (high temperature, cold, high dust) and design requirements, the drive axle structure size, gear ratio, bearing parameters and other key parameters can be customized to precisely meet the maintenance needs of various types of motor graders.

A professional R&D team provides customized solutions, from requirements communication, program development, sample production and mass production, guiding throughout the entire process to ensure that the drive axle perfectly matches the customer's grader model without additional modifications, saving customers time and assembly costs.

• 4. Stable production capacity and efficient international supply

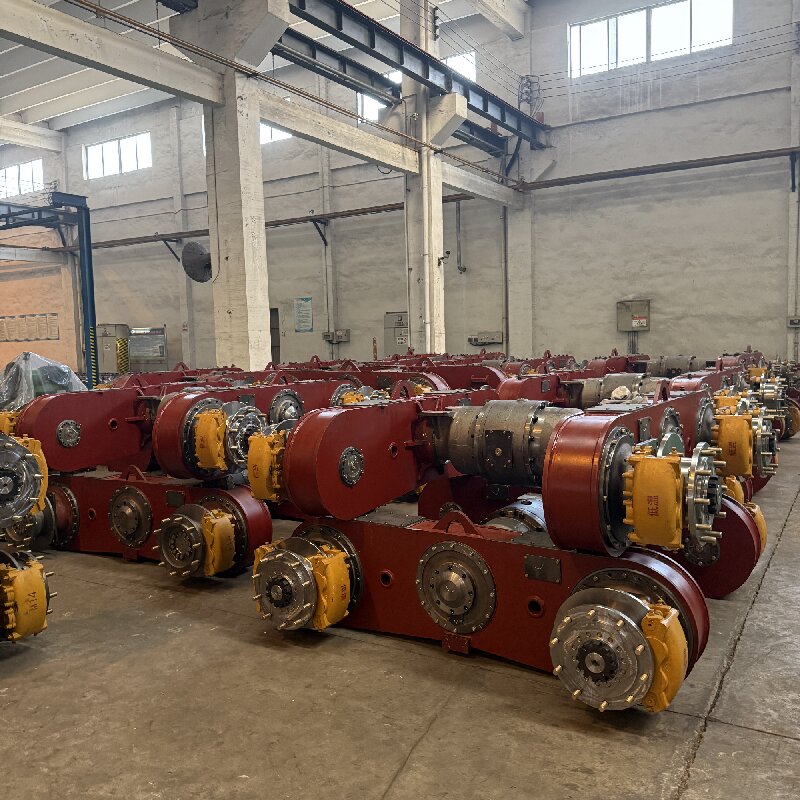

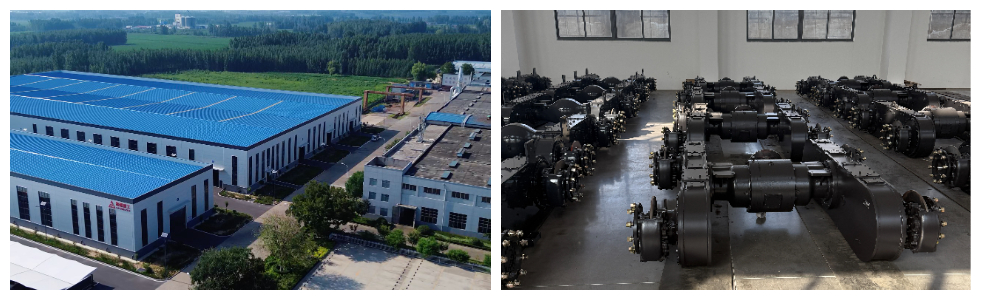

We have an exclusive production base for grader drive axles with an annual production capacity of 8000 sets.The intelligent production line implements automated operations, which not only ensures product uniformity, but also improves production efficiency and can effectively meet the bulk purchasing needs of customers around the world.

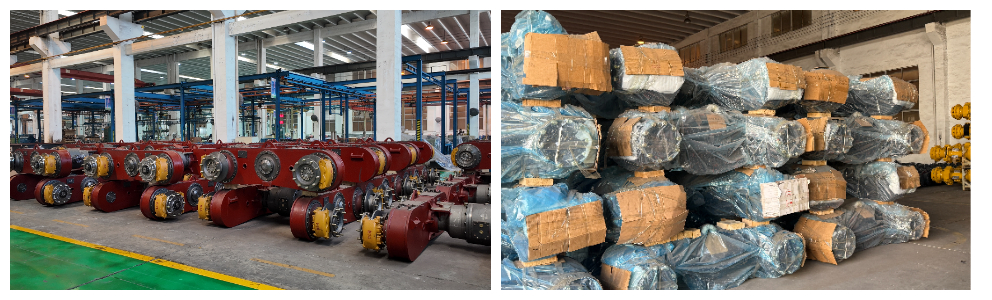

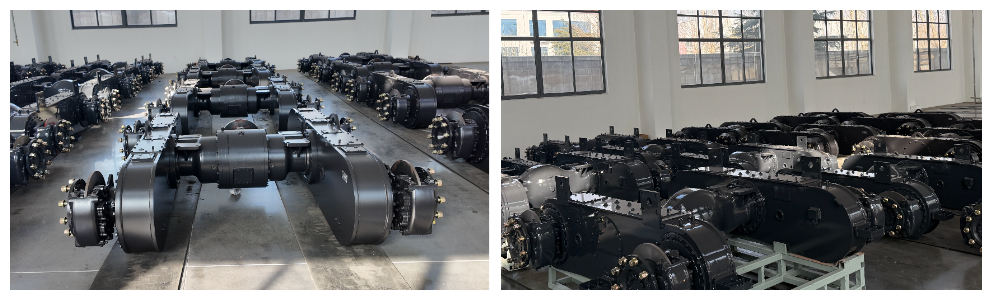

We establish long-term cooperation with a number of well-known international logistics companies around the world and can tailor cost-effective transport solutions in accordance with the customer’s region. International delivery cycle is 3-5 days shorter than the industry average, ensuring timely delivery of goods; Regular models are in stock and delivery can be made quickly after receiving the order.

• 5.Official cooperation with OEMs, recognized by industry

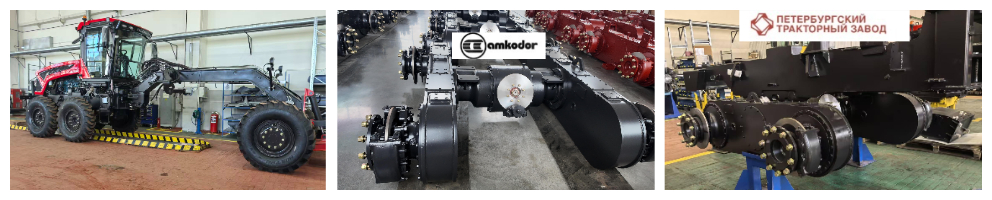

With excellent product quality and professional technical service, we have established strong strategic cooperative relationships with famous domestic equipment manufacturers such as Sany, Shantui, Lovol, Degong, Taizhong, Borreton, etc., and become the main supplier of grader drive axles. It is also exported to Russia to Amkodor and PTZ enterprises. In particular, the accident rate of grader drives exported by Amkodor to Russia is zero, and the quality of our products is fully tested in the harsh conditions and climate of Russia. Our products are widely used in various models of graders sold all over the world, which fully confirms the reliability and manufacturability of our products.

Our Commitment to Collaboration

Guided by the cooperation concept of "professionalism, honesty and win-win", Shandong Lutong provides comprehensive services to customers around the world, including product proposals, sample applications, customized solutions, after-sales service and technical support. We have a professional overseas service team that responds to customers' needs 24 hours a day and timely solves various problems such as drive axle assembly, operation and after-sales service.

Contact us

If you are looking for a reliable grader drive axle supplier, Shandong Lutong will be your best choice. We sincerely invite global distributors, construction companies and equipment manufacturers to cooperate with us to build a better future for the construction machinery industry.
