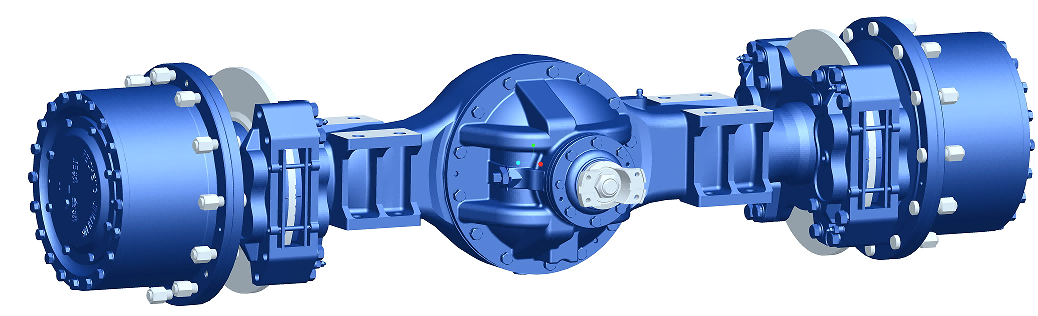

Here is a 26-ton road roller
1.Gleason bevel gears in the main gearbox ensure high efficiency and low noise transmission.
2.NGW planetary reducers offer a compact design with optimized gear arrangement.
3.Cast steel axle housings provide high rigidity and load capacity, compatible with various connection standards.
4.Disc brakes with calipers provide reliable braking with high torque.
5.Mainly used on 23 - 26-ton road rollers.
Introduction:
This 26-ton road roller is designed for 26-ton vibrating road rollers and uses a two-stage gear transmission.The axle body is made of cast steel.In the primary reduction system, Gleason's spiral-bevel gear technology is used, while in the transmission on the wheel side, a planetary reduction mechanism of the NGW type is applied.The working braking system is equipped with disc brakes with calipers for safety during parking.

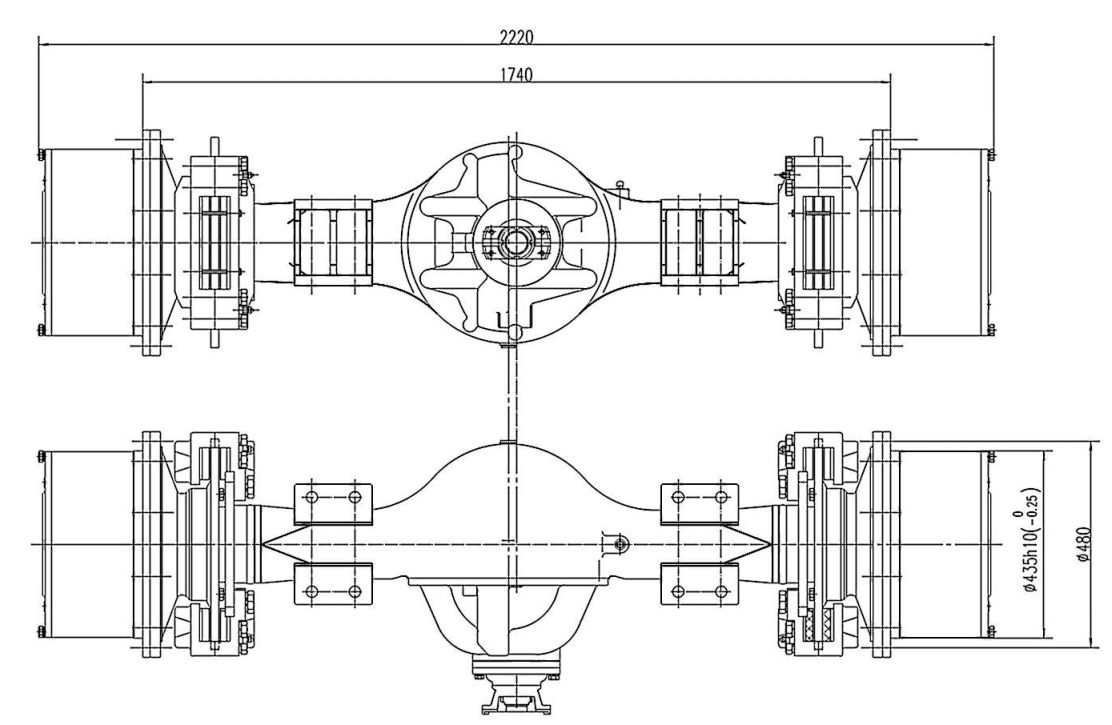

Main Technical Parameters:
Overall overall gear ratio |
21.58 |
Maximum input torque |
5000 N.m |
Load on one bridge |
26000Kg. |
Brake Oil Pressure |
10MPa |
Braking torque |
11000N.m |
Requirements for oil for the drive axle (API classification) |
GL-5: transmission oil 85W/90 (use at temperatures above -12 ° C) GL-5: transmission oil 80W/90 (use at temperatures above -26°C) |
Brake fluid requirements |
Synthetic Brake Fluid DOT3 or 719, mixing is not allowed! |
