Description of the composition and structure of the drive axle of a loading and hauling machine

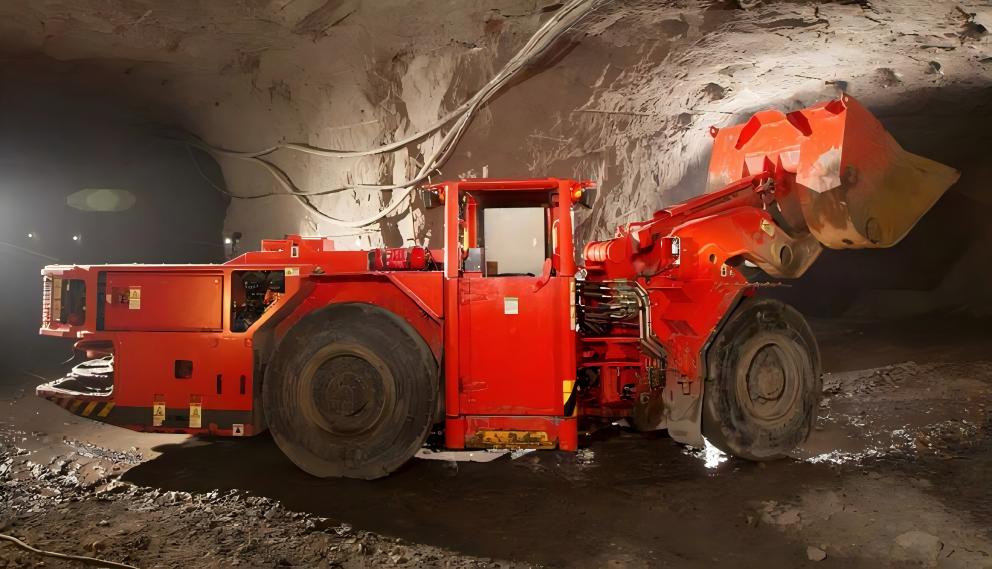

The loading and delivery machine is a specialized equipment designed specifically for underground mining and transportation, which is a self-propelled transport vehicle that combines the functions of loading, transportation and unloading. In the equipment of the underground loading and delivery machine, the leading bridge is an extremely important component, since movement, loading and other functions of the machine are impossible without it.

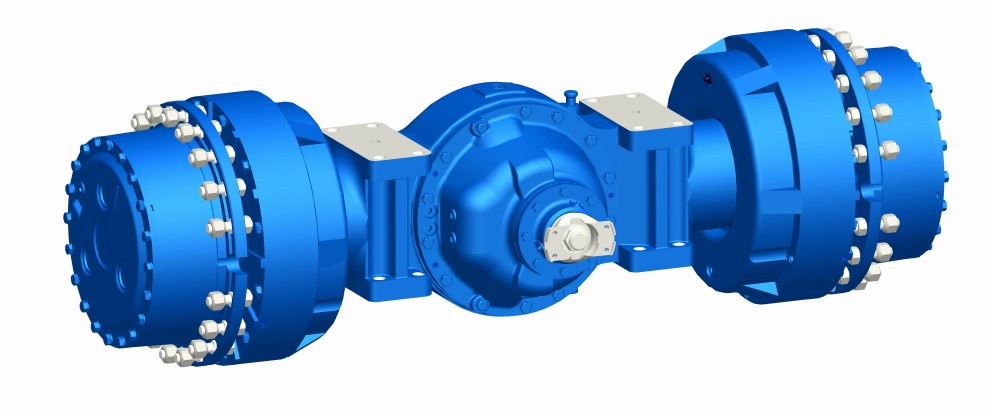

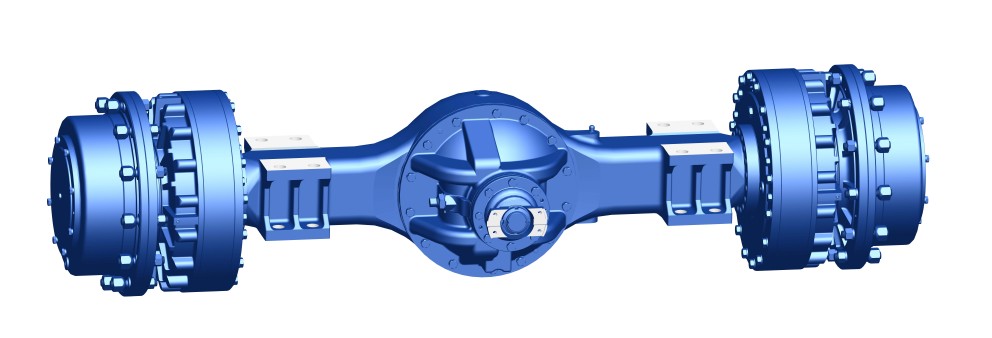

Typically, the leading bridge consists of the main transmission, differential, wheel gear and the crankcase of the leading bridge. It performs functions such as an increase in torque, a decrease in speed and a change in the direction of transmission of the torque. To ensure the high performance of the leading device of the underground loading and delivery machine, most of the models are equipped with a drive system that includes an anti-circus differential, a completely closed wet multi-disc brake and wear-resistant smooth tires.

The use of the anti-operating differential in the leading bridge of the loading and delivery machine is due to its ability to automatically distribute the torque depending on the conditions of the road surface. This improves the cross -country ability, prevents wheel slipping and reduces tire wear.

A completely closed wet multi -disc brake provides stable and effective braking, easy to maintain. The use of such a brake mechanism prevents the ingress of dirt and sand, and thanks to the wet multi -disc structure, it does not require adjustment of the clearance between the disks and allows you to transfer the torque when slipping. This makes it ideal for braking with prolonged descents with cargo.

Currently, the components of the leading bridge of the underground loading and delivery machine most often consist of the aforementioned devices, which guarantees high performance of the drive mechanism and reduces the likelihood of breakdowns.

Shandong Lutong Heavy Machinery Co., Ltd. It has an experienced and highly qualified team specializing in the production and development of bridges for mountain equipment. Since the foundation, the company has always set the interests of customers in the first place, continuously implementing and adapting advanced design ideas and production technologies from domestic and foreign colleagues. The main production processes have already been automated and computerized, and the company actively develops new products with low cost and high performance that meet the needs of customers. We invite all those interested in cooperation and consultations.
